TFT028F044

TFT 2.8″ 240*320 TN QVGA Driver IC ST7789V3 18 Pin SPI

Keyword

Essential details:

● Module No.: TFT028F044

● size: 2.8 inch TN

● Resolution: 240×320

● Driver IC: ST7789V3

● Outline Dimension: 50(H)x69.2(V)x2.45(D) mm

● Active Area: 43.2×57.6 mm

● Interface: 18 PIN FPC, SPI Interface

● Viewing Direction: 12 O’clck

● Brightness: 300 Cd/m (Typ.)

● Application: DIY Project, Gaming device, Medical devices, GPS device

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Product Name	TFT028F044
Display Mode	2.8 inch Resolution 240*320 TN, 262K color transmissive, normally white
Driver IC	ST7789V3
Viewing Direction	12 o’clock
Contrast ratio	TBD-
Luminance	300 cd/m2 typ.
Operating Temperature:	-20°- +70°
Storage Temperature:	-30°- +80°
Outline dimension(mm)	50(H)x69.2(V)x2.45(D) mm
AA area(mm)	43.2×57.6 mm
Interface Type	18 pin FPC SPI Interface

The TFT028F044 TN TFT LCD display is an advanced and compact display solution that offers a high-quality and clear viewing experience.

This display boasts an impressive resolution of 240×320 pixels, which ensures that all images, videos, and texts are rendered with great clarity and sharpness.

The display is powered by the ST7789V3 driver IC, which ensures enhanced performance and superior visual quality.

The display features an interface type of 18 PIN FPC, SPI Interface, which ensures compatibility with various systems and devices.

Whether you’re using it for a portable device, automotive dashboard display, or educational equipment, the TFT028F044 TN TFT LCD display offers high-quality visuals and superior readability.

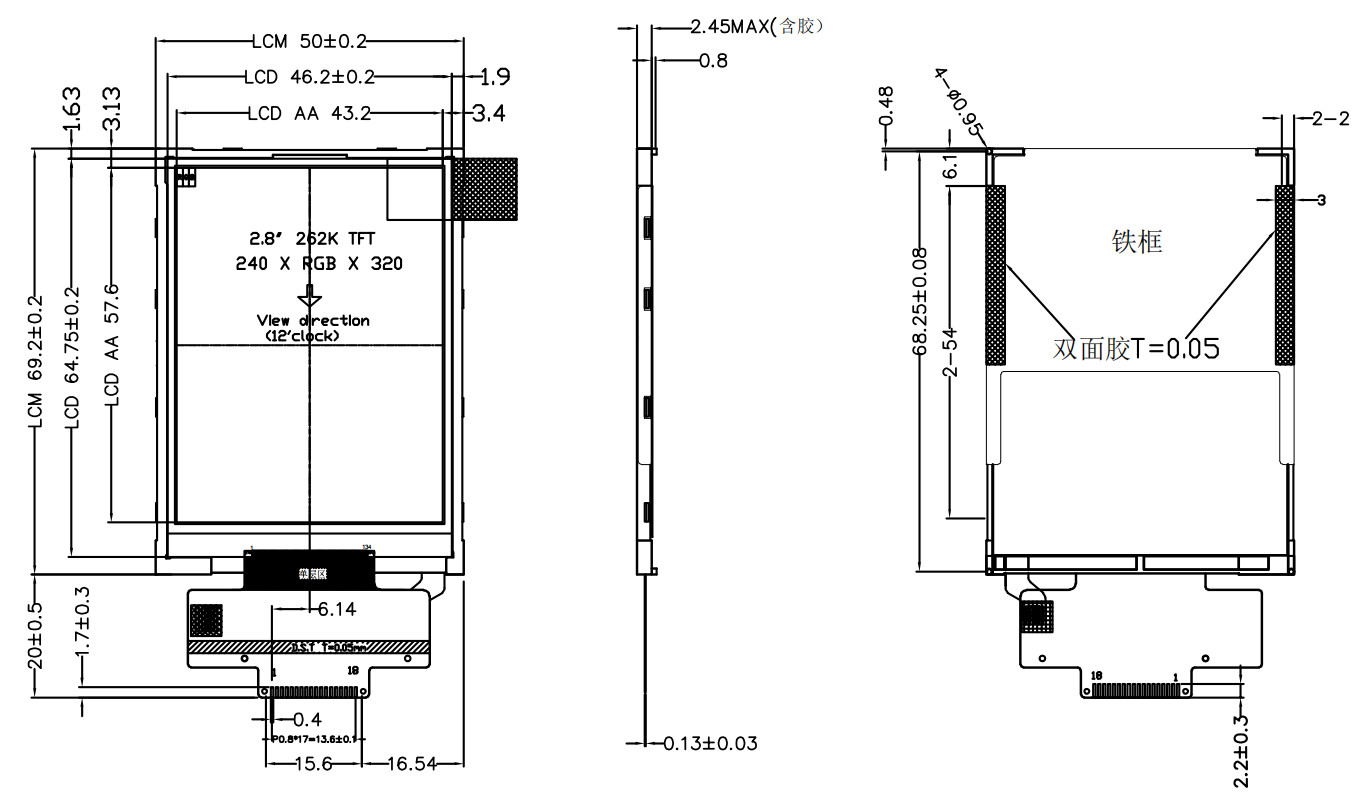

Mechanical Diagram

TFT 2.8 240320 TN QVGA Driver IC ST7789V3 18 Pin SPI (2)

Technical Requirements

1. With * size is the key size, With () size for reference size

2. LCD cutting section collapse edge 1 / 3 (single layer LCD thickness)

3. plane warping 0.35mm

4. comply with RoHS instruction

5. Operating temperature: -20℃ ~70℃

6. Storage temperature: -30℃ ~80℃

7. TPV. A window 0.4 mm larger than LCD A. A foam window than LCD A. A 0.3mm
