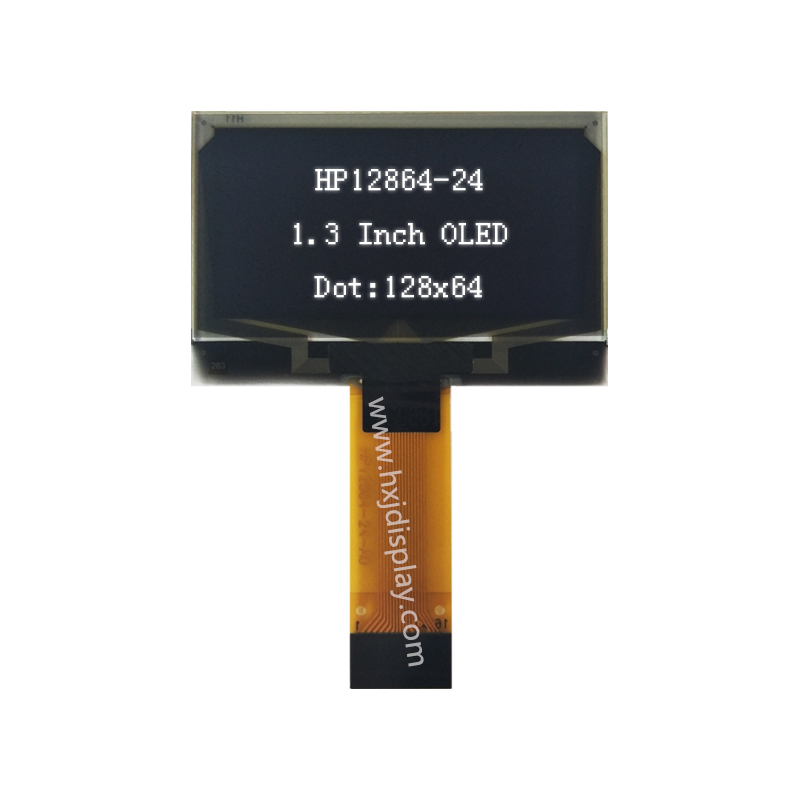

HP12864-24

Small 1.3″ OLED 128×64 micro lcd display

Keyword

Product Description

Image reversion: up/down and left/right

Applications: consumer electronics, automotive, telecoms and data transfer, medical instruments, security management, signs and display,point of sale, energy control, amusement and gambling machines, white goods,mobile phones and PDAS.

Company advantages:

Small MOQ accepted

Competitive price and short lead-time

ISO,RoHS and CE certificated factory supplied

Quality control: Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment.

We will test goods strictly according to our standard inspection before shipment.

If exceed this standard,clients can ask for returning and get new.

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Module No.:	HP12864-24-KHWG16P130
Structure:	COG
Screen Size:	1.3 inch
Number of Dots:	128 x 64
Color:	Monochrome (White)
Module Size:	34.5 x 23 x 1.427 mm
Viewing Area:	31.42 x 16.7 mm
Active Area:	29.42 x 14.7 mm
Driver IC:	SH1106G
Interface:
Connector:	FPC
Pin Number:	16
Operating Temperature:	-40～+70℃
Storage Temperature:	-40～+85℃

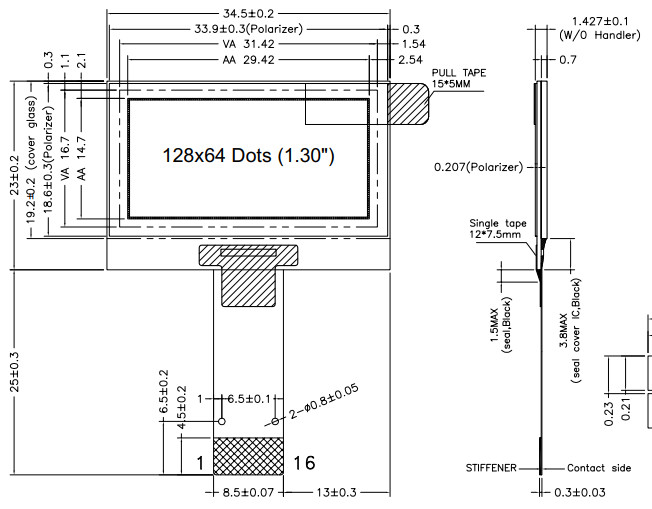

Mechanical Diagram

Small 1.3 OLED 128x64 micro lcd display (2)

Interface Pin Description

Small 1.3 OLED 128x64 micro lcd display (3)

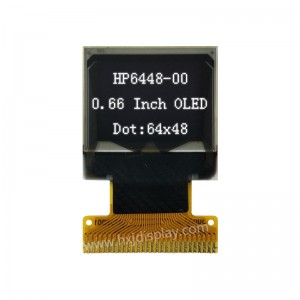

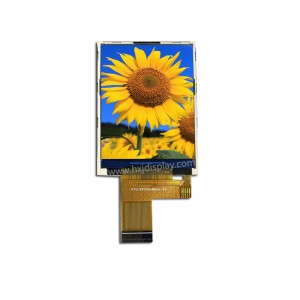

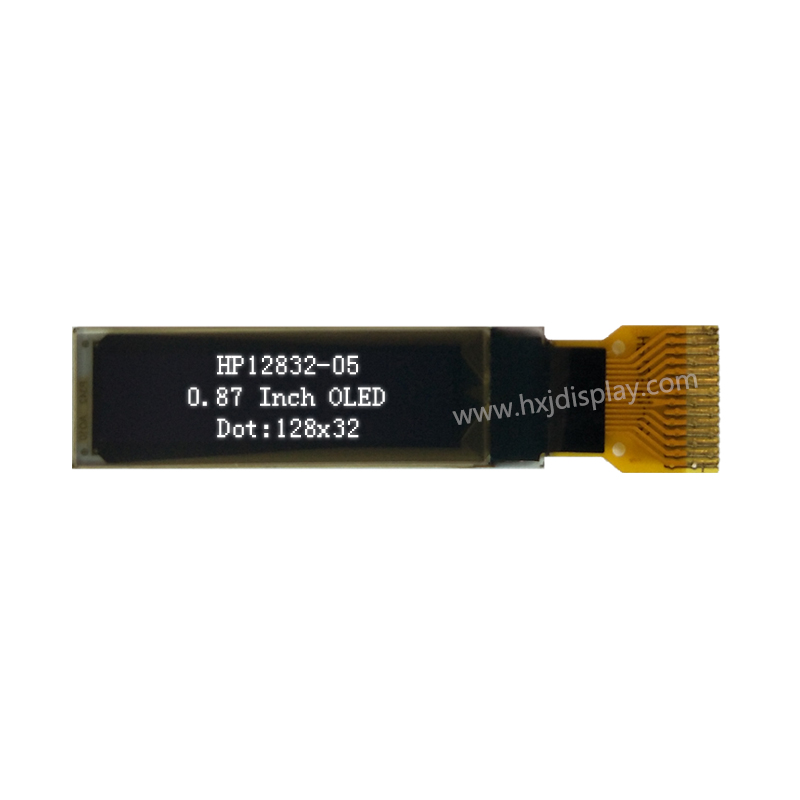

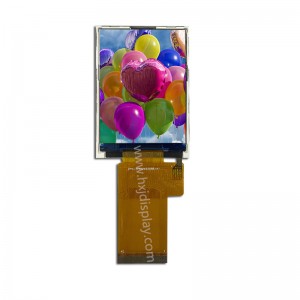

More Product
