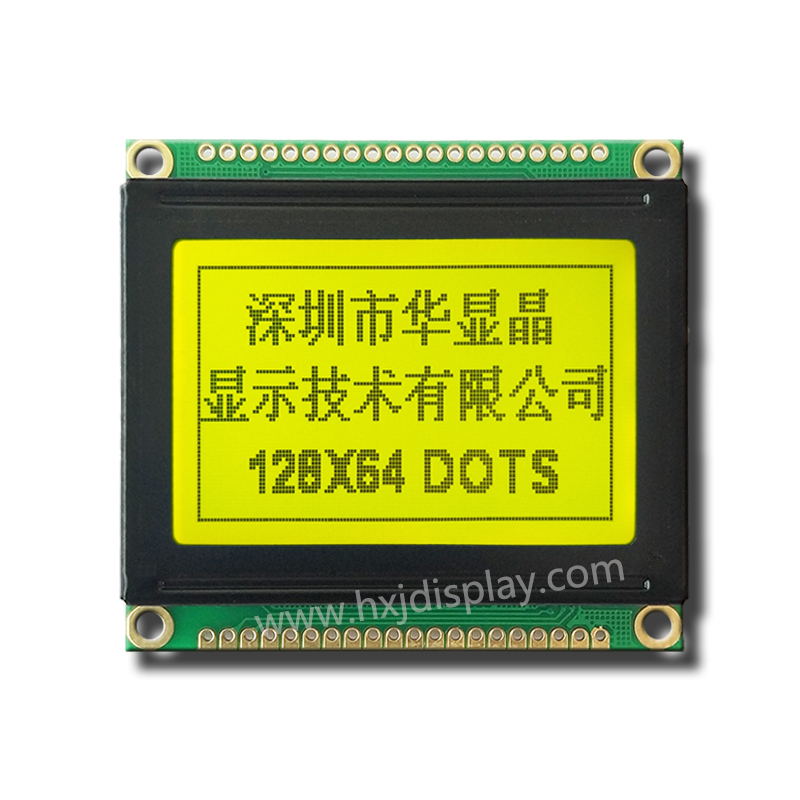

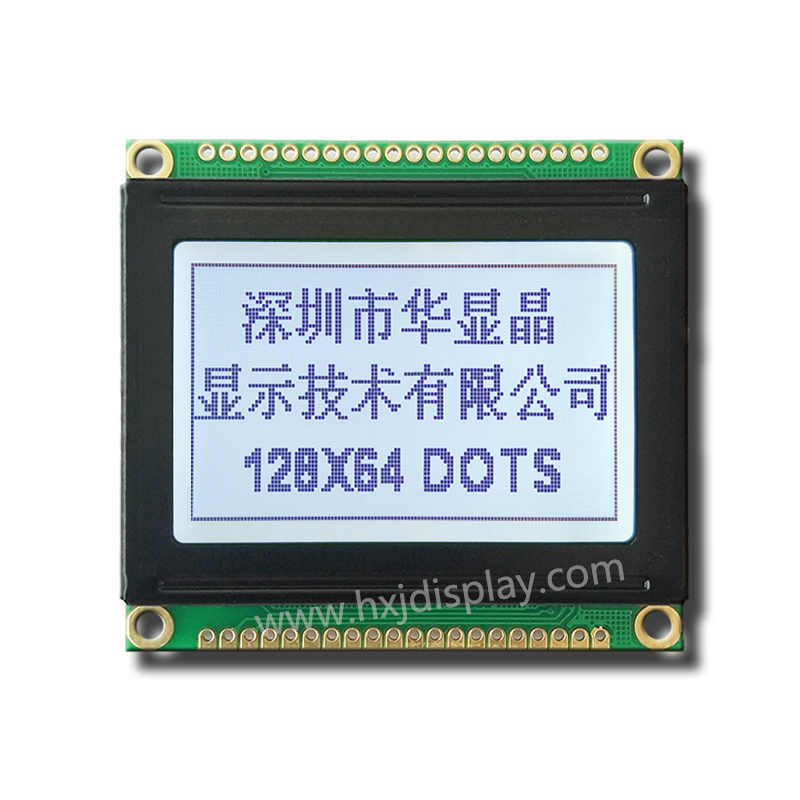

Module No.: |
HSM12864I |
Display Type: |
128 x 64 Dots |
Encapsulation: |
COB |

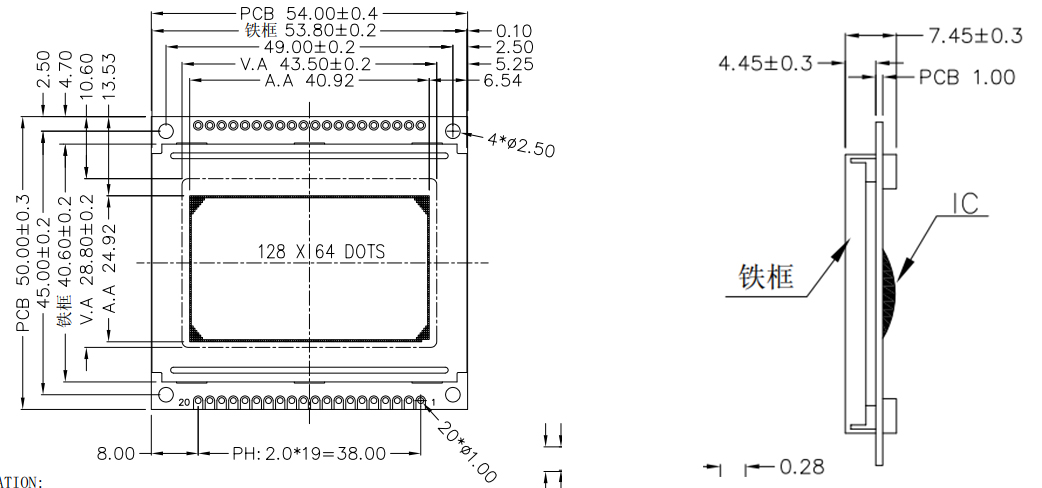

Outline Size: |
54 x 50 x 7.7 mm |
Viewing Area: |
43.5 x 28.8 mm |
Screen Color: |
Yellow-Green/Blue/Gray |
Backlight Color: |
Yellow-Green/Green/White/Blue/Orange/Red |
Backlight:: |
Side LED |
Driver IC: |
AIP31108 |
Connector: |
Conductive Silicon Rubber |
Pin Number: |
20 |
Interface: |
8-bit MPU interface |
Driver Condition: |
1/64 Duty,1/9 Bias |
Viewing Direction: |
6 O’Clock |
Operating Voltage: |
5V/3.3V |
Operating Temperature: |
-20~+70℃ |
Storage Temperature: |
-30~+80℃ |
No. |
Symbol |
Function |
1 | VSS |
Ground (0V) |
2 | VDD |
Supply Voltage for Logic (+5V ) |
3 | VO |
Contrast Adjustment |
4 | RS |
Data/Instruction Select |
5 | R/W |
Read/Write Select |
6 | E |
Enable Signal |
7–14 | DB0—DB7 |
Data Bus |
15 | CS1 |
Chip Select U1 |
16 | CS2 |
Chip Select U2 |
17 | RST |
Reset signal , active “L” |
18 | VOUT |
Output voltage for LCD driving |
19 | LED_A |
LED Power Supply + (5V) |
20 | LED_K |
LED Power Supply -(0V) |
