OLED
HXJ LCD have been widely applied in various industries, such as financial POS machine, industrial automation,medical equipment and medical beauty equipment, communications, home appliances, smart wearable device, electronics instrumentation, energy, electrical power, transportation and many other applications.| Picture | Model No. | Display Format | Display Format | Model No. | Size(inch) | Outline Dimension(mm) | Viewing Area(mm) | Active Area(mm) | IC | Interface | Color |
 |
HP12864-01 | ||||||||||
 |
OLED 0.91 inch | ||||||||||
 |

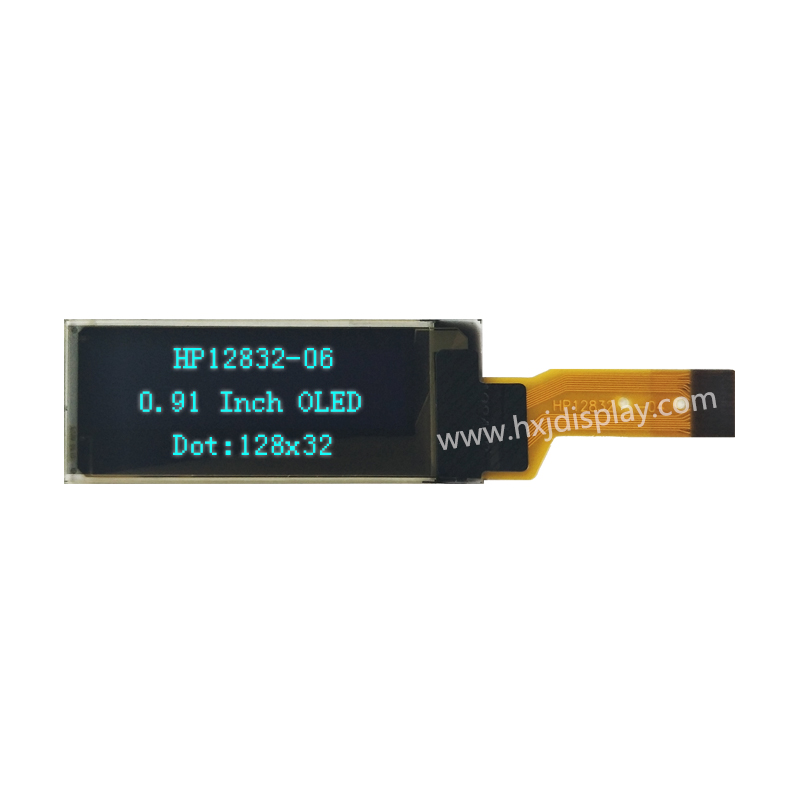

HP12832-06 | ||||||||||
 |
HP12832-05 | ||||||||||
 |

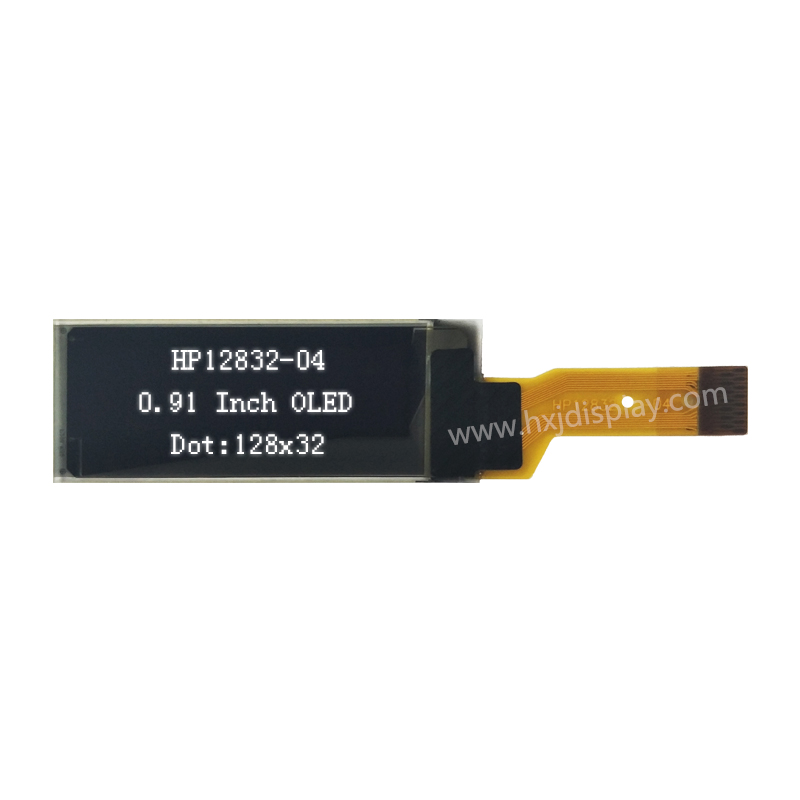

HP12832-04 | ||||||||||
 |
HP12832-03 | ||||||||||
 |

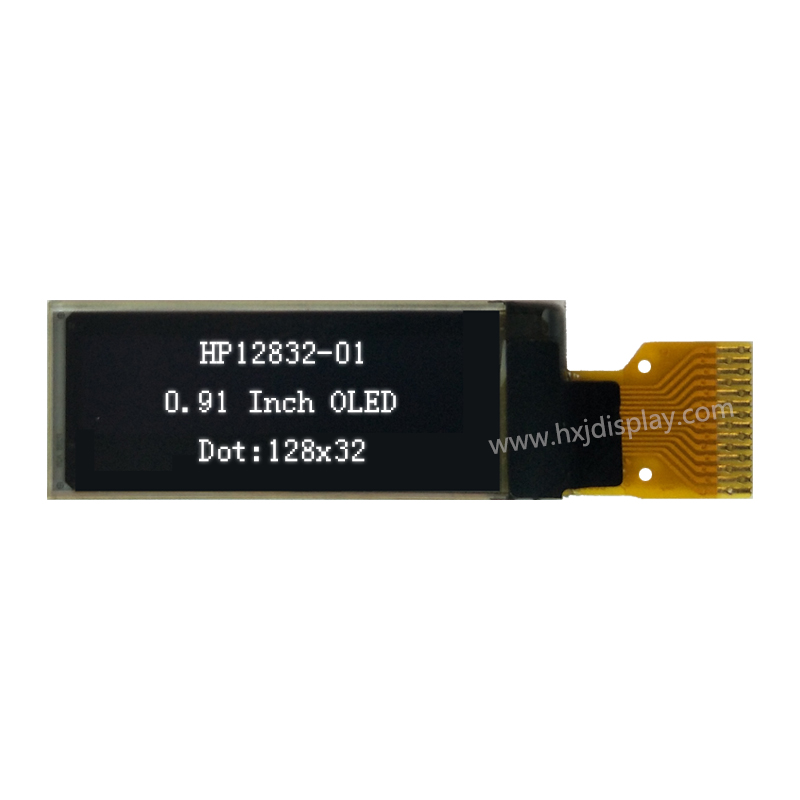

HP12832-01 | ||||||||||
 |
HP12832-00 | 128 x 32 | HP12832-00-TSWG15P087 | 0.87 inch | 29.00 x 8.7 x 1.22 mm | 22.856 x 6.824 mm | 21.356 x 5.324 mm | SSD1316Z | 4-wire SPI | Monochrome (White) | |
 |

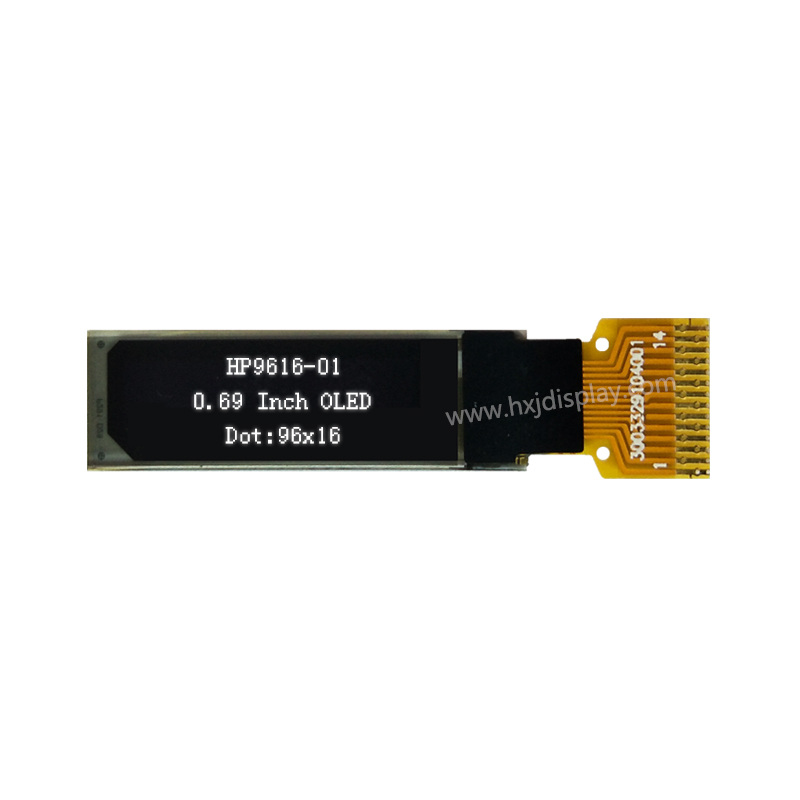

HP9616-01 | 96 x 16 | HP9616-01-TSWG14P069 | 0.69 inch | 26.3 x 8 x 1.227 mm | 18.86 x 4.78mm | 17.26 x 3.18 mm | SSD1306BZ | I2C | Monochrome (White) | |
 |
HP6448-00 | 64 x 48 | HP6448-00-TSWG28P066 | 0.66 inch | 18.46 x 18.1 x 1.21 mm | 15.42 x 12.06 mm | 13.42 x 10.06 mm | SSD1306BZ | 6800/8080 Interface/I2C/ 4-wire SPI | Monochrome (White) |
