HP12832-01

OLED 0.91″ LCD White 128×32

Keyword

Product Description

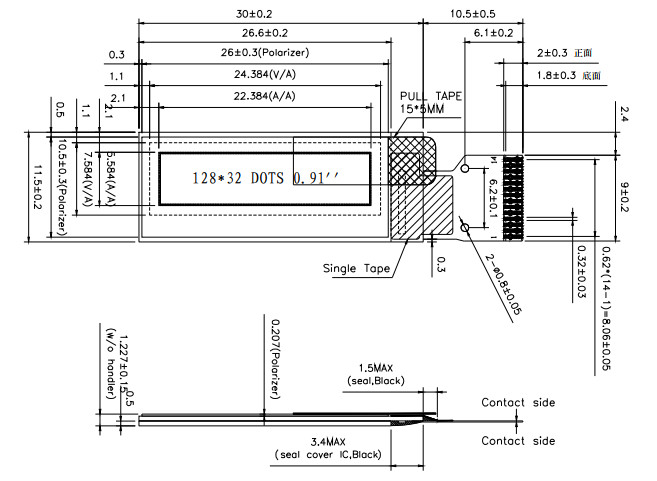

Mechanical Diagram
Production Advantages

Product Description

Module No.:	HP12832-01-TSWG14P091
Structure:	COG
Screen Size:	0.91 inch
Number of Dots:	128 x 32
Color:	Monochrome (White)
Module Size:	30.0 x 11.50 x 1.227 mm
Viewing Area:	24.384 x 7.584 mm
Active Area:	22.384 x 5.584 mm
Driver IC:	SSD1306BZ
Interface:	4-wire SPI
Connector:	FPC
Pin Number:	14
Operating Temperature:	-40～+70℃
Storage Temperature:	-40～+85℃

Interface Pin Description

PIN	SYMBOL	PIN	SYMBOL	PIN	SYMBOL	PIN	SYMBOL
1	C2P	5	VDDB	9	RES#	13	VCOMH
2	C2N	6	NS	10	SCL	14	VCC
3	C1P	7	VSS	11	SDA
4	C1N	8	VDD	12	IREF
