OLED 0.91 inch

Keyword

Product Description

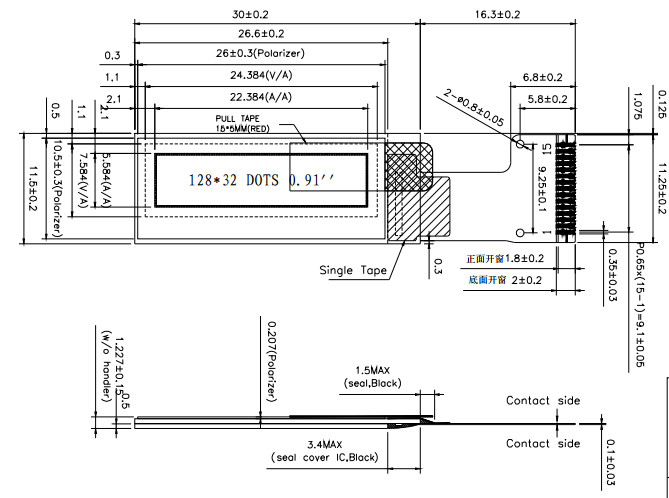

Mechanical Diagram
Production Advantages

Product Description

Module No.:	HP12832-07-TSBG15P091
Structure:	COG
Screen Size:	0.91 inch
Number of Dots:	128 x 32
Color:	Monochrome (Blue)
Module Size:	30.0 x 11.50 x 1.227 mm
Viewing Area:	24.384 x 7.584 mm
Active Area:	22.384 x 5.584 mm
Driver IC:	SSD1306BZ
Interface:	4-wire SPI
Connector:	FPC
Pin Number:	15
Operating Temperature:	-40～+70℃
Storage Temperature:	-40～+85℃

Interface Pin Description

PIN	SYMBOL	PIN	SYMBOL	PIN	SYMBOL	PIN	SYMBOL
1	C2P	5	VBAT	9	RES#	13	IREF
2	C2N	6	VSS	10	D/C#	14	VCOMH
3	C1P	7	VDD	11	SCLK	15	VCC
4	C1N	8	CS#	12	SDIN

Mechanical Diagram

Module No.:	HSM0801B
Display Type:	8 Characters x 1 Line
Encapsulation:	COB
Outline Size:	84 x 44 x13.8 mm
Viewing Area:	62 x 17.8 mm
Screen Color:	Yellow-Green/Blue/Gray
Backlight Color:	Yellow-Green/Green/White/Blue/Orange/Red
Backlight::	Side LED
Driver IC:	AIP31066
Connector:	Conductive Silicon Rubber
Pin Number:	16
Interface:	8-bit MPU interface
Driver Condition:	1/8 Duty,1/4 Bias
Viewing Direction:	6 O’Clock
Operating Voltage:	5V/3.3V
Operating Temperature:	-20～+70℃
Storage Temperature:	-30～+80℃
