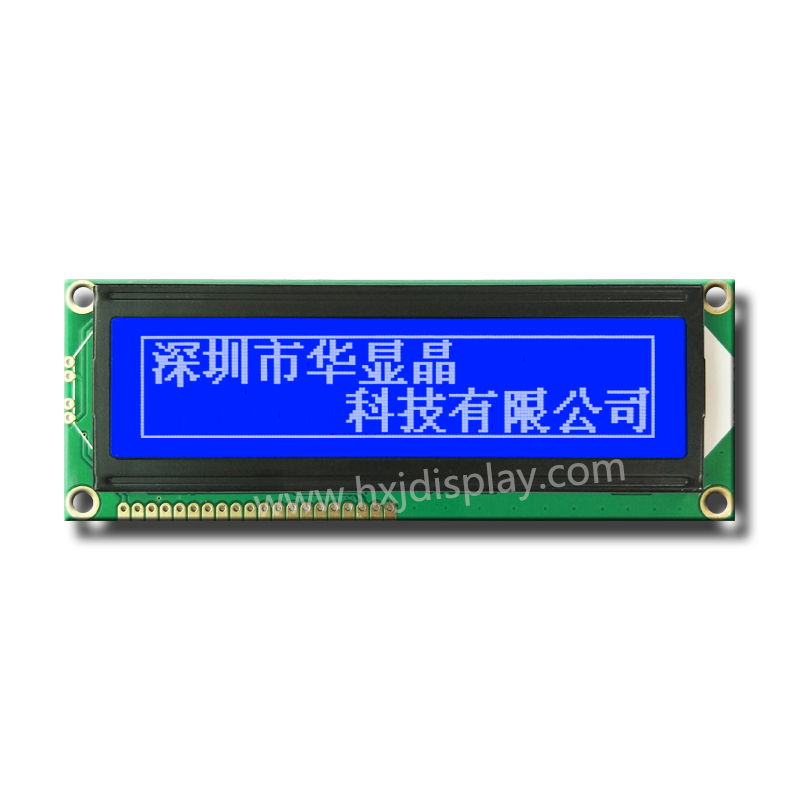

HSM16032B

Monochrome lcd module 160×32

Keyword

Graphic LCD 160 x 32 (dots)

● STN-YG / STN-Blue / STN-Gray /FSTN-Gray

● +3.3V / +5.0V power supply

● Viewing Direction: 6H / 12H

● Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Module No.:	HSM16032B
Display Type:	160 x 32 Dots
Encapsulation:	COB
Outline Size:	122 x 44 x 13.3 mm
Viewing Area:	99 x 24 mm
Screen Color:	Yellow-Green/Blue/Gray
Backlight Color:	Yellow-Green/Green/White/Blue/Orange/Red
Backlight::	Side LED
Driver IC:	AIP31020
Connector:	Conductive Silicon Rubber
Pin Number:	20
Interface:	8 BIT bus MPU interface
Driver Condition:	1/32 Duty,1/5 Bias
Viewing Direction:	6 O’Clock
Operating Voltage:	5V/3.3V
Operating Temperature:	-20～+70℃
Storage Temperature:	-30～+80℃

Interface Pin Description

Pin No.	Symbol	Function
1	VSS	Ground (0V)
2	VDD	Power supply input for driver IC (+5V)
3	VO	LCD driver supply voltages, Contrast Adjust
4	RS	Register select input pin: RS = “H”: DB0 to DB7 are display dataRS = “L”: DB0 to DB7 are control data
5	RW	Read write control 0:write 1:read
6	E	IC Enable trigger
7–14	DB0~DB7	data bus data
15	PSB	Interface selection:0:serial mode 1:8/4-bits parallel bus mode
16	N.C	No used
17	/RES	Reset signal
18	VOUT	No used
19	LED+	BACKLIGHT+ （5V）
20	LED-	BACKLIGHT- （0V）

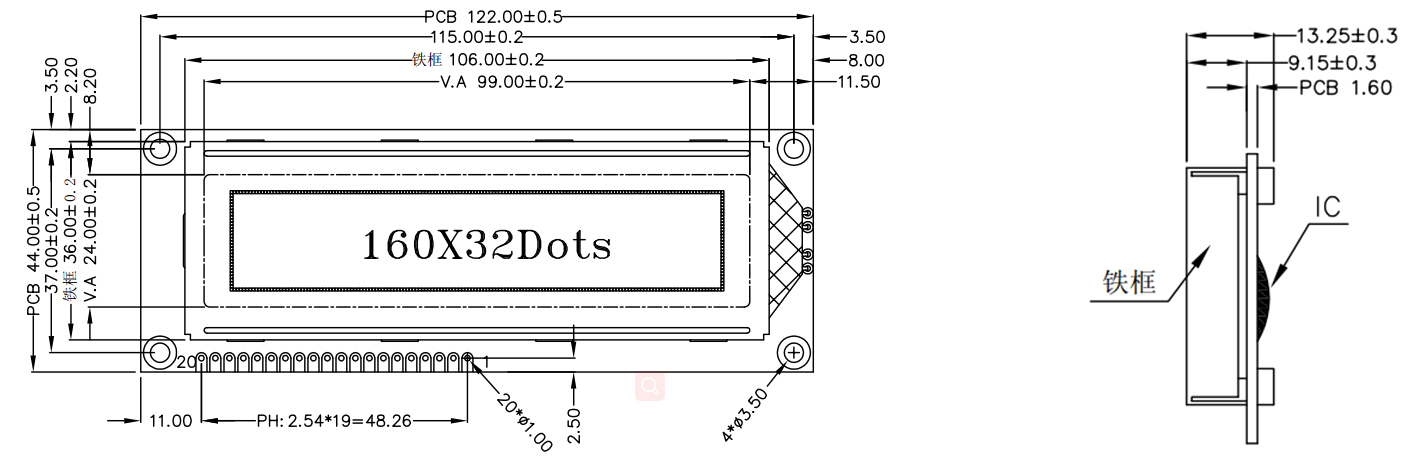

Mechanical Diagram

LCD Application

16x2 lcd module with top pin and bottom pin-01 (5)

● We supply Monochrome LCD including Character LCD,graphic LCD, Segment LCD,COG LCD and TFT,OLED and custom LCD solutions.

● We are 11 years ISO,RoHS & CE verified LCD manufacturer with complete LCD production lines.

● We support custom solution for the LCD part or the whole LCD.

FAQ

Q: Are you factory or trade company?

A: We are professional factory,which specializes in TN, HTN, STN, FSTN, DFSTN monochrome LCD,COG,TFT,OLED,LED backlight,LCD modules more than 10 years in Shenzhen! Our advanced full set equipment make sure good quality and competitive price!

Q: How can I get the samples?

A: Send inquiry → offer quotation → confirm quotation & pay tooling charge → provide drawing → confirm drawing → make tooling & samples → samples finished → delivery via express.

Q: How long can I expect to get the sample?

A: drawing: 2-3 days.

Sample time: 10-15 business days.

Q: Will you offer free sample for custom LCD?

A: Yes,we usually provide 5-8 pcs free samples,you just need to pay the tooling charge.

Q: Can you design the LCD in accordance with our demand?

A:Sure.We will give you the best tooling charge.

Q: How to place orders ?

A:If you confirm samples ok,please send us your purchase order by e-mail,then we will send you an invoice for deposit payment.We need to know the following information of your order.
1)Product information-quantity,part number.
2)Delivery time required.
3)Shipping information-company name,address,phone number,destination sea port.
4)Forwarder's contact details if you have any in China.

Q: How long of mass production?

A: 25-30 business days.It depends on order quantities and part number.

Production Advantages

1.High quality. Perfect quality management system, stable quality of raw materials, product quality rate of 98% or more
2.On-time delivery. Ensure that orders are delivered on time and in quantity
3.Full supply chain resources. High demand of raw materials, quality assurance of brand suppliers, perfect management system, ensuring the demand of raw material supply;
4.Constantly optimized manufacturing cost. High degree of automation of production line, comprehensively improve per capita work efficiency, stable product quality, and significantly reduce enterprise production and manufacturing costs; to achieve win-win and value-added mutual enjoyment with customers and employees.
