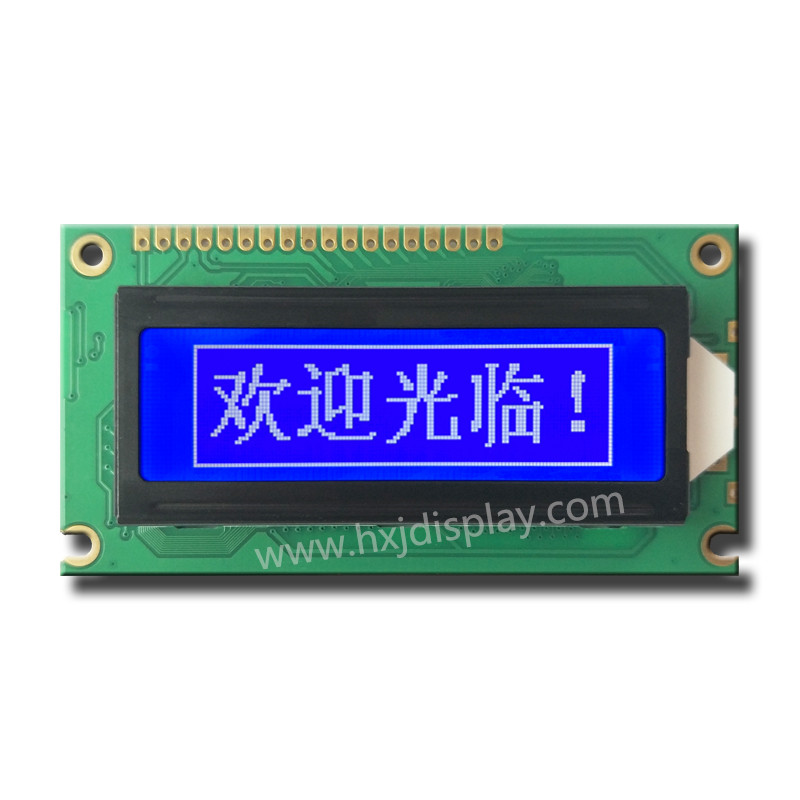

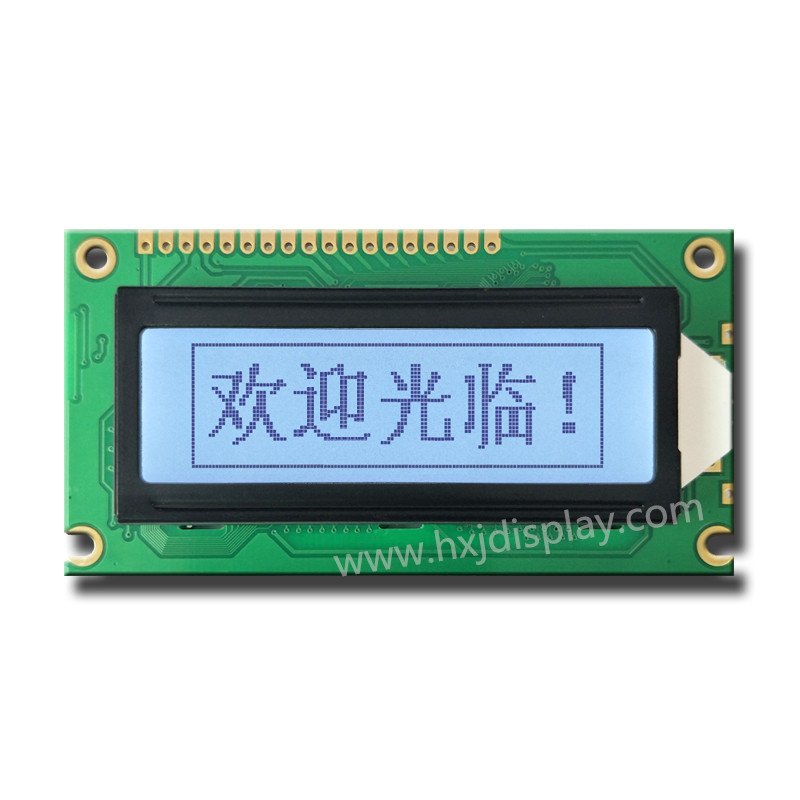

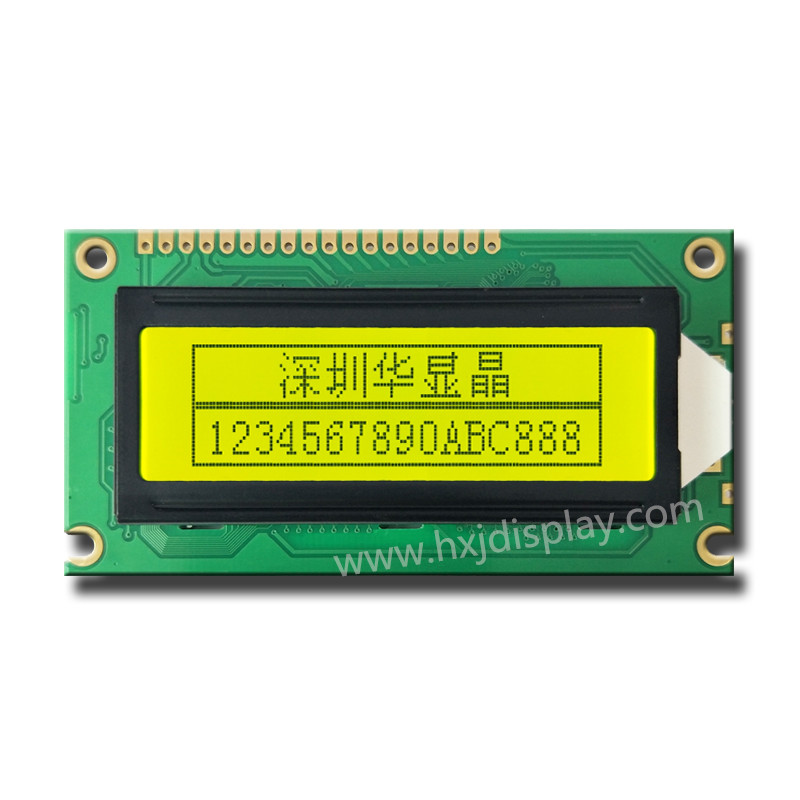

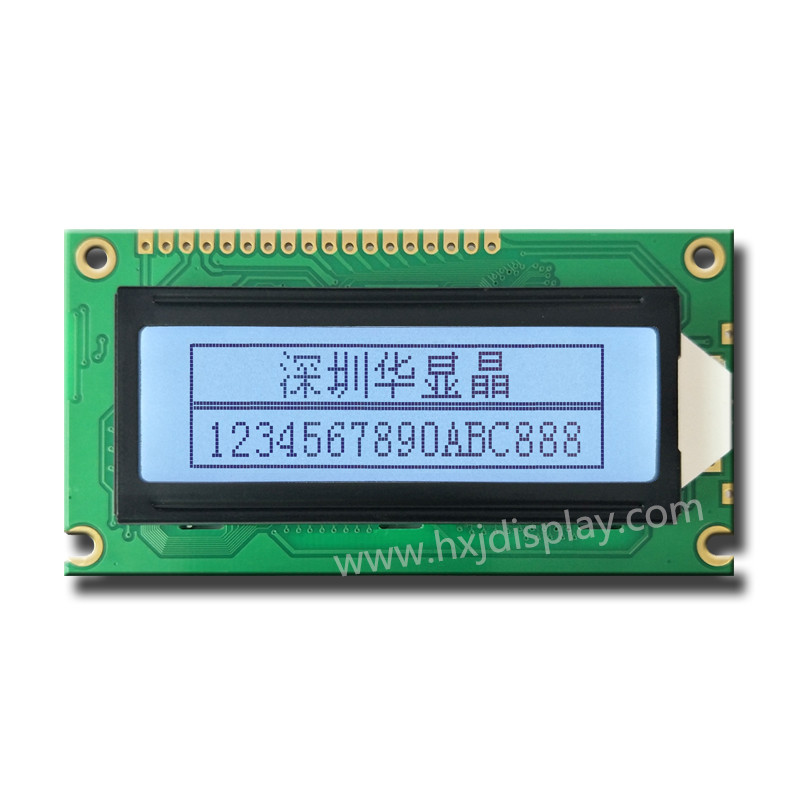

HSM12232B

monochrome 122×32 dot matrix graphic lcd module

Keyword

Graphic LCD 122 x 32 (dots)

● STN-YG / STN-Blue / STN-Gray /FSTN-Gray

● +3.3V / +5.0V power supply

● Viewing Direction: 6H / 12H

● Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

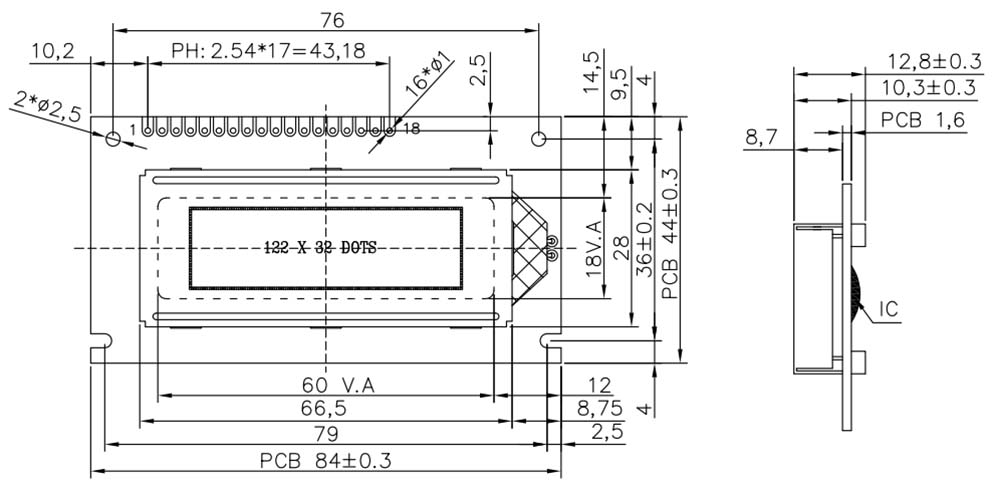

Mechanical Diagram

monochrome 122x32 dot matrix graphic lcd module-01 (7)

Module No.:	HSM12232B
Display Type:	122 x 32 Dots
Encapsulation:	COB
Outline Size:	84 x 44 x 12.8 mm
Viewing Area:	60 x 18 mm
Screen Color:	Yellow-Green/Blue/Gray
Backlight Color:	Yellow-Green/Green/White/Blue/Orange/Red
Backlight:	Side LED
Driver IC:	SED1520
Connector:	Conductive Silicon Rubber
Pin Number:	18
Interface:	8 BIT bus MPU interface
Driver Condition:	1/32 Duty,1/5 Bias
Viewing Direction:	6 O’Clock
Operating Voltage:	5V/3.3V
Operating Temperature:	-20～+70℃
Storage Temperature:	-30～+80℃

Interface Pin Description

Pin No.	Symbol	Function
1	VDD	Power supply input for driver IC (+5V)
2	VSS	Ground (0V)
3	VO
4	RST
5	E1
6	E2	LCD driver supply voltages,Contrast Adjust
7	RW	Reset signal
8	RS	Enable signal IC1(U1)
9-16	DB0~DB7	data bus for 8 bit interface
17	LED+	BACKLIGHT+ （5V）
18	LED-	BACKLIGHT- （0V）

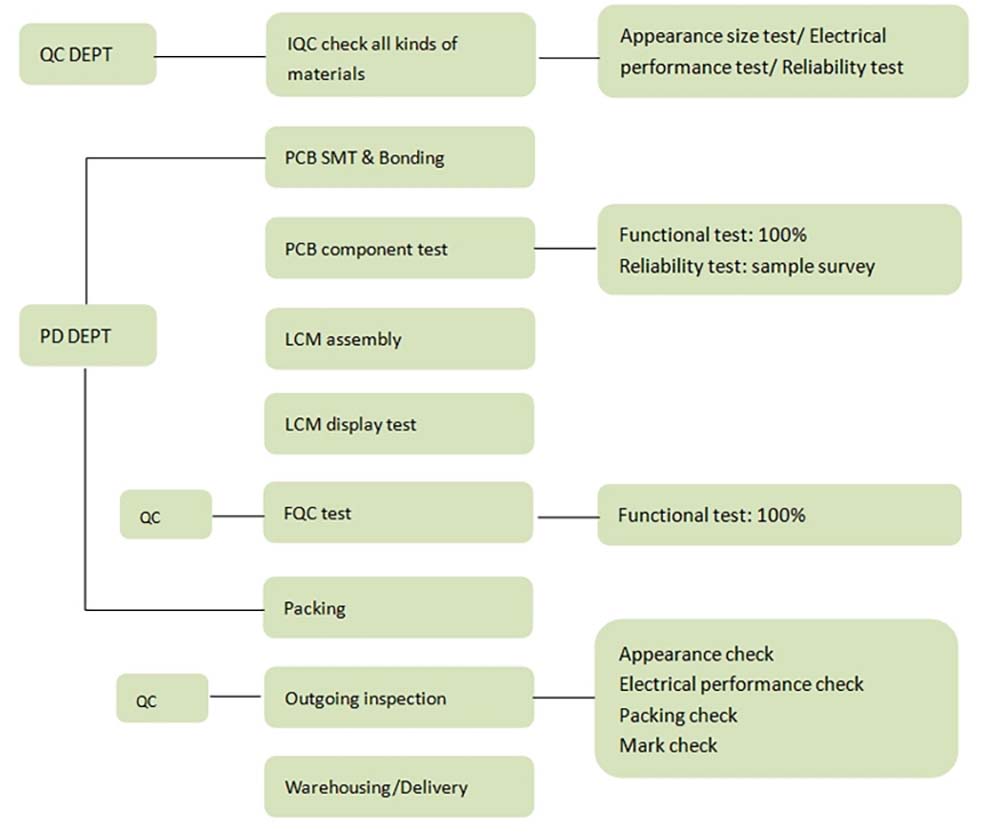

Production Flow

monochrome 122x32 dot matrix graphic lcd module-01 (8)

Why Choose Us

● Professional

Huaxianjing’s R&D engineers are well experienced,professional and focused.They are diligent in action,willing to communicate,specializing in thinking,and good at summarizing.

● Extreme Test
Every single new product has to go through extreme tests,run by our R&D team to achieve perfection and fulfill customers’ satisfaction.

● Advanced Management System
Full electronic management.

● Quality and Stability
1. Implementation of the International Quality System.
2 . Professional production control.
3. Complete testing equipment .
4 . ISO, RoHS and CE certificated

● Cost-effective
1 . First class manufacturing equipment.
2 . Comprehensive one-step services of quality, cost and delivery.
3 . Staff stability.

● Professional Services
1. Quick response.
2 . Customized service and technical support.

● Fully Supply
1. Complete LCD and LCM production line.
2 . Complete Mono, TFT production line.

● Professional R&D Team
We are the leader in LCD .

Production Advantages

1.High quality. Perfect quality management system, stable quality of raw materials, product quality rate of 98% or more
2.On-time delivery. Ensure that orders are delivered on time and in quantity
3.Full supply chain resources. High demand of raw materials, quality assurance of brand suppliers, perfect management system, ensuring the demand of raw material supply;
4.Constantly optimized manufacturing cost. High degree of automation of production line, comprehensively improve per capita work efficiency, stable product quality, and significantly reduce enterprise production and manufacturing costs; to achieve win-win and value-added mutual enjoyment with customers and employees.
