CONTACT NOWProduct Description
|

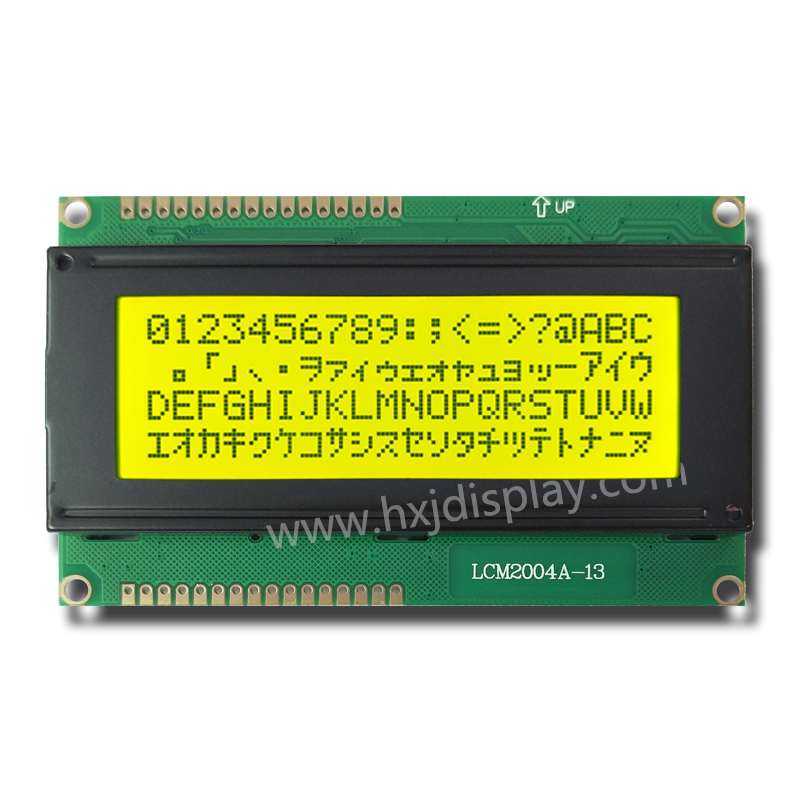

Module No.: |
HSM2004A-13 |
|
Display Type: |
20 Characters x 4 Lines |
|
Encapsulation: |
COB |
|
Outline Size: |
98 x 60 x13.2 mm |
|
Viewing Area: |
77 x 25.2 mm |
|
Screen Color: |
Yellow-Green/Blue/Gray |
|
Backlight Color: |
Yellow-Green/Green/White/Blue/Orange/Red |
|
Backlight:: |
Side LED |
|
Driver IC: |
AIP31066 |
|
Connector: |
Conductive Silicon Rubber |
|
Pin Number: |
16 |
|
Interface: |
8-bit MPU interface |
|
Driver Condition: |
1/16 Duty,1/5 Bias |
|
Viewing Direction: |
6 O’Clock |
|
Operating Voltage: |
5V/3.3V |
|
Operating Temperature: |
-20～+70℃ |
|
Storage Temperature: |
-30～+80℃ |
Interface Pin Description
|
No. |
Symbol |
Function |
| 1 | VSS |
Ground (0V) |
| 2 | VDD |
Supply Voltage for Logic (+5.0V ) |
| 3 | VO |
Contrast Adjustment |
| 4 | RS |
Data/Instruction Select |
| 5 | R/W |
Read/Write Select |
| 6 | E |
Enable Signal |
| 7–14 | DB0—DB7 |
Data Bus |
| 15 | LED_A |
LED Power Supply + (5.0V) |
| 16 | LED_K |
LED Power Supply – (0V) |

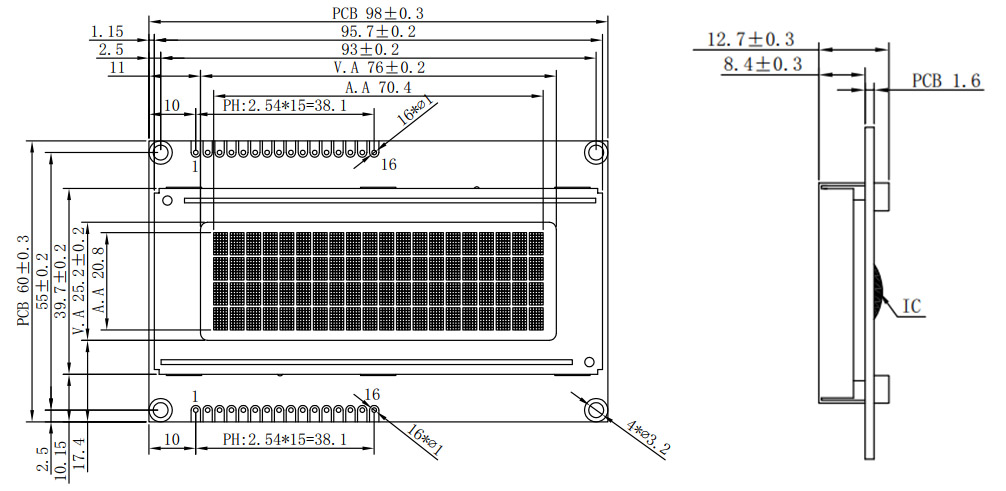

Mechanical Diagram
