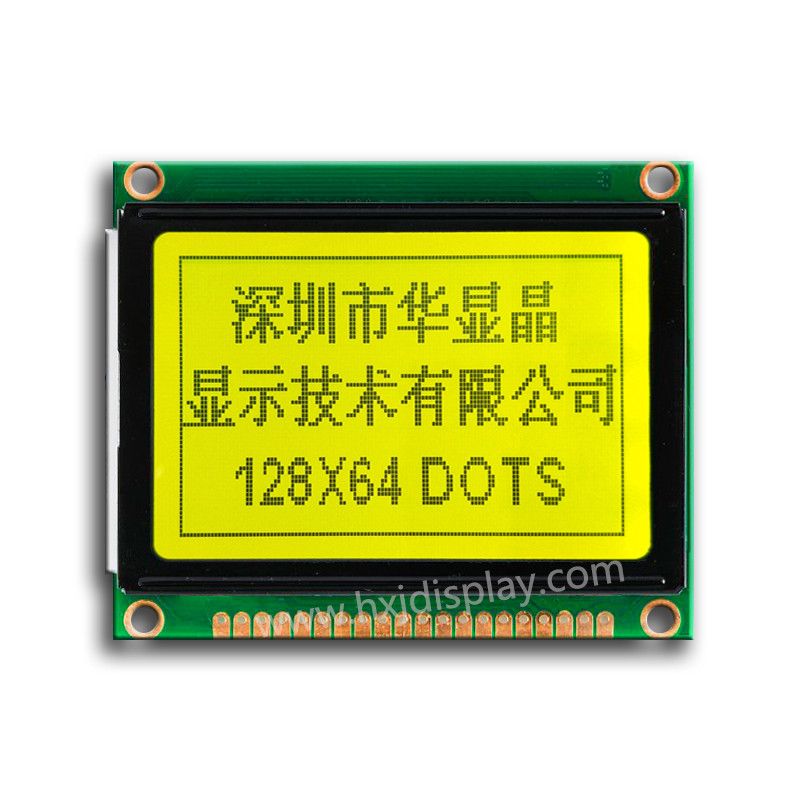

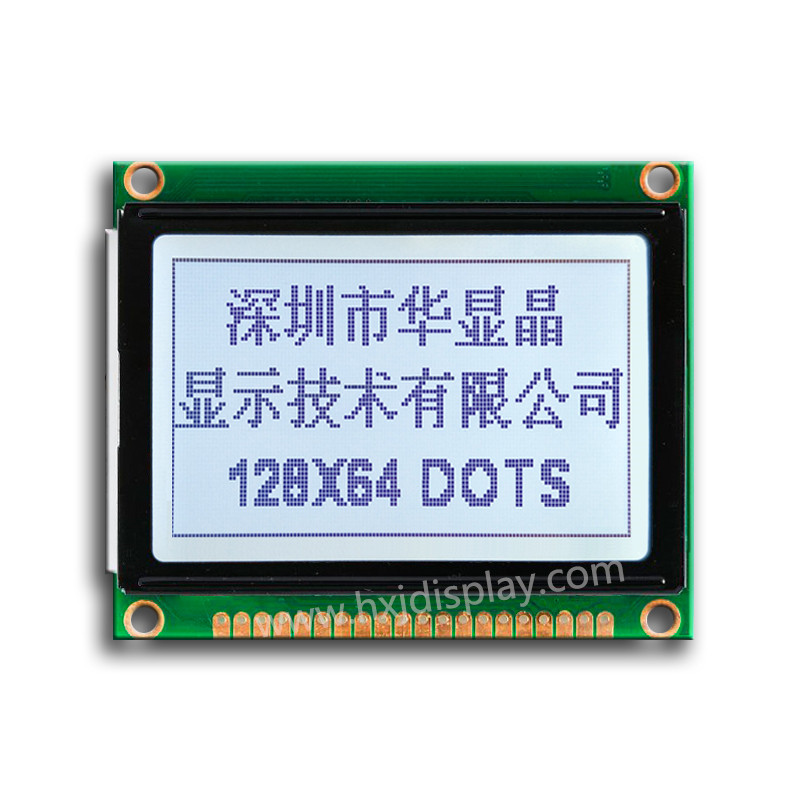

HSM12864E

lcd module 128×64 graphic

Keyword

Graphic LCD 128 x 64 (dots)

● STN-YG / STN-Blue / STN-Gray /FSTN-Gray

● +3.3V / +5.0V power supply

● Viewing Direction: 6H / 12H

● Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Module No.:	HSM12864E
Display Type:	128 x 64 Dots
Encapsulation:	COB
Outline Size:	73.2 x 60 x 9.3 mm
Viewing Area:	62 x 40 mm
Screen Color:	Yellow-Green/Blue/Gray
Backlight Color:	Yellow-Green/Green/White/Blue/Orange/Red
Backlight:	Side LED
Driver IC:	AIP31108
Connector:	Conductive Silicon Rubber
Pin Number:	20
Interface:	8-bit MPU interface
Driver Condition:	1/64 Duty,1/9 Bias
Viewing Direction:	6 O’Clock
Operating Voltage:	5V/3.3V
Operating Temperature:	-20～+70℃
Storage Temperature:	-30～+80℃

Interface Pin Description

No.	Symbol	Function
1	CS1	Chip Select
2	CS2	Chip Select
3	GND	Ground (0V)
4	VDD	Supply Voltage for Logic (+5V )
5	VO	Contrast Adjustment
6	RS	Data/Instruction Select
7	R/W	Read/Write Select
8	E	Enable Signal
9–16	DB0—DB7	Data Bus
17	RST	Reset signal , active “L”
18	VOUT	Output voltage for LCD driving
19	LED_A	LED Power Supply + (5V)
20	LED_K	LED Power Supply -(0V)

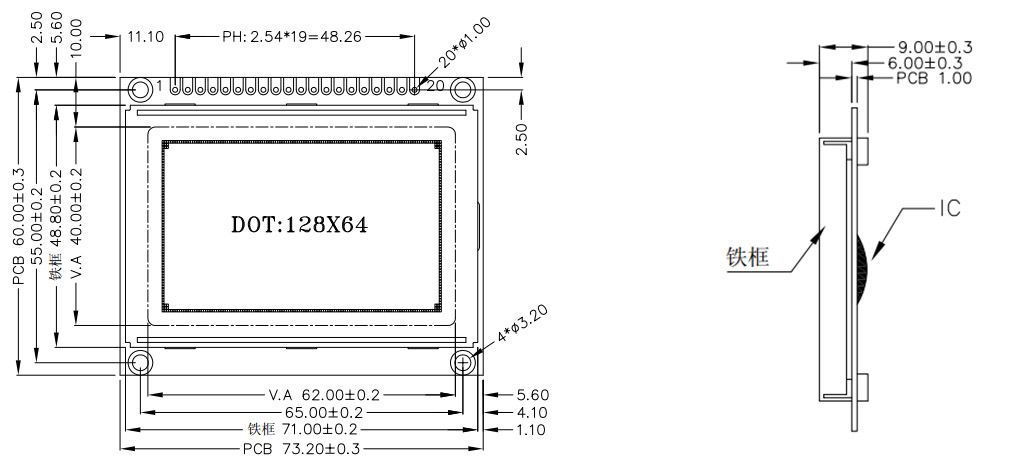

Mechanical Diagram

Application

Our Services

(1) Provide best pre-sales and after-sales service to you.

(2) Custom design,can specially meet your needs.

(3) Fast delivery,about 20 days for lead time

(4) Samples available on request,small MOQ orders can be negotiated.

FAQ

1. How to order?

Please send us your purchase order by e-mail,or ask us to send you one invoice.We need to know the following information for your order.

1)Product information-quantity,part number.

2)Delivery time required.

3)Shipping information-company name,address,phone number,destination sea port.

4)Forwarder's contact details if you have any in China.

2. Can you design the LCD in accordance with our demand?

Yes, We have a professional R&D team, and we will give you the best price and quality for molding.

3. When can I get the datasheet?

If you need the standard LCD,the datasheet will sent to you after get your inquiry.If you need customize LCD,we will send the drawing for your confirmation,then the datasheet will be sent to you.

4. How long can I get the sample? does it free?

The sample will be ready for delivery in 5-7 days. If customer paid for molding charge, the sample will be free,customer just need pay for the freight.

5. Are you factory or trade company?

We are the ODM&OEM manufacturer specialized in mono LCD,COG,TFT and OLED more than 10 years.

Production Advantages

1.High quality. Perfect quality management system, stable quality of raw materials, product quality rate of 98% or more
2.On-time delivery. Ensure that orders are delivered on time and in quantity
3.Full supply chain resources. High demand of raw materials, quality assurance of brand suppliers, perfect management system, ensuring the demand of raw material supply;
4.Constantly optimized manufacturing cost. High degree of automation of production line, comprehensively improve per capita work efficiency, stable product quality, and significantly reduce enterprise production and manufacturing costs; to achieve win-win and value-added mutual enjoyment with customers and employees.
