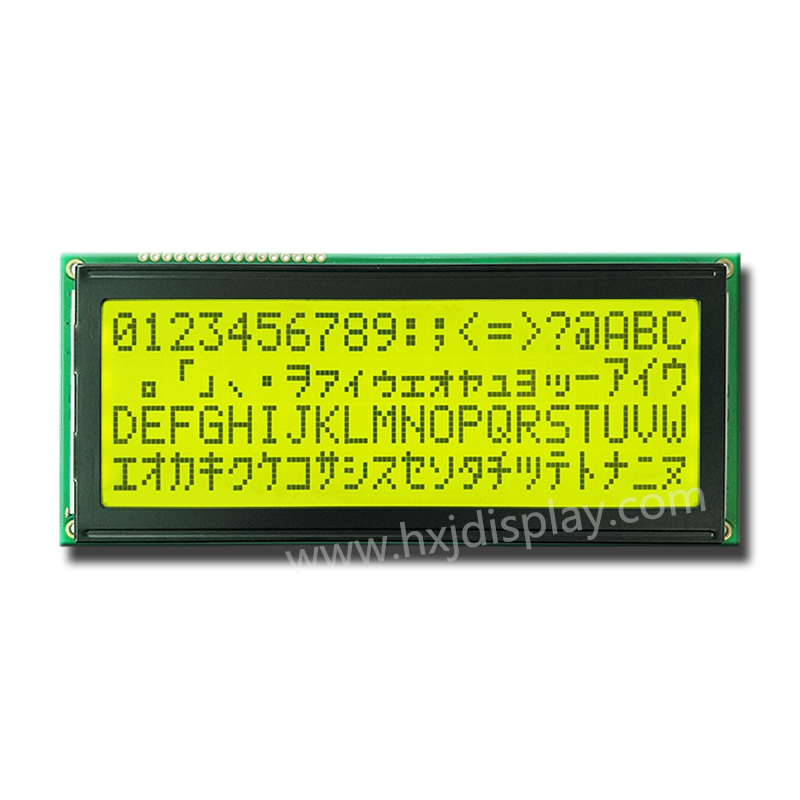

HSM2004E

lcd 2004 module

Keyword

Character LCD 20×4 (5 x 8 dots)

● STN-YG / STN-Blue / STN-Gray /FSTN-Gray

● +3.3V / +5.0V power supply

● Viewing Direction: 6H / 12H

● Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB

● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Module No.:	HSM2004E
Display Type:	20 Characters x 4 Lines
Outline Size:	146 x 62.5 x14 mm
Viewing Area:	123 x 42.6 mm
Encapsulation:	COB
Screen Color:	Yellow-Green/Blue/Gray
Backlight Color:	Yellow-Green/Green/White/Blue/Orange/Red
Backlight::	Side LED
Driver IC:	AIP31066
Connector:	Conductive Silicon Rubber
Pin Number:	16
Interface:	8-bit MPU interface
Driver Condition:	1/16 Duty,1/5 Bias
Viewing Direction:	6 O’Clock
Operating Voltage:	5V/3.3V
Operating Temperature:	-20～+70℃
Storage Temperature:	-30～+80℃

Interface Pin Description

No.	Symbol	Function
1	VSS	Ground (0V)
2	VDD	Supply Voltage for Logic (+5.0V )
3	VO	Contrast Adjustment
4	RS	Data/Instruction Select
5	R/W	Read/Write Select
6	E	Enable Signal
7–14	DB0—DB7	Data Bus
15	LED_A	LED Power Supply + (5.0V)
16	LED_K	LED Power Supply – (0V)

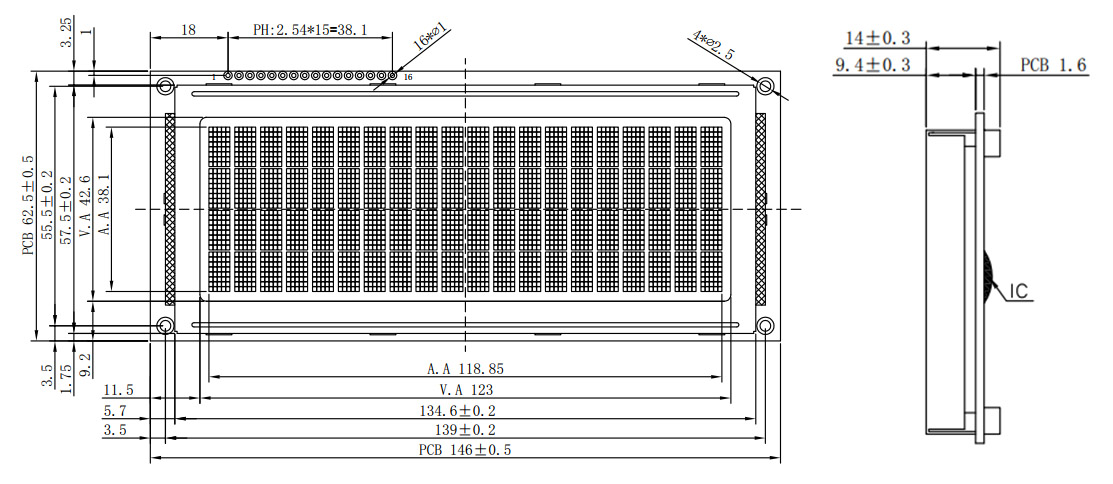

Mechanical Diagram

More other product: segment lcd display

Our Services

1. And if it is necessary for you to have technical support in the process of development, we can provide it for you at any time.

2. Good quality and credit is the soul of our company.Before shipment, we will guarantee that the products will be done the aging test and 100% of the visual and electric logging.

3. When the product upgrades, we will notify the related clients in advance, and the upgrading product can be perfectly compatible with the old ones.

4. The warranty period of the product is 12 months.

FAQ

1, May I have your company profile?

Answer: of course! Our company was established in 2008.Which is one of the earliest LCD module manufacturers in China.At present,we have thousands of standard LCD modules for customer choosing.And special customization is welcome.

2, I want the LCD module display 8 digits and the outline size is 35mm*70mm......?

Answer: No problem.Firstly,pls send us your drawing or samples,we will introduce the suitable one if it is standard products.Or we can modify based on one of it.

3,This LCD module is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.

Answer: For the segment type LCD module,if you need modify the outline size or display content,a new LCD glass mould is need.We will tell you the mould charge after confirming,we will start the drawing for your checking after payment.

4, This LCD module backlight is yellow-green, but I want blue backlight.

Answer: no problem,we can change for you.

5, I want customize a new LCD module. Can you do?

Answer: Yes,we can.Please send your drawing.If you have not, please tell me the outline size of the LCD display, display information, whether need backlight or PCB board with IC.We will evaluate the cost and give you price soon.

6, What is leading time for tooling?

Answer:15 to 30 days after drawing confirmation and tooling charge payment,we can tell you the exact time when you confirm the drawing.

7, Can you send us samples for checking?

Answer: Yes,samples order is available.

8, Can you accept Paypal?

Answer: Yes,we can accept T/T,Paypal,Western Union.
