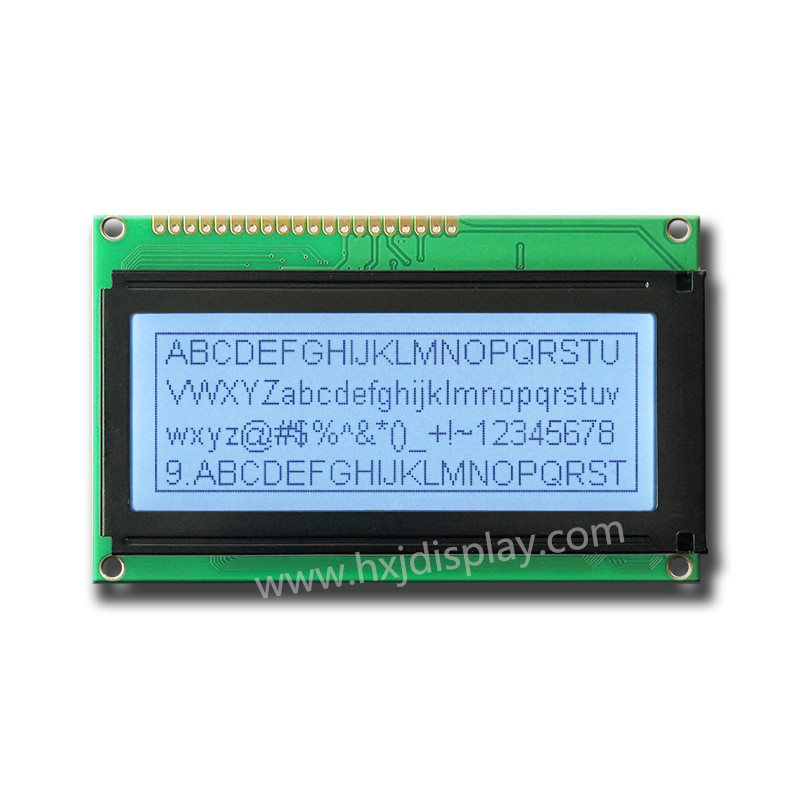

CONTACT NOWProduct Description
|
Module No.: |
HSM19264T |
|
Display Type: |
192 x 64 Dots |
|
Encapsulation: |
COB |
|
Outline Size: |
110 x 46 x 12 mm |
|
Viewing Area: |
84 x 31 mm |
|
Screen Color: |
Yellow-Green/Blue/Gray |
|
Backlight Color: |
Yellow-Green/Green/White/Blue/Orange/Red |
|
Backlight:: |
Side LED |
|
Driver IC: |
AIP31108 |
|
Connector: |
Conductive Silicon Rubber |
|
Pin Number: |
20 |
|
Interface: |
8-bit MPU interface |
|
Driver Condition: |
1/64 Duty,1/9 Bias |
|
Viewing Direction: |
6 O’Clock |
|
Operating Voltage: |
5V/3.3V |
|
Operating Temperature: |
-20～+70℃ |
|
Storage Temperature: |
-30～+80℃ |
Interface Pin Description
|
No. |
Symbol | Function |
| 1–8 | DB7—DB0 |
Data Bus |
| 9 | E |
Enable Signal |
| 10 | R/W |
Read/Write Select |
| 11 | RS |
Data/Instruction Select |
| 12 | VO |
Contrast Adjustment |
| 13 | VDD |
Supply Voltage for Logic (+5V ) |
| 14 | VSS |
Ground (0V) |
| 15 | CSA |
Chip Select |
| 16 | CSB |
Chip Select |
| 17 | VEE |
Output voltage for LCD driving |
| 18 | RST |
Reset signal , active “L” |
| 19 | LED_A |
LED Power Supply + (5V) |
| 20 | LED_K |
LED Power Supply (0V) |

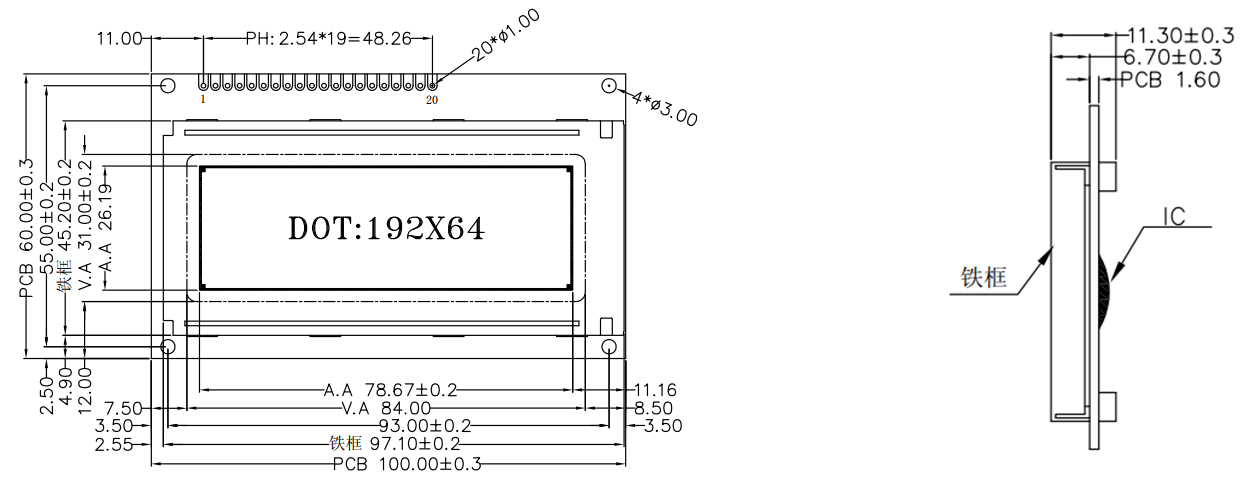

Mechanical Diagram
Product Range
|
1 |
LCD Type: TN, HTN, STN, FSTN, VA |
| 2 | Any digitals, icons, graphic can be customized base on your requirement |
| 3 | Polarizer type: Transmissive, Transflective, Reflective |
| 4 | Connector Type: FPC, Metal Pins, Zebra, Heat-seal |
| 5 | Glass thickness: 1.1mm, 0.7mm, 0.55mm |
| 6 | Various Backlight color available |
| 7 | IC Mounting Method: COB, COG, TAB etc |
Main Application
|
1 |
Wire tester |
communications equipment |
| 2 | lnstrument & meter | Car audio-Visual |
| 3 | lndustrial equipment | Home appliances & fuel dispenser |
| 4 | Manipulator controller | Consumption electronics |
| 5 | Medical Equipment | POS |
| 6 | Electricity, Power Controller Device | Beauty Equipment |
| 7 | Semi auto analyzer | Medical Equipment |
| 8 | ECG | lnjection MaChine |
Our Advantage
|
1 |
Own LCD glass production line |
| 2 | TN, HTN, STN, FSTN, VA |
| 3 | OEM & ODM LCD, Backlight, connector, PCB acceptable |
| 4 | 10 years of technical experience |
| 5 | Small order quantity acceptable |
| 6 | Fast delivery time |
Company Product Main Application
Why Choose Us
We established in 2008,have 11 Years of Production Experience,we can design,develop and produce customized LCD,LCM and B/L.Our current product range is mono LCD(such as TN, HTN, STN, FSTN,VA) and mono LCD Module,TFT,OLED.
Our main product is small and medium-sized LCD display and its extension related products. We develop rapidly,now we have two LCD factory in China.
* Own LCD glass production line
* 5 COB module production line
* 7 COG automatic lines and one semi-automatic line
* TN,HTN,STN,FSTN,DFSTN,VA LCD and TFT LCD,OLED types available
* Technical support and fast delivery time
1. All products are for real description,when you buy our lcd,we will provide detailed instructions and examples of procedures.If you need us to provide technical support in the process of development,you can contact us at any time.
2. Before shipment,we will do the aging test and 100% visual and electronic logging,you can buy trustingly.
3. We guarantee that our all products supply for a long time,if the product upgrades,we will notify users in advance,and upgrade the product can compatible with the old product.
4. The warranty period of the LCD is 12 months.
