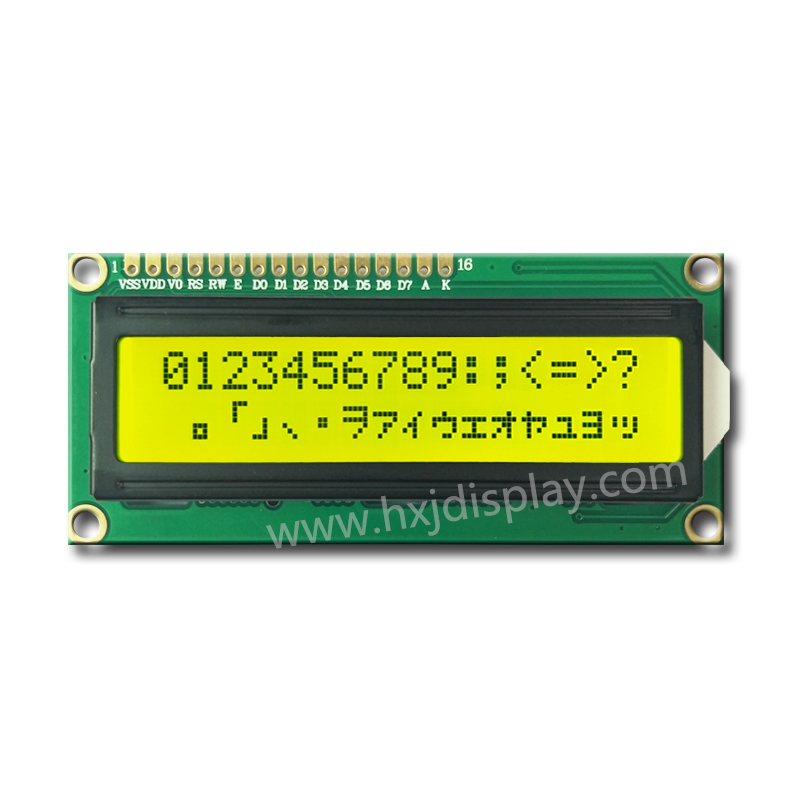

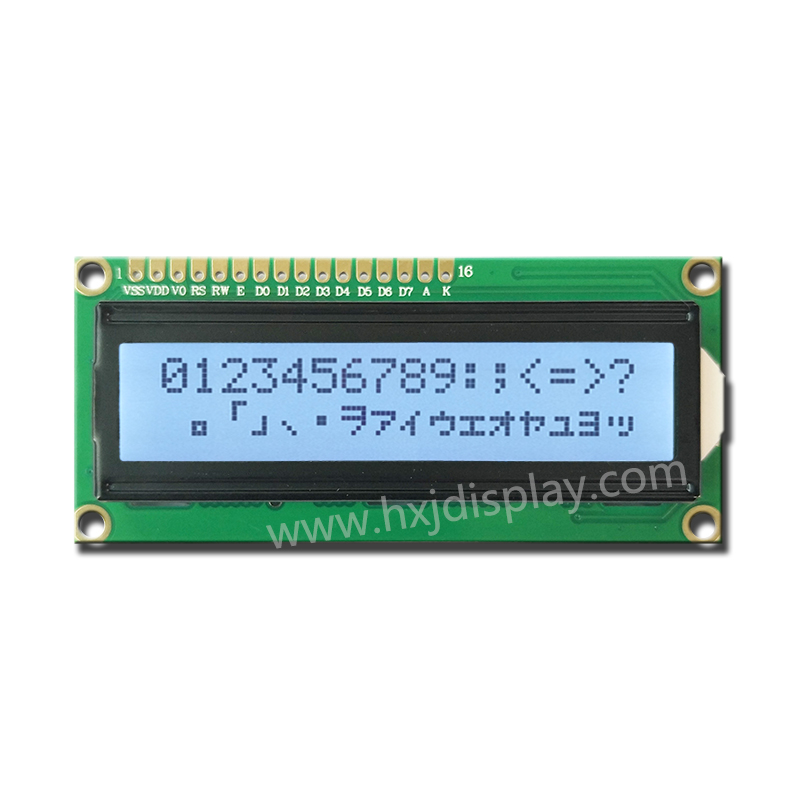

Character LCD 16×2 (5 x 8 dots)

● STN-YG / STN-Blue / STN-Gray /FSTN-Gray

● +3.3V / +5.0V power supply

● Viewing Direction: 6H / 12H

● Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB

● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)

CONTACTCONTACT NOW

Product Description

Module No.:

HSM1602A-8

Display Type:

16 Characters x 2 Lines

Encapsulation:

COB

Outline Size:

80 x 36 x11 mm

Viewing Area:

64.5 x 14.5 mm

Screen Color:

Yellow-Green/Blue/Gray

Backlight Color:

Yellow-Green/Green/White/Blue/Orange/Red

Backlight:

Side LED

Driver IC:

AIP31066

Connector:

Conductive Silicon Rubber

Pin Number:

16

Interface:

8-bit MPU interface

Driver Condition:

1/16 Duty,1/5 Bias

Viewing Direction:

6 O’Clock

Operating Voltage:

5V/3.3V

Operating Temperature:

-20~+70℃

Storage Temperature:

-30~+80℃

Interface Pin Description

No.

Symbol

Function

1 VSS

 Ground (0V)

2 VDD

 Supply Voltage for Logic (+5.0V )

3 VO

 Contrast Adjustment

4 RS

 Data/Instruction Select

5 R/W

 Read/Write Select

6 E

 Enable Signal

7 DB0

 Data Bus

8 DB1

 Data Bus

9 DB2

 Data Bus

10 DB3

 Data Bus

11 DB4

 Data Bus

12 DB5

 Data Bus

13 DB6

 Data Bus

14 DB7

 Data Bus

15 LED_A

 LED Power Supply + (5.0V)

16 LED_K

 LED Power Supply – (0V)

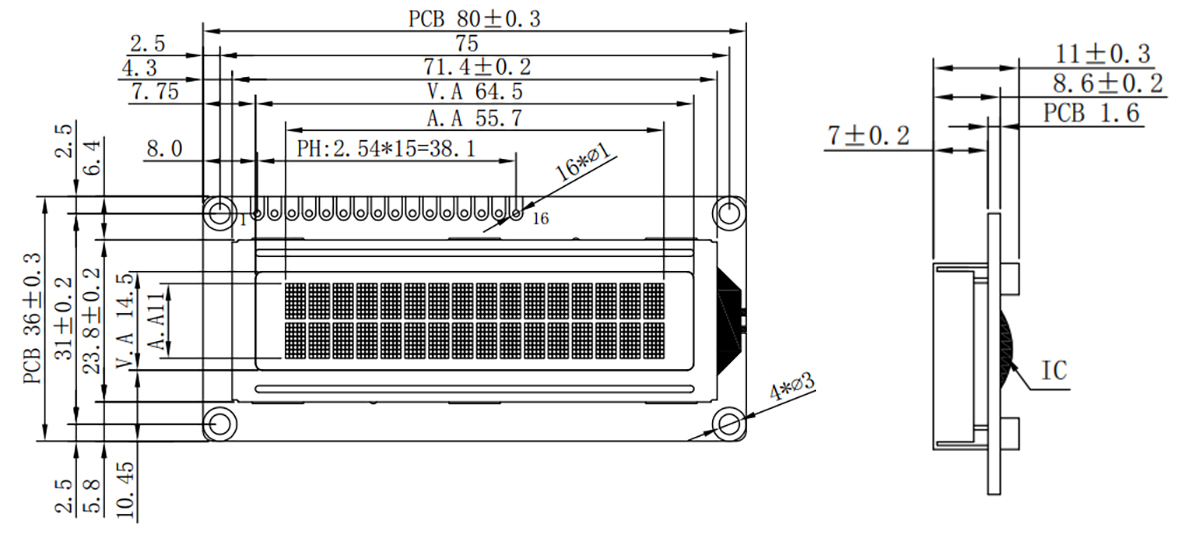

Mechanical Diagram

lcd 16x2 for radio-01 (4)

Other Knowledge

lcd 16x2 for radio-01 (5)
lcd 16x2 for radio-01 (6)

FAQ
