HSM0802B

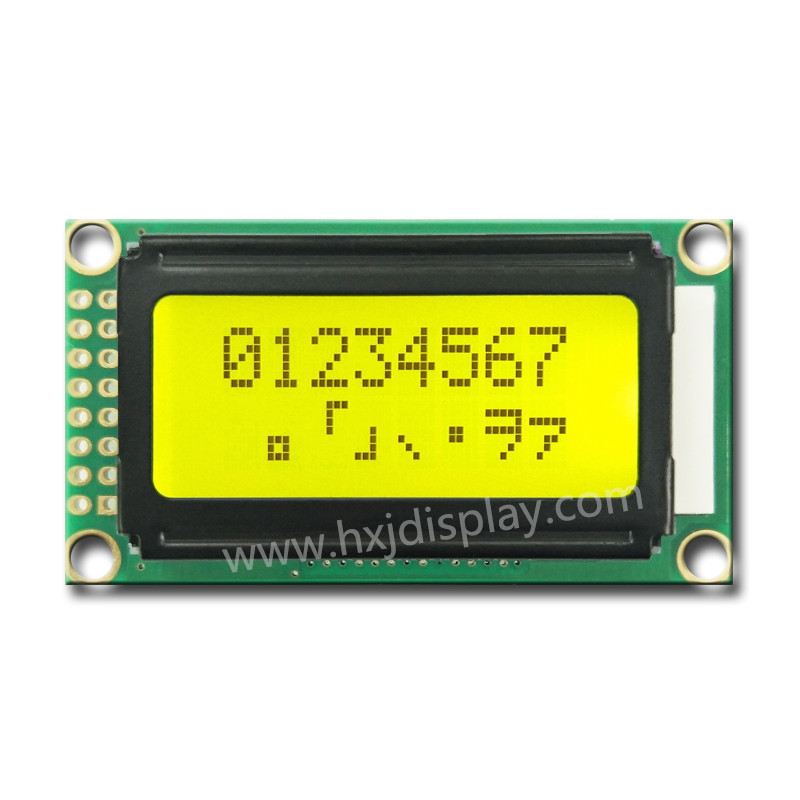

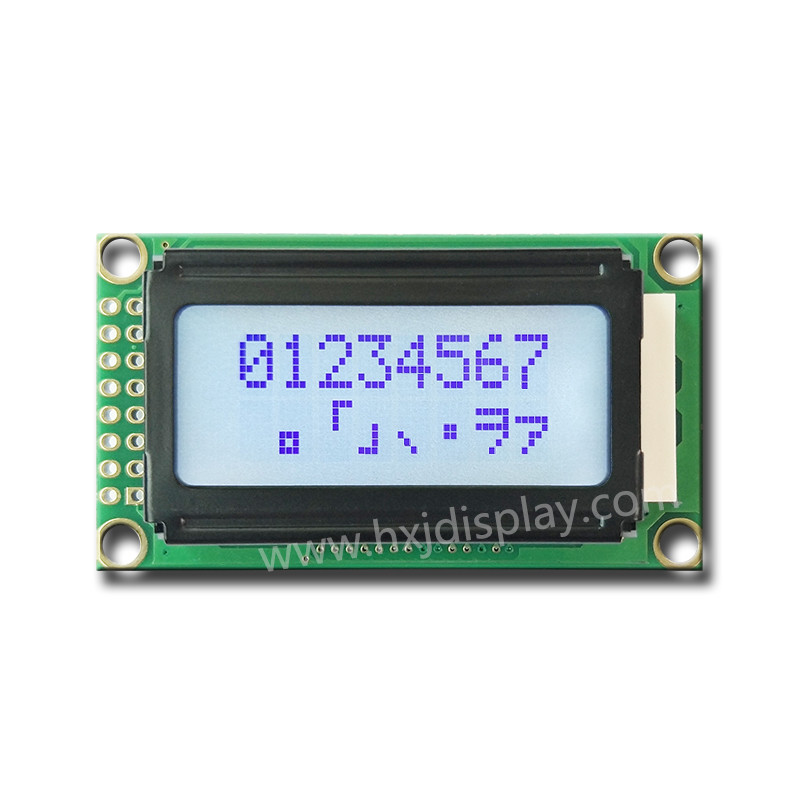

HSM0802B lcd display module 2×8

Keyword

Character LCD 8×2 (5 x 8 dots)

● STN-YG / STN-Blue / STN-Gray /FSTN-Gray

● +3.3V / +5.0V power supply

● Viewing Direction: 6H / 12H

● Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB

● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Module No.:	HSM0802B
Display Type:	8 Characters x 2 Lines
Encapsulation:	COB
Outline Size:	58 x 32 x13.8 mm
Viewing Area:	38 x 16 mm
Screen Color:	Yellow-Green/Blue/Gray
Backlight Color:	Yellow-Green/Green/White/Blue/Orange/Red
Backlight::	Side LED
Driver IC:	AIP31066
Connector:	Conductive Silicon Rubber
Pin Number:	16
Interface:	8-bit MPU interface
Driver Condition:	1/16 Duty,1/5 Bias
Viewing Direction:	6 O’Clock
Operating Voltage:	5V/3.3V
Operating Temperature:	-20～+70℃
Storage Temperature:	-30～+80℃

Interface Pin Description

No.	Symbol	Function
1	VSS	Ground (0V)
2	VDD	Supply Voltage for Logic (+5.0V )
3	VO	Contrast Adjustment
4	RS	Data/Instruction Select
5	R/W	Read/Write Select
6	E	Enable Signal
7-14	DB0-DB7	Data Bus
15	LED_A	LED Power Supply + (5.0V)
16	LED_K	LED Power Supply – (0V)

Mechanical Diagram
