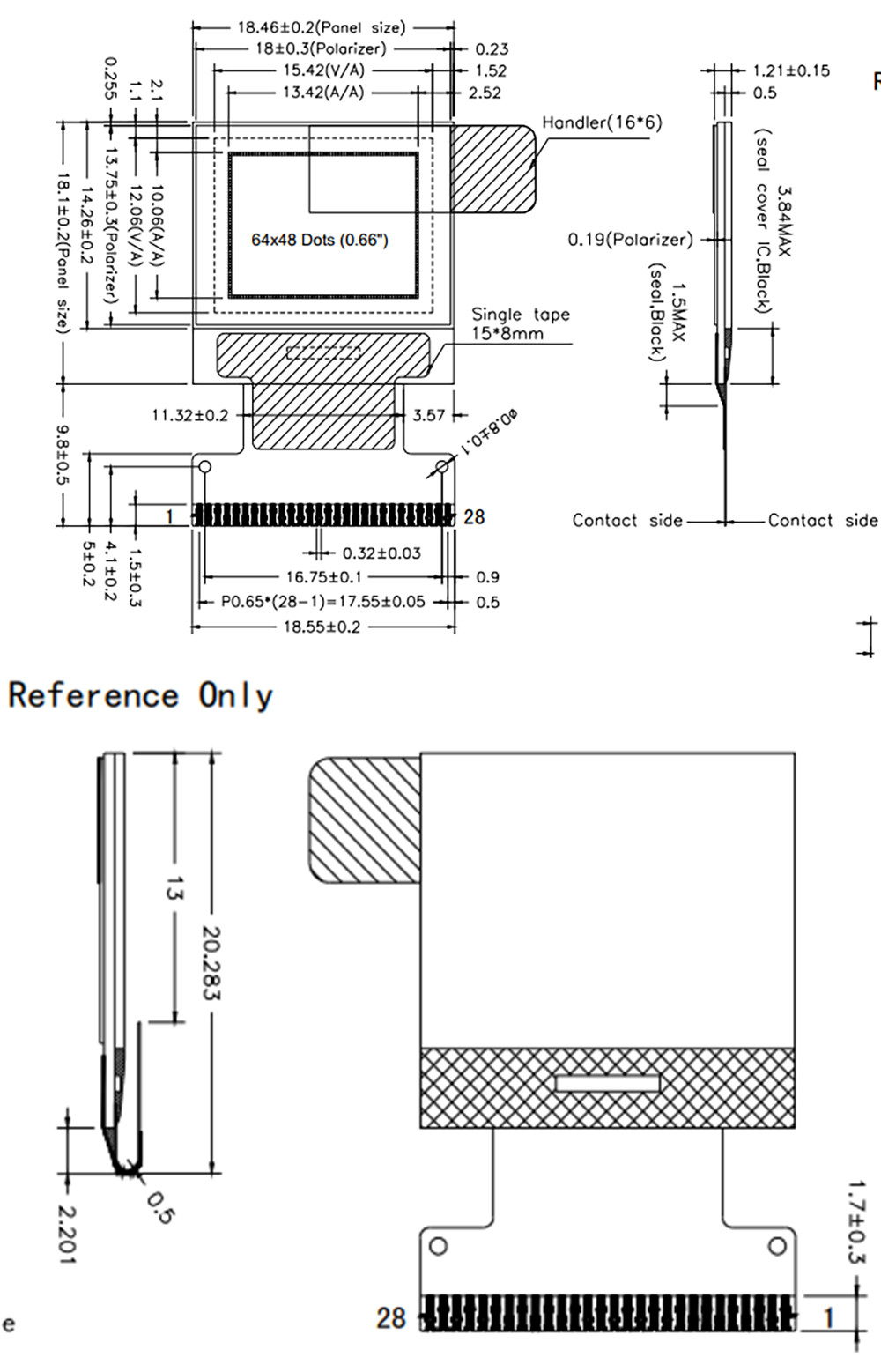

Module No.: |
HP6448-00-TSWG28P066 |
Structure: |
COG |
Screen Size: |
0.66 inch |
Number of Dots: |
64 x 48 |
Color: |
Monochrome (White) |
Module Size: |
18.46 x 18.1 x 1.21 mm |
Viewing Area: |
15.42 x 12.06 mm |
Active Area: |
13.42 x 10.06 mm |
Driver IC: |
SSD1306BZ |
Interface: |
6800/8080 Interface/I2C/ 4-wire SPI |
Connector: |
FPC |
Pin Number: |
28 |
Operating Temperature: |
-40~+70℃ |
Storage Temperature: |
-40~+85℃ |
PIN | SYMBOL | PIN | SYMBOL | PIN | SYMBOL |
PIN |
SYMBOL |
1 | N.C(GND) | 8 | VDD | 15 | E/RDW |
22 |
D6 |
2 | C2P | 9 | BS1 | 16 | DO |
23 |
D7 |
3 | C2N | 10 | BS2 | 17 | D1 |
24 |
IREF |
4 | C1P | 11 | CSN | 18 | D2 |
25 |
VCOMH |
5 | CIN | 12 | RESI | 19 | D3 | 26 | VCC |
6 | VBAT | 13 | D/1C# | 20 | D4 | 27 | VLSS |
7 | VSS | 14 | RNN | 21 | D5 | 28 | NC(GND) |
