Module No.: |
HP12832-00-TSWG15P087 |
|
Structure: |
COG |
|
Screen Size: |
0.87 inch |
|
Number of Dots: |
128 x 32 |
|
Color: |
Monochrome (White) |
|
Module Size: |
29.00 x 8.7 x 1.22 mm |
|
Viewing Area: |
22.856 x 6.824 mm |
|
Active Area: |
21.356 x 5.324 mm |
|
Driver IC: |
SSD1316Z |
|
Interface: |
4-wire SPI |
|
Connector: |
FPC |
|
Pin Number: |
15 |
|
Operating Temperature: |
-40～+70℃ |
|
Storage Temperature: |
-40～+85℃ |
Interface Pin Description
| PIN | SYMBOL | PIN | SYMBOL | PIN | SYMBOL |
PIN |
SYMBOL |
| 1 | C2N | 5 | VBAT | 9 | RES# |
13 |
IREF |
| 2 | C2P | 6 | VSS | 10 | D/C# |
14 |
VCOMH |
| 3 | C1P | 7 | VDD | 11 | SCLK | 15 | VCC |
| 4 | C1N | 8 | SC# | 12 | SDIN |

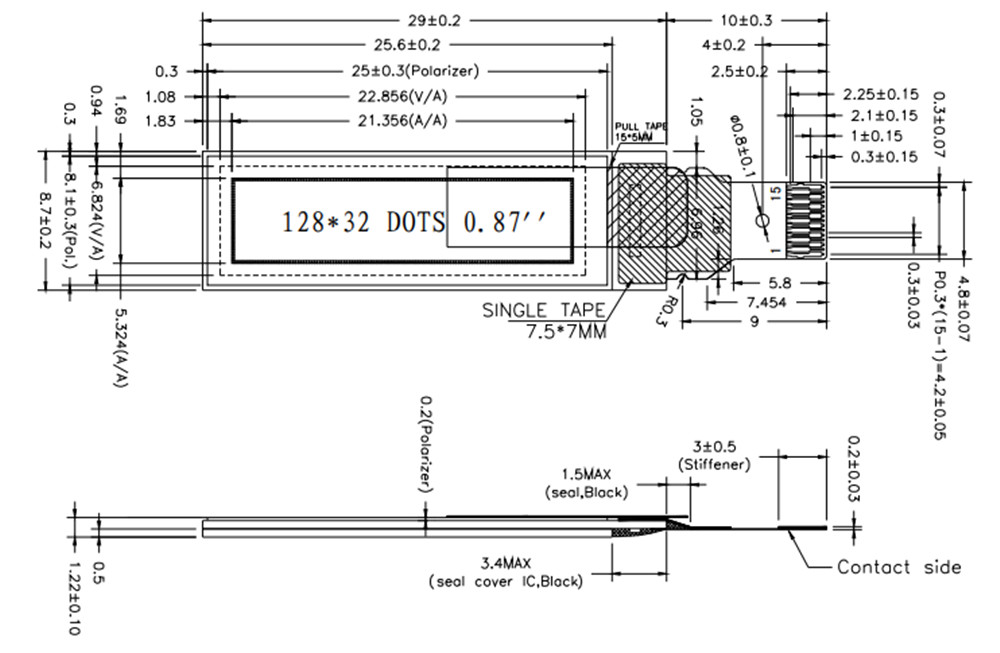

Mechanical Diagram
