Product Description

Module No.:

HP12864-04-TSDG30P096

Structure:

COG

Screen Size:

0.96 inch

Number of Dots:

128 x 64

Color:

Monochrome (Yellow & Blue)

Module Size:

26.70 x 19.26 x 1.41 mm

Viewing Area:

23.74 x 12.864 mm

Active Area:

21.744 x 10.864 mm

Driver IC:

SSD1306BZ

Interface:

6800/8080 Interface/I2C/ 4-wire SPI

Connector:

FPC

Pin Number:

30

Operating Temperature:

-40~+70℃

Storage Temperature:

-40~+85℃

Interface Pin Description

PIN SYMBOL PIN SYMBOL PIN SYMBOL PIN SYMBOL
1 NC(GND) 9 VDD 17 E/RD# 25 D7
2 C2P 10 BS0 18 D0 26 IREF
3 C2N 11 BS1 19 D1 27 VCOMH
4 C1P 12 BS2 20 D2 28 VCC
5 C1N 13 CS# 21 D3 29 VLSS
6 VBAT 14 RES# 22 D4 30 NC(GND)
7 NC 15 D/C# 23 D5
8 VSS 16 R/W# 24 D6

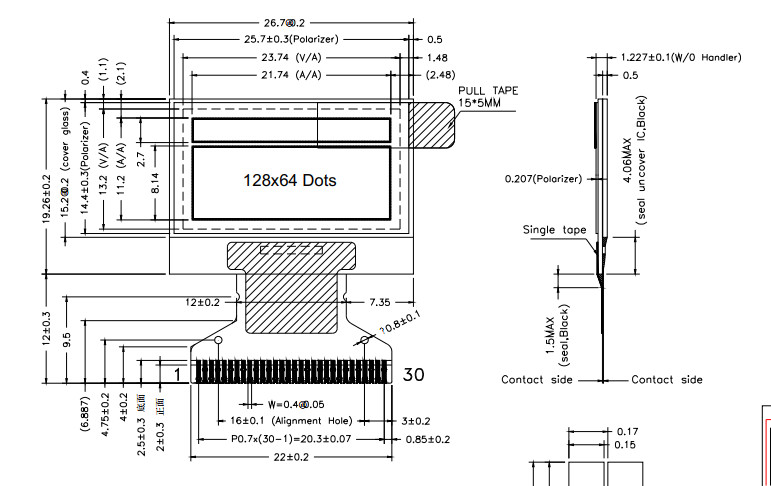

Mechanical Diagram
