HSM1602H

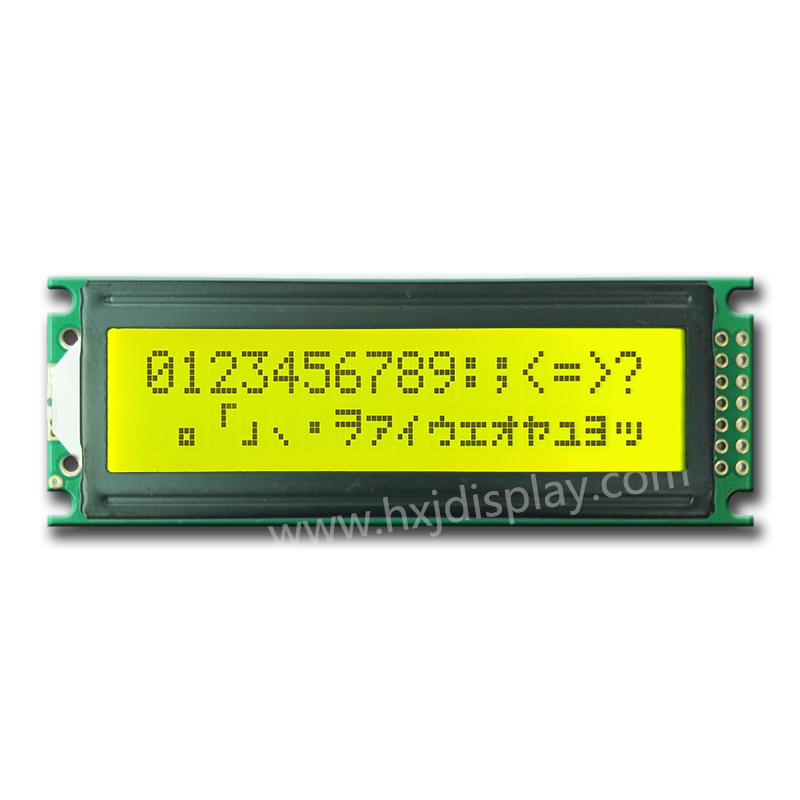

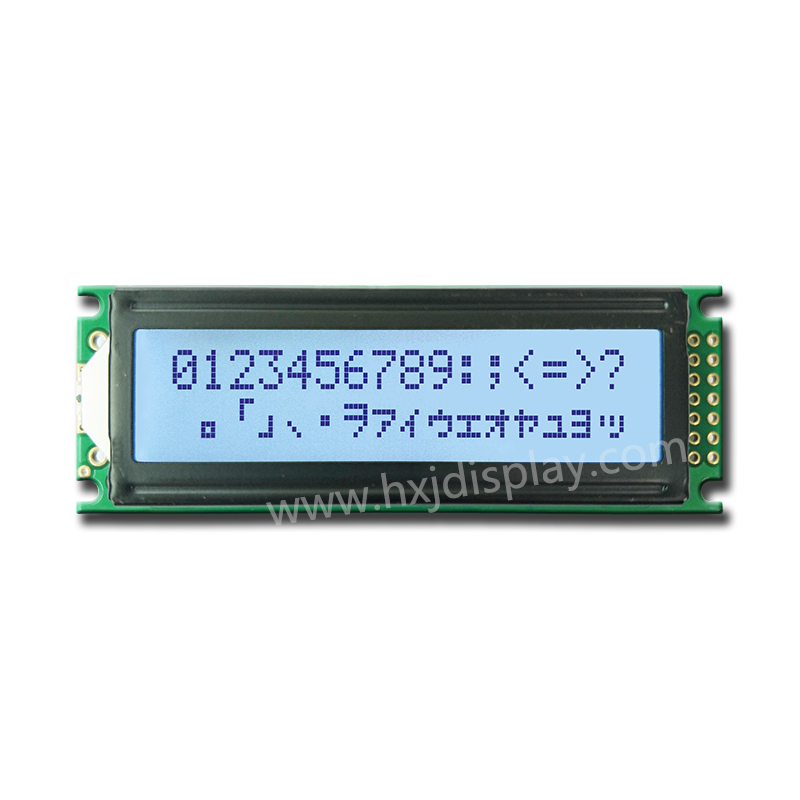

COB character 16×2 LCD module with orange backlight

Keyword

Character LCD 16×2 (5 x 8 dots)

● STN-YG / STN-Blue / STN-Gray /FSTN-Gray

● +3.3V / +5.0V power supply

● Viewing Direction: 6H / 12H

● Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB

● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Module No.:	HSM1602H
Display Type:	16 Characters x 2 Lines
Encapsulation:	COB
Outline Size:	85 x 30 x11.8 mm
Viewing Area:	64.3 x 16 mm
Screen Color:	Yellow-Green/Blue/Gray
Backlight Color:	Yellow-Green/Green/White/Blue/Orange/Red
Backlight:	Side LED
Driver IC:	AIP31066
Connector:	Conductive Silicon Rubber
Pin Number:	16
Interface:	8-bit MPU interface
Driver Condition:	1/16 Duty,1/5 Bias
Viewing Direction:	6 O’Clock
Operating Voltage:	5V/3.3V
Operating Temperature:	-20～+70℃
Storage Temperature:	-30～+80℃

Interface Pin Description

No.	Symbol	Function
1	VDD	Supply Voltage for Logic (+5.0V )
2	VSS	Ground (0V)
3	VO	Contrast Adjustment Ground (0V)
4	RS	Data/Instruction Select
5	R/W	Read/Write Select
6	E	Enable Signal
7	DB0	Data Bus
8	DB1	Data Bus
9	DB2	Data Bus
10	DB3	Data Bus
11	DB4	Data Bus
12	DB5	Data Bus
13	DB6	Data Bus
14	DB7	Data Bus
15	LED_A	LED Power Supply + (5.0V)
16	LED_K	LED Power Supply – (0V)

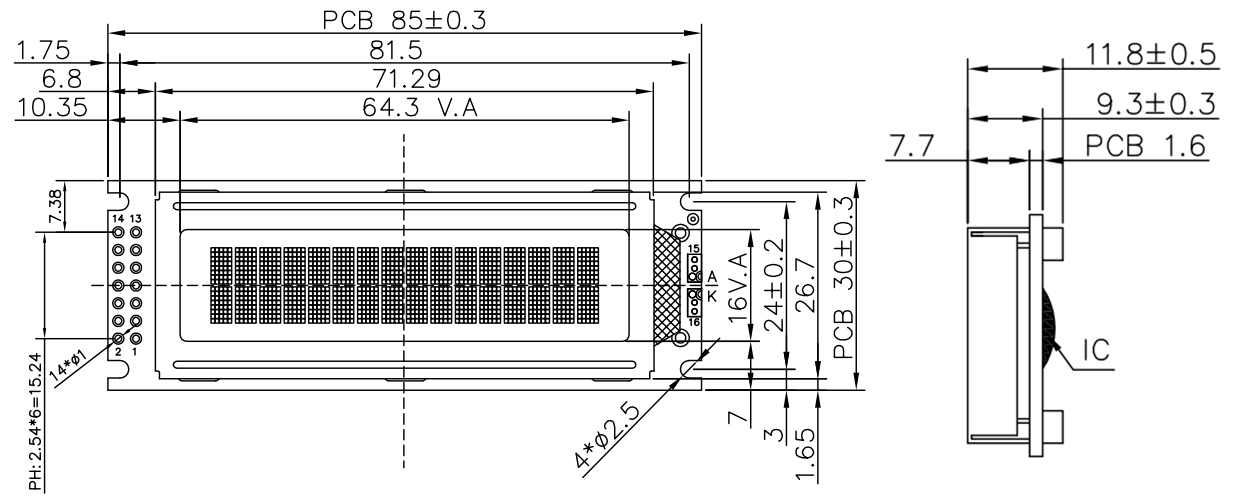

Mechanical Diagram

COB character 16x2 LCD module with orange backlight-01 (4)

More Other Product

COB character 16x2 LCD module with orange backlight-01 (5)

Company Product Main Application

COB character 16x2 LCD module with orange backlight-01 (6)

Why Choose Us
