CONTACT NOWProduct Description
|
Module No.: |
HSM1601B |
|
Display Type: |
16 Characters x 1 Line |
|
Encapsulation: |
COB |
|
Outline Size: |
122 x 33 x13.3 mm |
|
Viewing Area: |
99 x 13 mm |
|
Screen Color: |
Yellow-Green/Blue/Gray |
|
Backlight Color: |
Yellow-Green/Green/White/Blue/Orange/Red |
|
Backlight:: |
Side LED |
|
Driver IC: |
AIP31066 |
|
Connector: |
Conductive Silicon Rubber |
|
Pin Number: |
16 |
|
Interface: |
8-bit MPU interface |
|
Driver Condition: |
1/16 Duty,1/5 Bias |
|
Viewing Direction: |
6 O’Clock |
|
Operating Voltage: |
5V/3.3V |
|
Operating Temperature: |
-20～+70℃ |
|
Storage Temperature: |
-30～+80℃ |
Interface Pin Description
|
No. |
Symbol |
Function |
| 1 | VSS |
Ground (0V) |
| 2 | VDD |
Supply Voltage for Logic (+5.0V ) |
| 3 | VO |
Contrast Adjustment |
| 4 | RS |
Data/Instruction Select |
| 5 | R/W |
Read/Write Select |
| 6 | E |
Enable Signal |
| 7 | DB0 |
Data Bus |
| 8 | DB1 |
Data Bus |
| 9 | DB2 |
Data Bus |
| 10 | DB3 |
Data Bus |
| 11 | DB4 |
Data Bus |
| 12 | DB5 |
Data Bus |
| 13 | DB6 |
Data Bus |
| 14 | DB7 |
Data Bus |
| 15 | LED_A |
LED Power Supply + (5.0V) |
| 16 | LED_K |
LED Power Supply – (0V) |

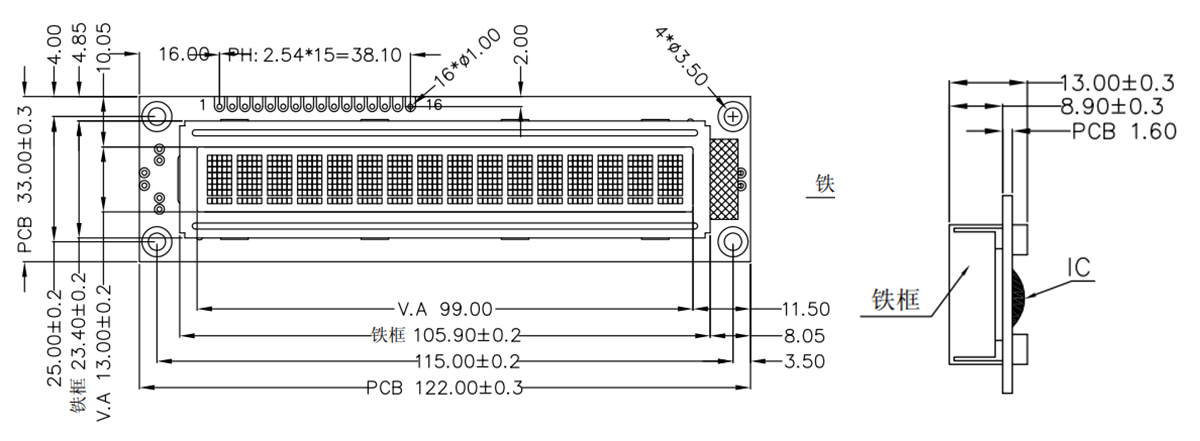

Mechanical Diagram
Factory Show
Product Range
|
1 |
LCD Type: TN, HTN, STN, FSTN, VA |
| 2 | Any digitals, icons, graphic can be customized base on your requirement |
| 3 | Polarizer type: Transmissive, Transflective, Reflective |
| 4 | Connector Type: FPC, Metal Pins, Zebra, Heat-seal |
| 5 | Glass thickness: 1.1mm, 0.7mm, 0.55mm |
| 6 | Various Backlight color available |
| 7 | IC Mounting Method: COB, COG, TAB etc |
Main Application
|
1 |
Wire tester |
communications equipment |
| 2 | lnstrument & meter | Car audio-Visual |
| 3 | lndustrial equipment | Home appliances & fuel dispenser |
| 4 | Manipulator controller | Consumption electronics |
| 5 | Medical Equipment | POS |
| 6 | Electricity, Power Controller Device | Beauty Equipment |
| 7 | Semi auto analyzer | Medical Equipment |
| 8 | ECG | lnjection MaChine |
Our Advantage
|
1 |
Own LCD glass production line |
| 2 | TN, HTN, STN, FSTN, VA |
| 3 | OEM & ODM LCD, Backlight, connector, PCB acceptable |
| 4 | 10 years of technical experience |
| 5 | Small order quantity acceptable |
| 6 | Fast delivery time |
Our Services
Our advantage and service
15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance
Free sample for some styles
FAQ
A: Different product,MOQ is different.In general,total amount must reach 1500RMB.
A: We have got ISO,CE and RoHS certificate so far.
A: Please send us inquiry via email or online communication tools, and you can also give us a call to tell us your needs, we’ll reply you ASAP.
A: For mass production goods, you need to pay 30% deposit before production and 70% balance before shipment.
The most common way to pay us is by T/T. Paypal and Western Union are also acceptable.
A: Of course. We can print any picture you like, once your design is offered.
A: If you need 1-2 pcs samples,we can send you our stock sample free of charge.But if you need some or many samples,sampling cost will be charged,and for both ways,the courier freight needs to be charged by you. And samples can be sent through DHL,FedEx, UPS,TNT,ect.
About us
| 1) Products Range: | Mono LCD,COB,COG,TFT LCD and OLED and so on |
| 2) Quality Control: | Every LCD tested with special instruments or main boards before delivery to ensure working.Both Original and High quality OEM products available. |
| 3) Packing: | Packed in anti-static bags with foam box to ensure safety in transportation or packed as Buyer's requirement. |
| 4) Payment Terms: | T/T,Paypal,Western Union,Alipay,Wechat,Cash. |
| 5) Shipping Methods: | Prompt delivery by DHL,FedEx,UPS,TNT,EMS,by air or sea. |
| 6) After-sale Service: | Best after-sale service to ensure satisfication from customers. |
| 7) Shipment Delivery: | 15 days after payment confirmed. |
| 8) Products Warranty: | Usually,product warranty is last 12 months. |
| 9) Samples: | Our company offers samples for quality test or other business purposes,but we kindly ask you to pay for samples and the freight. |
Remarks
1).Our technicians and QC teams test the original products one by one using special device and instruments.
2).The guarantee for our products is 12 months.
3).All returned parts are requested to be packaged as originally delivered,and original labels marked by us must not be removed,nor can any of the parts have been used or damaged deliberately.
For more details and latest price, please feel free to contact us.
