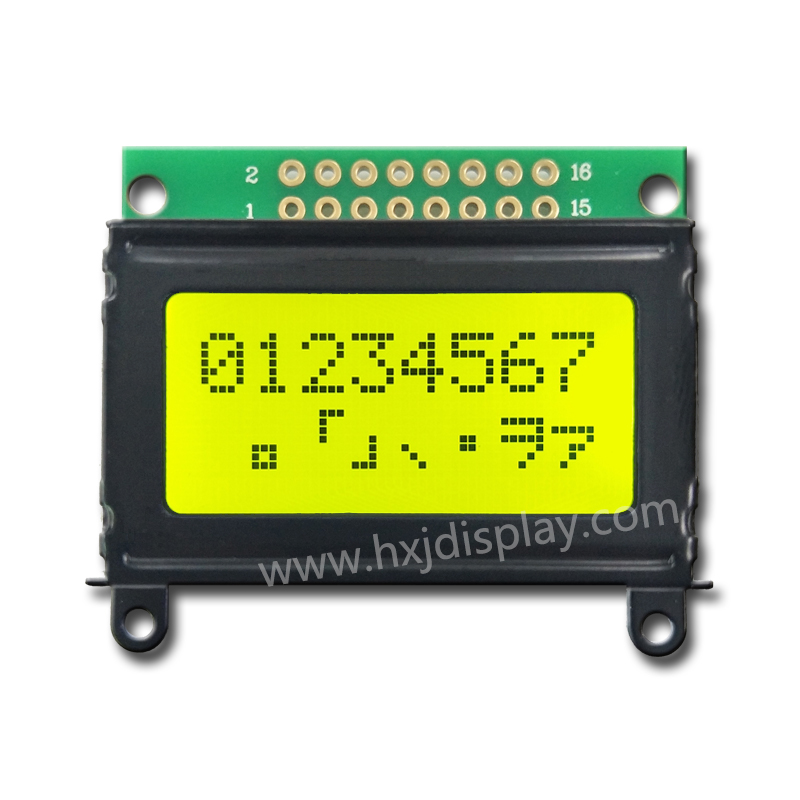

HSM0802C-1

8×2 blue negative small lcd module

Keyword

Character LCD 8×1 (5 x 8 dots)

● STN-YG / STN-Blue / STN-Gray /FSTN-Gray

● +3.3V / +5.0V power supply

● Viewing Direction: 6H / 12H

● Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB

● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)

CONTACTCONTACT NOW

Product Description

Module No.:

HSM0802C-1

Display Type:

8 Characters x 2 Lines

Encapsulation:

COB

Outline Size:

40 x 35.65 x12.5 mm

Viewing Area:

30 x 14 mm

Screen Color:

Yellow-Green/Blue/Gray

Backlight Color:

Yellow-Green/Green/White/Blue/Orange/Red

Backlight::

Side LED

Driver IC:

AIP31066

Connector:

Conductive Silicon Rubber

Pin Number:

16

Interface:

8-bit MPU interface

Driver Condition:

1/16 Duty,1/5 Bias

Viewing Direction:

6 O’Clock

Operating Voltage:

5V/3.3V

Operating Temperature:

-20~+70℃

Storage Temperature:

-30~+80℃

Interface Pin Description

PIN

SYMBOL PIN SYMBOL PIN

SYMBOL

PIN SYMBOL

1

VSS 2 R/W 3

DB2

4 DB6

5

VDD(+5V) 6 E 7

DB3

8 DB7

9

Vo 10 DB0 11

DB4

12 A(5V)

13

R/S 14 DB1 15

DB5

16 K

Mechanical Diagram

8x2 blue negative small lcd module-01 (3)
