HSM4004A

40 characters 4 lines LCD display

Keyword

Character LCD 40×4 (5 x 8 dots)

● STN-YG / STN-Blue / STN-Gray /FSTN-Gray

● +3.3V / +5.0V power supply

● Viewing Direction: 6H / 12H

● Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB

● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Module No.:	HSM4004A
Display Type:	40 Characters x 4 Lines
Encapsulation:	COB
Outline Size:	190 x 54 x13.3 mm
Viewing Area:	149 x 30 mm
Screen Color:	Yellow-Green/Blue/Gray
Backlight Color:	Yellow-Green/Green/White/Blue/Orange/Red
Backlight:	Side LED
Driver IC:	AIP31066
Connector:	Conductive Silicon Rubber
Pin Number:	18
Interface:	8-bit MPU interface
Driver Condition:	1/16 Duty,1/5 Bias
Viewing Direction:	6 O’Clock
Operating Voltage:	5V/3.3V
Operating Temperature:	-20～+70℃
Storage Temperature:	-30～+80℃

Interface Pin Description

No.	Symbol	Function
1–8	DB0—DB7	Data Bus
9	E1	Enable Signal U4 (TOP)
10	R/W	Read/Write Select
11	RS	Data/Instruction Select
12	VO	Contrast Adjustment
13	VSS	Ground (0V)
14	VDD	Supply Voltage for Logic (+5.0V )
15	E2	Enable Signal U1 (BOTTOM)
16	N.C	——-
17	LED_A	LED Power Supply + (5.0V)
18	LED_K	LED Power Supply – (0V)

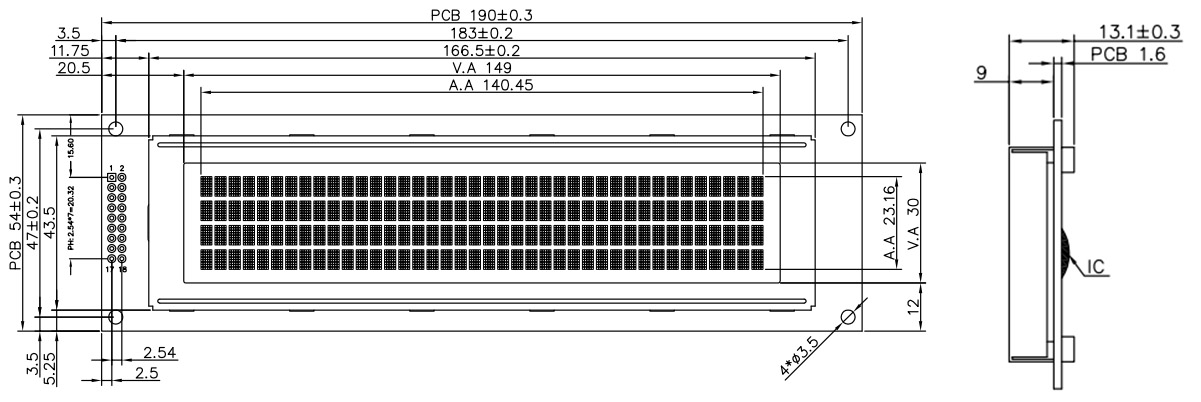

Mechanical Diagram

More Other Product

Company Product Main Application

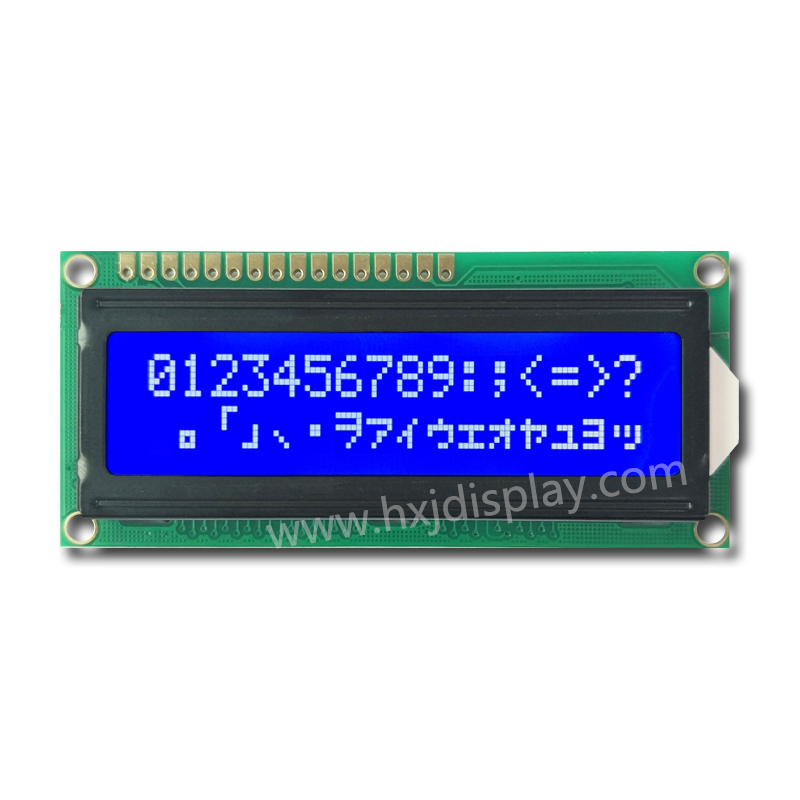

COB character 16x2 LCD module with orange backlight-01 (6)
