4″ Round TFT 4 inch IPS 720×720 MIPI Interface 39 PIN

Item	Specification	Unit
LCD size	4	inch
Panel type	IPS
Resolution	720X720	pixel
Display mode	Normally black
Number of colors	16.7M

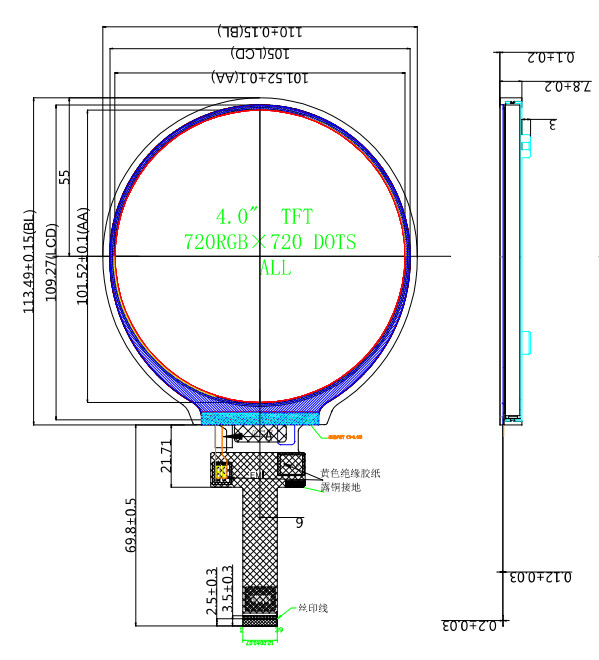

Module size	110(H)x13.49(V)x7.8(D)	mm
AA size	105.52X105.52	mm
Contrast ratio	1200
Luminance	800	cd/m2 typ.
Driver IC	TBD
Interface	MIPI
Light source	20 led



TFT040B015 is a high quality 4 inch TFT LCD display that will bring stunning visuals to your devices. With its compact size and impressive features, this monitor is ideal for a variety of applications. With a resolution of 720×720 pixels, the TFT040B015 provides clear and detailed images. Whether you’re watching videos, playing games, or viewing photos, every detail comes to life on this display. It has an overall size of 110(H)x13.49(V)x7.8(D) mm and an active area of 105.52X105.52mm, achieving a perfect balance between size and functionality.

The TFT040B015 features a normally black display mode, ensuring deep blacks and vivid colors. With 16.7 million color depth, every image will be rich and lifelike. Thanks to its free view function, you can enjoy clear visuals from any angle. The display has a contrast ratio of 1200, offering a dynamic color range from the darkest black to the brightest white. The result is a more immersive viewing experience that captures every detail. With a luminance of 800cd/m2, the TFT040B015 ensures bright and vivid visuals even in outdoor environments or under bright lighting conditions. TFT040B015 is equipped with a 39-pin MIPI interface, providing seamless connection with various devices.

Pin number	Symbol	Function
1	GND	Ground
2-3	LEDA	Backlight anode
4-5	LEDK	Backlight cathode
6	GND	Ground
7-8	VSP	+6.5V Power supply
9	GND	Ground
10-11	VSN	-6.5V Power supply
12	GND	Ground
13-14	IOVCC	1.8V Power supply
15	GND	Ground
16	RESET	Global Reset Pin
17	GND	Ground
18	TE	Tearing effect output signal
19	GND	Ground
20-22	NC	No connect
23	GND	Ground
24	LAN2_P	MIPI lane 2+
25	NC	No connect
26	LAN2_N	MIPI lane 2-
27	GND	Ground
28	CLK_P	MIPI clock +
29	NC	No connect
30	CLK_N	MIPI clock -
31	GND	Ground
32	LAN1_P	MIPI lane 1+
33	NC	No connect
34	LAN1_N	MIPI lane 1-
35	GND	Ground
36	LAN0_P	MIPI lane 0+
37	NC	No connect
38	LAN0_N	MIPI lane 0-
39	GND	Ground
