TFT040HT014

3.95” IPS 480X480 ST7701S 40PIN RGB with CTP

Keyword

Essential details

● Size: 3.95 inch

● Resolution: 480×480

● Outline dimension: 84(H)x84(V)x0.7(D) mm

● Active area: 72.46×70.78mm

● Driver IC:ST7701S

● Display Mode: Normally Black

● Number of Colors:16.7M

● Viewing Direction: Free

● VCC: 3.3 V,IOVCC: 3.3V

● Luminance: 350cd/m2 Typ.

● Light Source: 8 LED light 4Serial&2Parallel CONNECTION,Vf=10.8-13.6V

● Interface: 40 pin RGB

● REQUIREMENTS ENVIRONMENTAL PROTECTION: RoHS

● Operating Temperature: -20~+60 ℃

● Storage Temperature: -30~+70 ℃

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

TFT040HT014 is a high-quality 3.95-inch square TFT LCD display with a capacitive touch panel (CTP). The display is powered by the ST7701S integrated circuit, which provides excellent performance and precise control. TFT040HT014 is equipped with 40-pin RGB (red-green-blue) interface to ensure seamless connection with various devices. Its versatile design allows for easy integration into a variety of projects, making it ideal for applications such as industrial control systems, medical equipment, and handheld devices.

With its capacitive touch panel technology, the TFT040HT014 provides a responsive and intuitive user interface. The touch panel supports smooth and accurate touch input, allowing you to interact seamlessly with the device. Whether scrolling menus, playing games or navigating through apps, the TFT040HT014 ensures a seamless user experience.

Detailed images

With a square design and a diagonal of 3.95 inches, this TFT display has a modern and compact form factor. The TFT040HT014 is backlit with 8 LED lights, providing uniform lighting and vivid colors. This ensures optimal visibility and an immersive viewing experience. With a brightness of 350cd/m2, the monitor provides bright and clear visuals even under various lighting conditions. The display has a 16.7 million color depth for rich and vivid images. The free viewing orientation feature of the TFT040HT014 ensures that the display can be viewed from various angles without loss of image quality. This makes it ideal for devices that require flexible viewing options.

The TFT040HT014 operates at a VCC voltage of 3.3V and an IOVCC voltage of 3.3V and is designed to provide efficient and reliable performance.

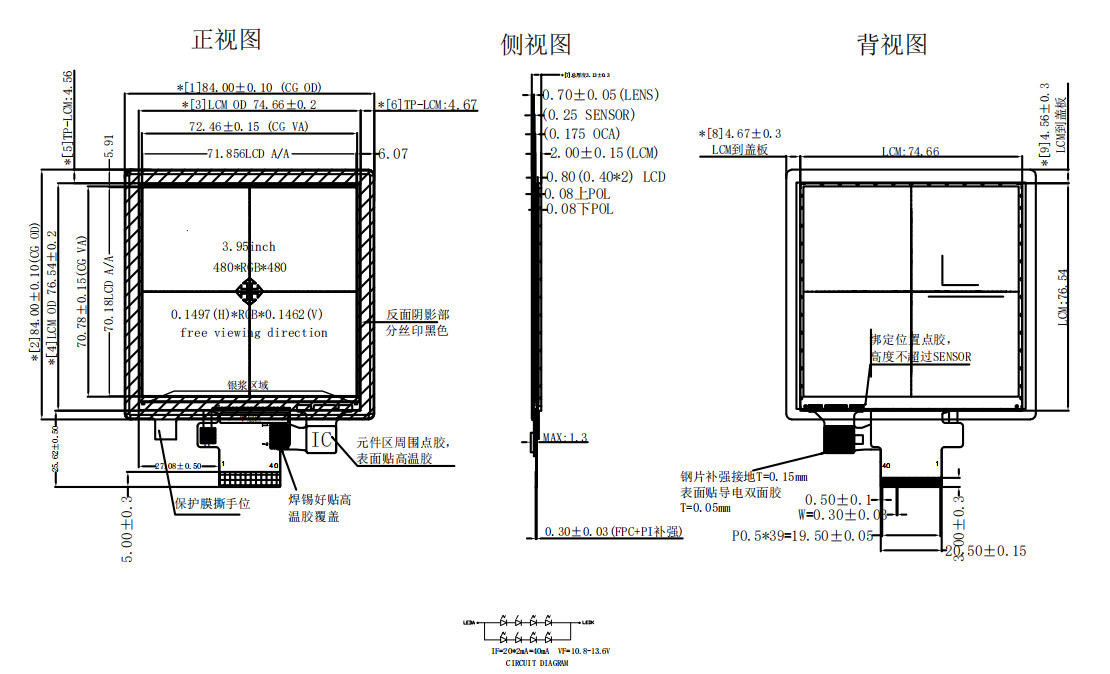

Mechanical Diagram

3.95” IPS 480X480 ST7701S 40PIN RGB with CTP (2)

Upgrade your device with the TFT040HT014, a reliable high performance TFT LCD display with capacitive touch panel. Experience vibrant visuals, seamless touch interaction, and versatile design with this remarkable display.
