TFT035B034

3.5 inch 320×240 IPS LCD module normally black with RGB interface

Keyword

Production Advantages

1. High quality. Perfect quality management system, stable quality of raw materials, product quality rate of 98% or more

2. On-time delivery. Ensure orders can be delivered on time and in quantity

3. Full supply chain resources. High demand for raw materials requires quality assurance from brand suppliers, perfect management system to ensure the demand for raw material supply;

4. Constantly optimized manufacturing cost. The high degree of automation of the production line, the overall improvement of per capita work efficiency, and stable product quality, significantly reduce the manufacturing costs of enterprises to achieve a win-win situation with customers, employees.

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

No.	Item	Specification	Unit
1	LCD Size	3.5	inch
2	Panel Type	IPS	-
3	Resolution	320×240	Pixel
4	Display Mode	Normally Black	-
5	Viewing Direction	ALL	-
6	Module Size	76.9×63.9×3.2	mm
7	Panel Active Area	70.08X52.56	mm
8	Driver IC	ST7272A	-
9	Backlight	6 LEDS WHITE
10	Interface	RGB	-
11	Operating Temperature	-20~+70	℃
12	Storage Temperature	-30~+80	℃

3.5 inch LCD screen with RGB interface

1. The TFT035B034 is a high-quality IPS TFT LCD module that offers a range of advantages for various display applications. The 240×320 resolution and wide viewing angle of 12 o’clock make the module ideal for applications where clear and high-quality display is critical. The IPS technology provides excellent color reproduction and wider viewing angles than conventional TFT displays.One of the main advantages of this module is its high-brightness, with a luminance of 500 nits, making it easy to see and use in bright environments, such as outdoors. The ST7272A driver IC provides stable and reliable performance, while the normally black display mode ensures excellent contrast and visibility.

1. With its 54-pin RGB interface, the TFT035B034 is easy to integrate into a wide range of products. Its large active area of 70.08×52.56 mm also makes it an excellent choice for applications where a larger display is required. The module has an outline dimension of 76.9×63.9×3.2 mm, making it a compact and versatile module that can be used in various industries such as automotive, medical, industrial, and consumer electronics.

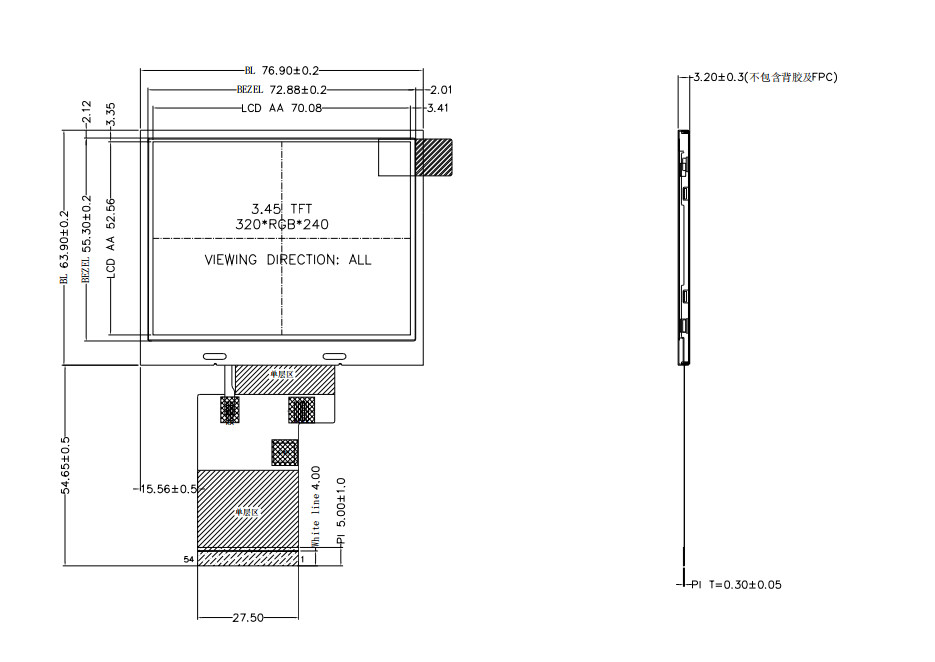

Mechanical Diagram

3.5 inch 320x240 IPS LCD module normally black with RGB interface-01 (2)
