TFT035B110

3.5” 320×480 TN TFT LCD with Driver IC ILI9488

Keyword

Product Description

● Size: 3.5 inch

● Resolution: 320xRGBx480

● Outline dimension: 54.46(H)*82.94(V)*2.15(T) mm

● Active area: 48.96(H)*73.44(V)mm

● Driver IC: ILI9488

● Display Mode: Normally White

● Number of Colors:262K

● Viewing Direction: 12 o’clock

● Contrast Ratio: 500

● Luminance: 300cd/m2 Typ.

● Light Source: 6 LED light

● Interface: 24 pin MCU 8BIT

● Operating Temperature: -20~+70 ℃ – 20

● Storage Temperature: -30~+80 ℃

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Item	Specification	Unit
LCD Size	3.5”	inch
Panel Type	TN	-
Resolution	320RGBx480	Pixel
Display Mode	Normally White
Number of Colors	262K	-
Viewing Direction	12 O clock	-
NTSC	60%	-
Contrast Ratio	500	-
Luminance	300	cd/m2
Module Size	54.46(H)82.94(V)2.15(T)	mm
Panel Active Area	48.96×73.44	mm
Pixel Pitch	0.153×0.153	mm
Pixel Arrangement	RGB-stripe
Driver IC	ILI9488	-
Interface	24PIN MCU 8BIT	-

The TFT035B110 is a 3.5 inch TFT LCD display that offers a resolution of 320xRGBx480, delivering sharp and clear images with vibrant colors.	The TFT035B110 is designed to be easy to use and integrate with other devices. It utilizes the ILI9488 driver IC, which is a reliable and efficient driver that ensures good display performance.
The display has a normally white display mode and can display up to 262K colors. The viewing direction is 12 o’clock, making it easy to view the display from various angles.	With a contrast ratio of 500 and a luminance of 300cd/m2 (typical), the TFT035B110 offers good image quality with high contrast and brightness.

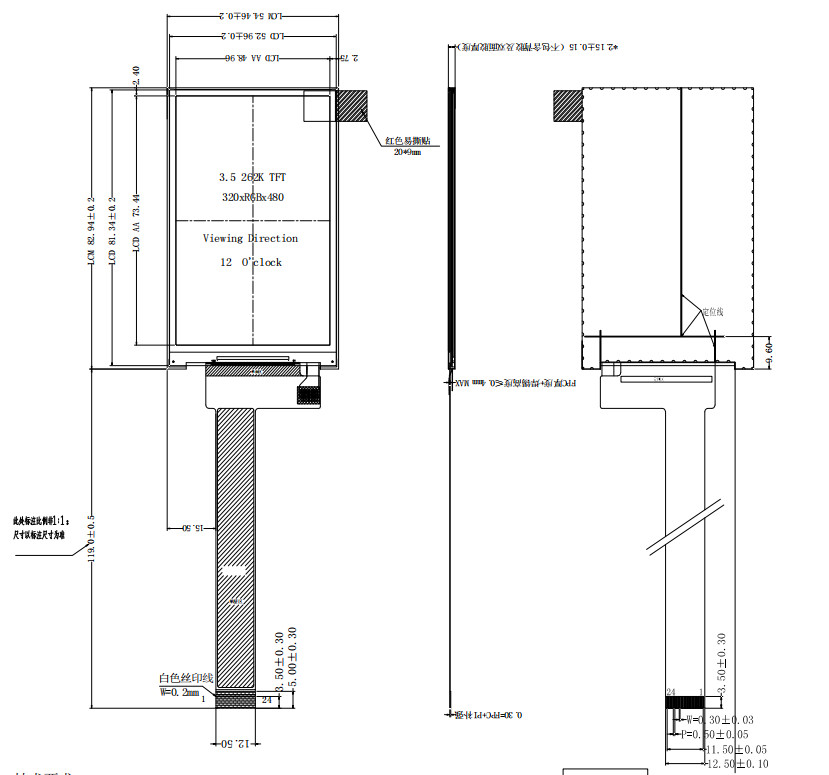

Mechanical Diagram

3.5” 320x480 TN TFT LCD with Driver IC ILI9488 (2)

Pin Assignments

1 RESET Chip reset signal

2-9 DB7~DB0 MCU parallel interface data bus

10 RS Display data/command selection pin in parallel interface

11 CS Chip select pin

12 WR Write enable in MCU parallel interface

13 RD Read enable in 8080 MCU parallel interface

14 LEDK Backlight cathode

15 LEDK Backlight cathode

16 LEDA Backlight anode

17 LEDA Backlight anode1

18 VCC Analog Power Supply for LCM（2.8V）

19 VCC Analog Power Supply for LCM（2.8V）

20 GND Ground

21 GND Ground

22-23 NC

24 TE synchronize MCU to frame memory

Product Usage

Our LCD can be widely used in home appliances, automotive meters, wearable devices, communication equipment, medical equipment, financial POS machines, ETC electronic tags and other fields.
