TFT035Y044

240×320 3.5 inch IPS TFT LCD with GC9307

Keyword

Product Description

①　TFT Size: 3.5 inch IPS TFT LCD

②　Resolution: 240xRGBx320

③　Outline dimension: 54.5(H)*83(V)*2.15(T) mm

④　Active area: 51.27(H)*68.36(V) mm

⑤　Driver IC: GC9307N

⑥　Display Mode: Normally Black

⑦　Viewing Direction: 80/80/80/80

⑧　Luminance: 300 Min；350cd/m2 Typ.

⑨　Light Source: 10 LED light

⑩　Interface: 24 pin MCU

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Product Name	TFT035Y044-A0
Display Mode	3.5 inch 240X3200 IPS, 16.7M color transmissive, normally black
Driver IC	GC9307N
Viewing Direction	All
Luminance	350 cd/m2 typ.
Operating Temperature:	-10°- +60°
Storage Temperature:	-20°- +70°
Outline dimension(mm)	54.5(H)83(V)2.15(T) mm
AA area(mm)	51.27(H)*68.36(V) mm
Interface Type	24PIN MCU Interface

The 3.5” TFT is equipped with a GC9307N driver IC, which ensures seamless performance and excellent visual quality. The display mode is usually black, which enhances color contrast and produces deeper blacks.

Featuring 80/80/80/80 viewing angles and 350 cd/m2 typical brightness, the TFT035Y044-A0 provides wide viewing angles and bright and vivid images even in bright environments.

The display is designed with a 24-pin MCU interface to ensure compatibility with a wide range of devices and systems.

With an operating temperature range of -10~+60°C – 20°C and a storage temperature range of -20~+70°C, the display is suitable for a variety of applications and environments.

The TFT035Y044-A0 is equipped with 10 LED lamps to provide reliable and efficient backlighting.

Mechanical Diagram

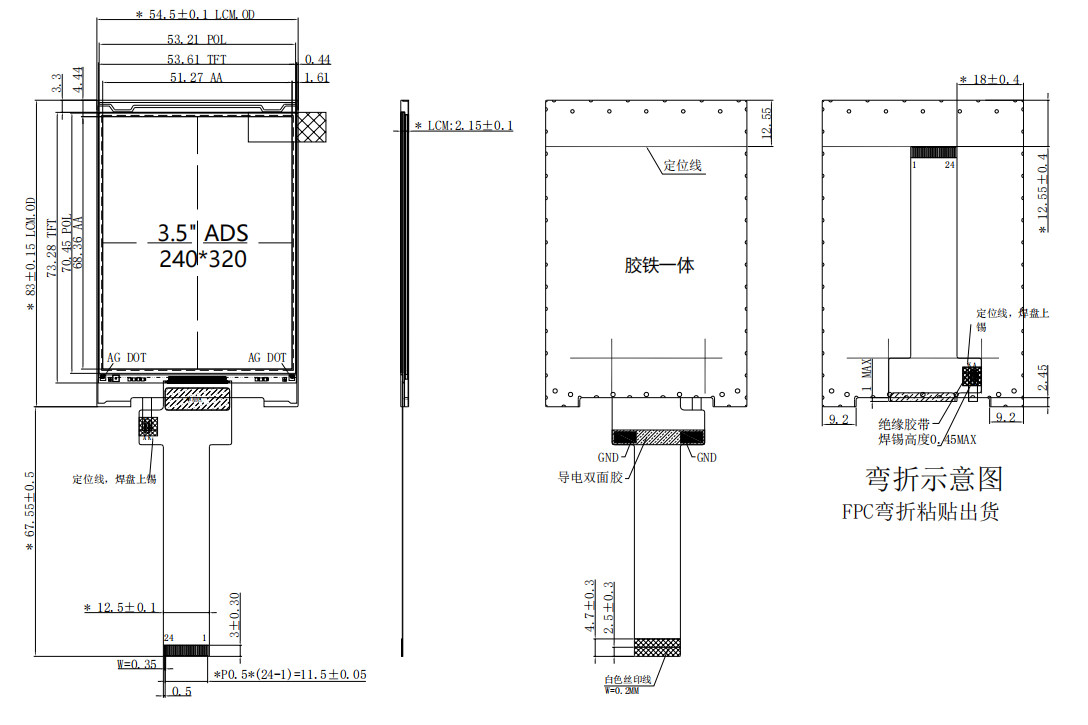

240x320 3.5 inch IPS TFT LCD with GC9307-01 (2)

*Mechanical drawing(TFT035Y044)
