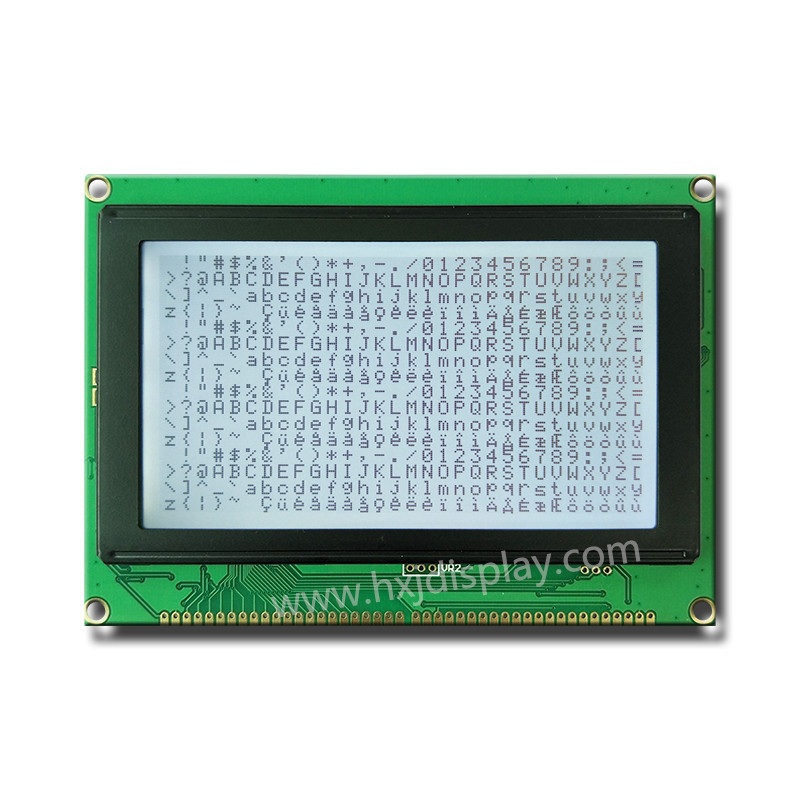

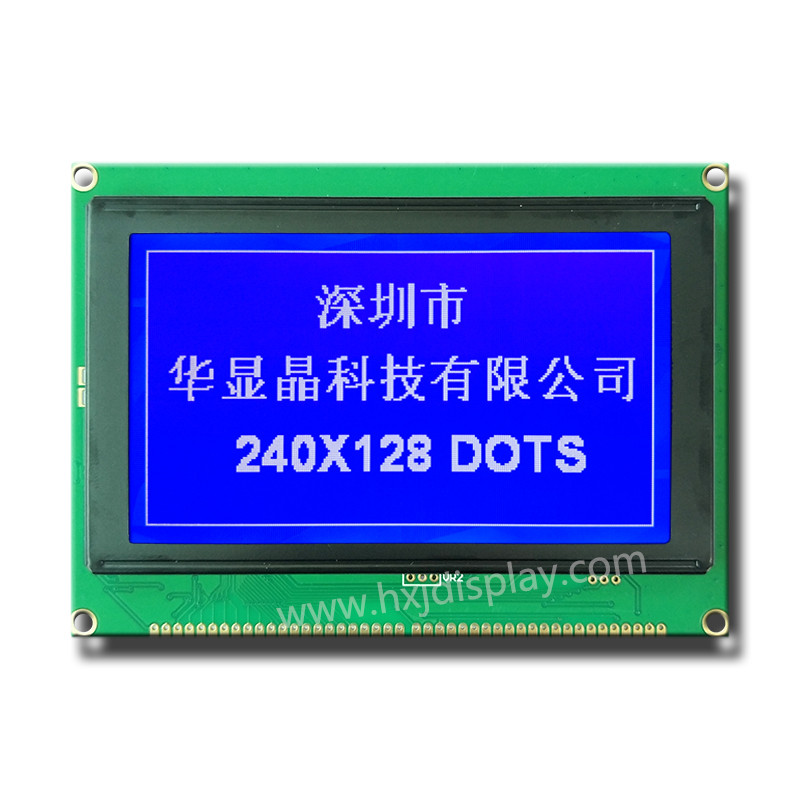

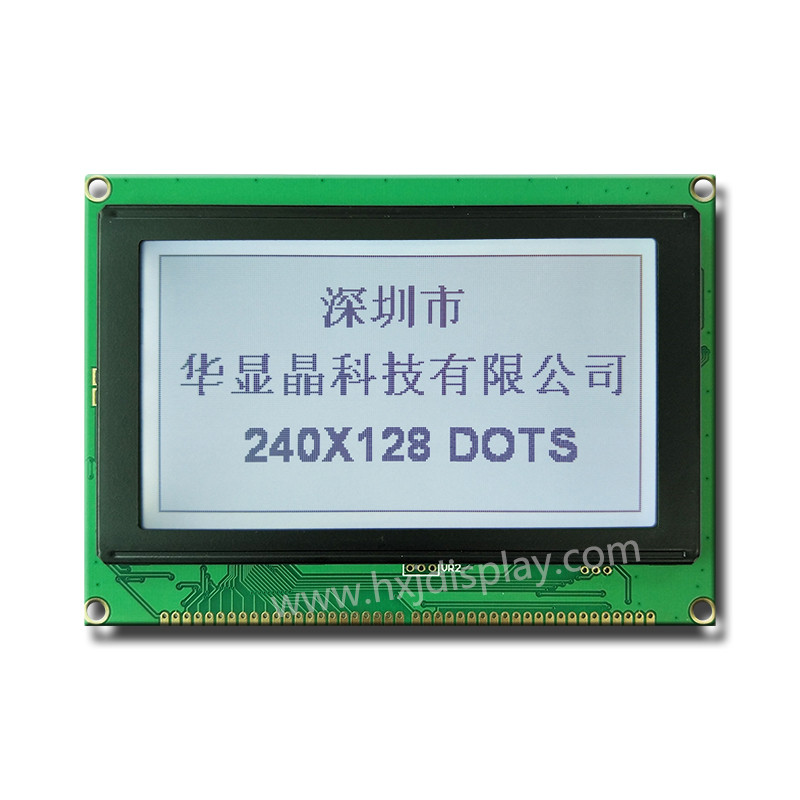

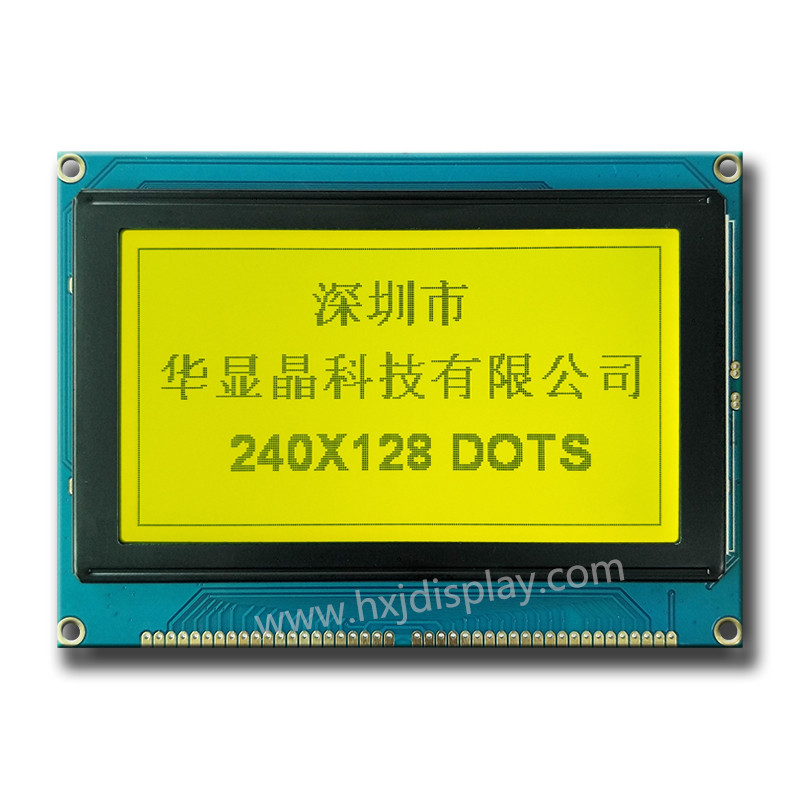

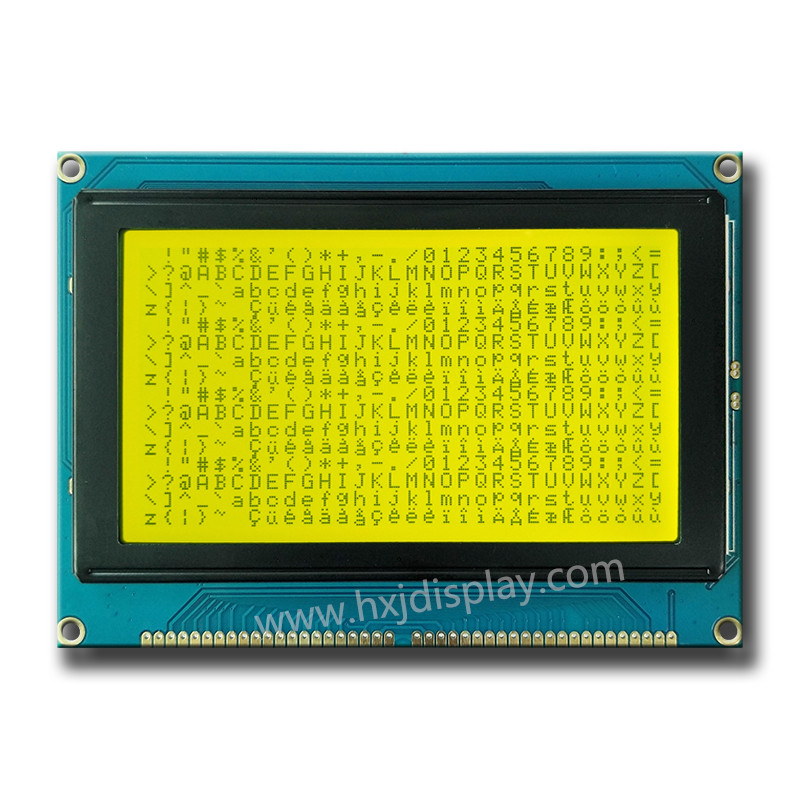

CONTACT NOWProduct Description
|
Module No.: |
HSM240128B-1 |
|
Display Type: |
240 x 128 Dots |
|
Encapsulation: |
COB |
|
Outline Size: |
144 x 104 x 12 mm |
|
Viewing Area: |
114 x 64 mm |
|
Screen Color: |
Yellow-Green/Blue/Gray |
|
Backlight Color: |
Yellow-Green/Green/White/Blue/Orange/Red |
|
Backlight: |
Side LED |
|
Driver IC: |
RA6963 |
|
Connector: |
Conductive Silicon Rubber |
|
Pin Number: |
22/21 |
|
Interface: |
8 BIT bus MPU interface |
|
Driver Condition: |
1/128 Duty,1/12 Bias |
|
Viewing Direction: |
6 O’Clock |
|
Operating Voltage: |
5V/3.3V |
|
Operating Temperature: |
-20～+70℃ |
|
Storage Temperature: |
-30～+80℃ |
Interface Pin Description
INT1
| Pin No. | Symbol | Function |
| 1 | FG | Frame(Bezel) |
| 2 | VSS | Ground (0V) |
| 3 | VCC | Power supply input for driver IC (+5V) |
| 4 | VO | LCD driver supply voltages, Contrast Adjust |
| 5 | WR | Data write, Write data into T6963C when WR=L |
| 6 | RD | Data read, Read data from T6963C when RD=L |
| 7 | CS | L: Chip enable |
| 8 | C/D | WR=L,C/D=H: Command Write C/D=L:Data writeRD=L,C/D=H: Status Read C/D=L:Data read |
| 9 | N.C | |
| 10 | RST | H: Normal L:Initialize T6963C |
| 11–18 | DB0~DB7 | Data bus line |
| 19 | FS | Pins for selection of font, H=6X8, L=8X8 |
| 20 | VEE | Negative Voltage output |
| 21 | LED+ | BACKLIGHT+ （5V） |
| 22 | LED- | BACKLIGHT- （0V） |
INT2
|
Pin No. |
Symbol |
Function |
|
1 |
FG |
Frame(Bezel) |
|
2 |
VSS |
Ground (0V) |
|
3 |
VCC |
Power supply input for driver IC (+5V) |
|
4 |
VO |
LCD driver supply voltages, Contrast Adjust |
|
5 |
WR |
Data write, Write data into T6963C when WR=L |
|
6 |
RD |
Data read, Read data from T6963C when RD=L |
|
7 |
CS |
L: Chip enable |
|
8 |
C/D |
WR=L,C/D=H: Command Write C/D=L:Data write
RD=L,C/D=H: Status Read C/D=L:Data read |
|
9 |
RST |
H: Normal L:Initialize T6963C |
|
10–17 |
DB0~DB7 |
Data bus line |
|
18 |
FS |
Pins for selection of font, H=6X8, L=8X8 |
|
19 |
VEE |
Negative Voltage output |
|
20 |
LED+ |
BACKLIGHT+ （5V） |
|
21 |
LED- |
BACKLIGHT- （0V） |

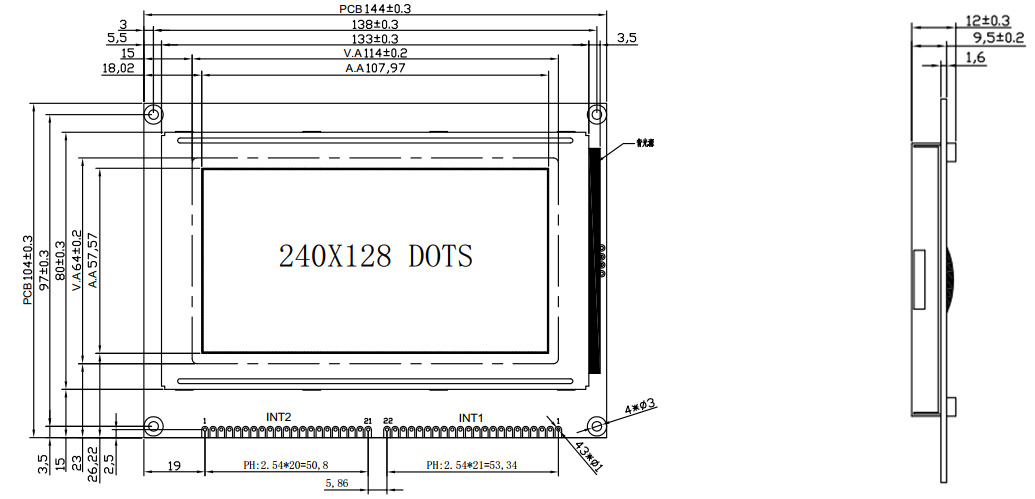

Mechanical Diagram
