TFT024B045

2.4 inch 240×320 IPS LCD module normally black

Keyword

2.4 inch LCD screen with MCU interface

1. The TFT024B045 is a high-resolution IPS TFT LCD display with a resolution of 240×320 pixels, making it ideal for displaying detailed images and videos. Its small outline dimension of 42.72*60.26*2.2 mm and active area of 36.72*48.96 mm makes it suitable for use in compact electronic devices.The display features a driver IC, ST7789V, which facilitates smooth and fast display of images.

2. With 24 pins and an MCU 16bit interface, the TFT024B045 is easy to integrate into electronic systems. It can be used in a variety of devices, including mobile phones, cameras, medical equipment, and industrial systems.

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

No.	Item	Specification	Unit
1	LCD Size	2.4	inch
2	Panel Type	IPS	-
3	Resolution	240x320	Pixel
4	Display Mode	Normally Black	-
5	Viewing Direction	All	-
6	Module Size	42.72×60.26×2.2	mm
7	Panel Active Area	36.72X48.96	mm
8	Driver IC	ST7789V	-
9	Light Source	4 LED lights	-
10	Interface	MCU 16 Bit	-
11	Operating Temperature	-20~+70	℃
12	Storage Temperature	-30~+80	℃

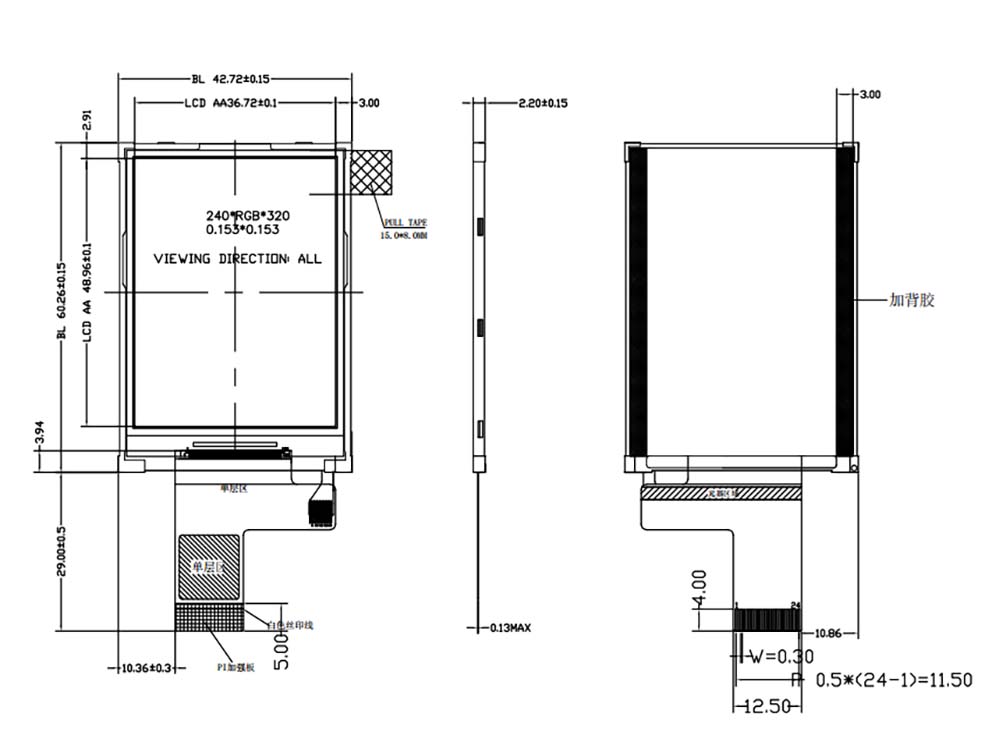

Mechanical Diagram

2.4 inch 240x320 IPS LCD module normally black-02

PIN	SYMBLE	PIN	SYMBLE	PIN	SYMBLE
1	VCC	4	RESET	7	WR
2	GND	5	CS	8	RD
3	LEDA	6	RS	9-24	DB0-15
