TFT024B208

2.4″ 240×320 IPS TFT QVGA ST7789T3 45 Pin RGB SPI

Keyword

Essential details:

● Display Size: 2.4 inch

● Model Number: TFT024B208-B0

● lcd Type: IPS TFT Transmissive

● Resolution: 240×320

● Viewing Angle: All O’clock

● Outline Dimension: 42.72(H)*60.26(V)*2.40(D)

● Active Area: 36.72*48.96

● Driver IC: ST7789T3

● Pin number: 45

● Interface: RGB-SPI

● Touch panel: Support Customization

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Products Description

A 2.4 inch IPS TFT LCD component is a type of small LCD screen that is commonly used in portable electronic devices such as smartphones, smartwatches, and digital cameras. IPS (In-Plane Switching) is a screen technology that provides wider viewing angles and better color reproduction compared to other LCD technologies.The TFT (Thin Film Transistor) technology is used to control the individual pixels on the screen, making it possible to display images and videos. The LCD component includes a backlight that illuminates the display from behind, allowing the user to see the images on the screen.These components often have a display resolution of 240×320 pixels and are capable of displaying up to 16.7 million colors. They may also have touch screen functionality or be used in conjunction with a separate touch panel for user input.

No.	Item	Specification	Unit
1	LCD Size	2.4”	inch
2	Panel Type	IPS	-
3	Resolution	240xRGBx320	Pixel
4	Display Mode	Normally Black	-
5	Number of Colors	262K	-
6	Viewing Direction	12 o’clock	-
7	NTSC	70%	-
8	Contrast Ratio	1000	-
9	Luminance	300	cd/m2
10	Module Size	42.72(H)60.26(V)2.40(D)	mm
11	Panel Active Area	36.72*48.96	mm
12	Pixel Pitch	0.051*0.153	mm
13	Pixel Arrangement	RGB-stripe
14	Driver IC	ST7789T3	-
15	Light Source	4 LED
16	Interface	45 PIN SPI-RGB Interface	-

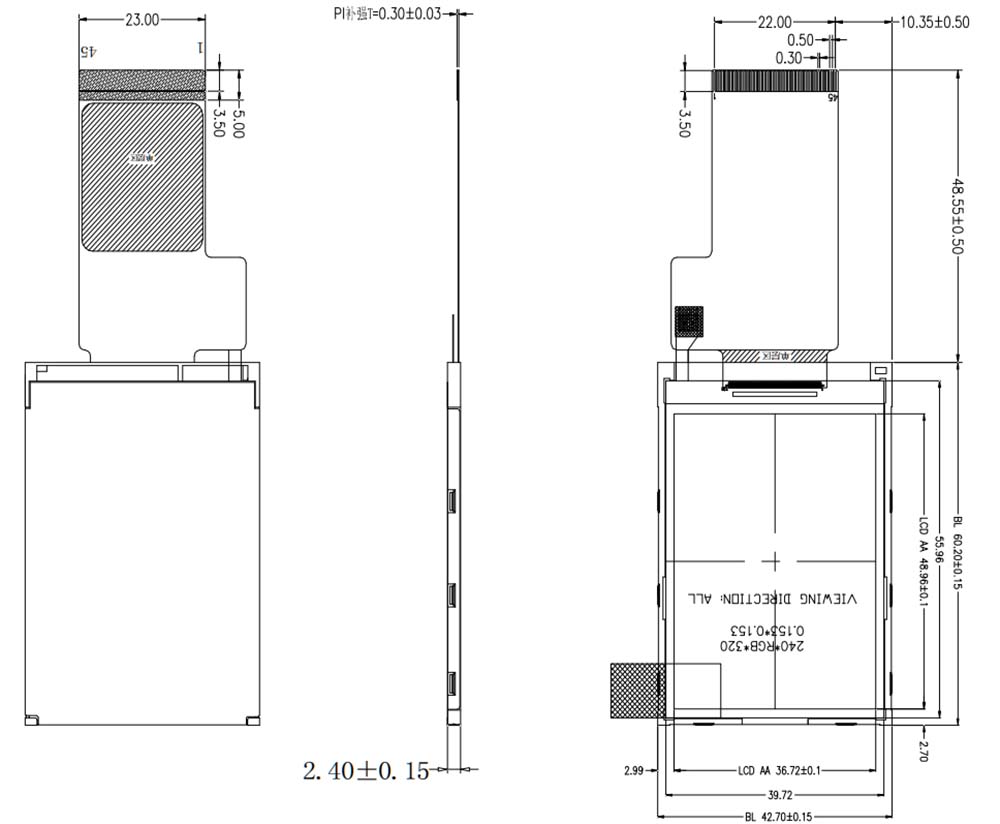

Mechanical Diagram

2.4 240x320 IPS TFT QVGA ST7789T3 45 Pin RGB SPI-02

2.4" TFT Liquid Crystal Displays are color active matrix LCD screen that incorporates an amorphous silicon thin-film transistor.

The TFT024B208 displays include a color TFT-LCD panel, driver IC, FPC, and a backlight unit. Available customized options include Resistive/Capacitive Touch Panel (RTP or CTP).

The TFT024B208 2.4" TFT liquid crystal displays provide a module display area of 240 x 320 pixels.

45 PIN FPC, RGB-SPI interface, plug-in connection type, pin number and the length of the FPC can be customized.

2.4 240x320 IPS TFT QVGA ST7789T3 45 Pin RGB SPI-02 (2)

Notes of 2.4 inch RGB-SPI interface

Typical Operation Conditions

Item	Symbol	Min.	Typ.	Max.	Unit
Analog Supply Voltage	VCI	2.7	2.8	2.9	V
Digital Supply Voltage	VDD	2.7	2.8	2.9	V
I/O Supply Voltage	IOVCC	1.65	1.8/2.8	3.3	V
Input High Voltage	VIH	0.8*IOVCC	-	IOVCC	V
Input Low Voltage	VIL	0	-	0.2*IOVCC	V
Output High Voltage	VOH	0.8*IOVCC	-	-	V
Output Low Voltage	VOL	-	-	0.2*IOVCC	V

Backlight Circuit Characteristics

Item	Symbol	Min.	Typ.	Max.	Unit
LED Current	IB	-	60	-	mA
LED Voltage	Vf	-	3.2		V
Power Consumption	PBL	-	-	-	mW

Applications

A 2.4 inch TFT display can be used in a variety of applications, including:

1. Digital cameras

2. Portable media players

3. Gaming consoles

4. Handheld medical devices

5. Smartwatches

6. Industrial control systems

7. Home automation systems

8. Car navigation systems

9. POS systems

The small size of a 2.4 inch TFT display makes it ideal for portable and handheld devices, while its high resolution and color depth make it a good choice for displaying images, charts, and other graphical data.

Kindly contact us to check the datasheet.
