HSM19264A-1

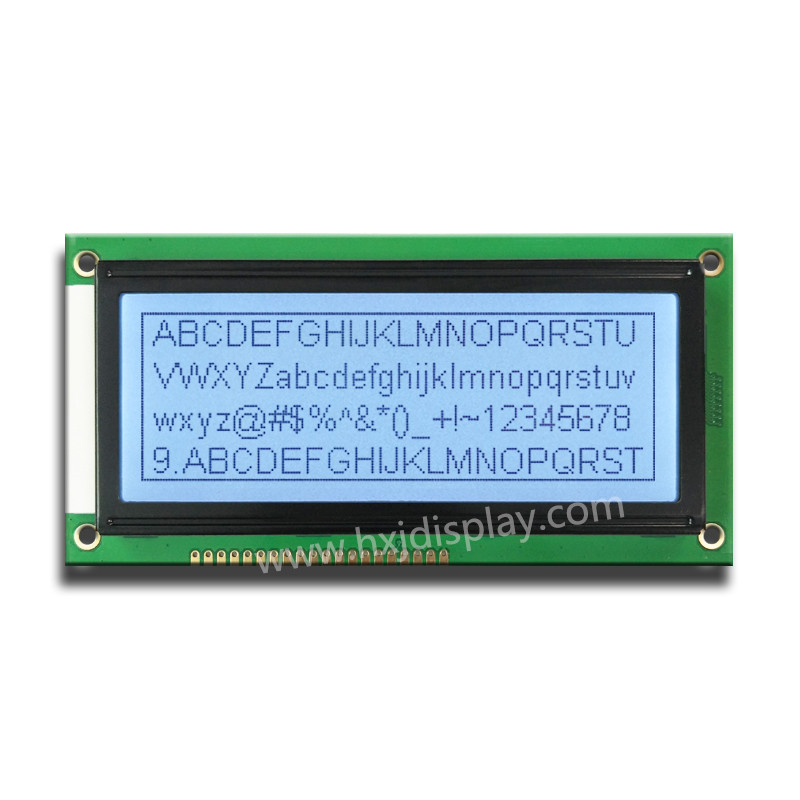

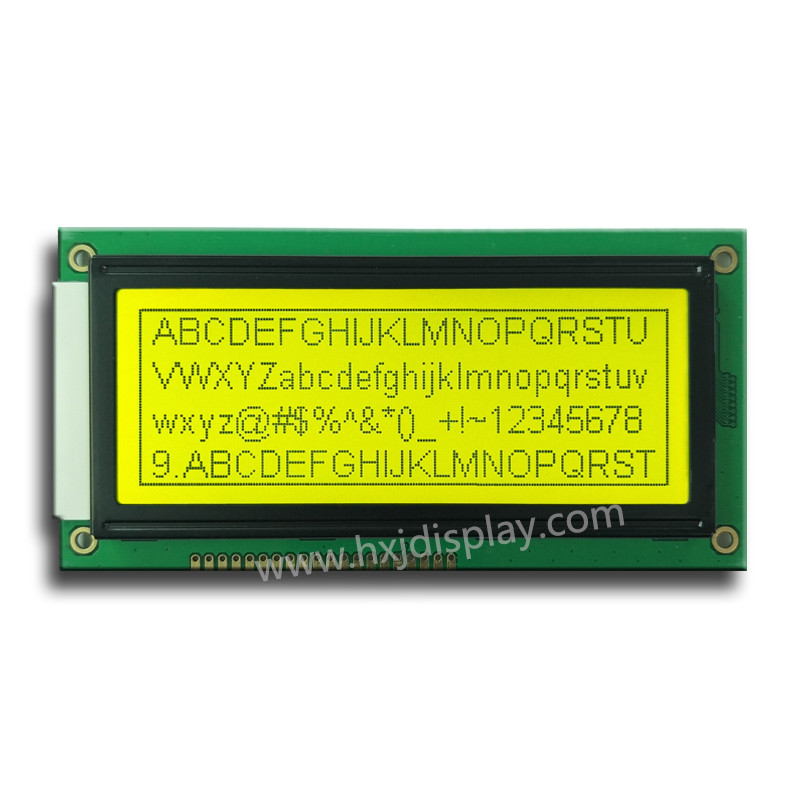

192×64 blue Graphic LCD Module

Keyword

Graphic LCD 192 x 64 (dots)

● STN-YG / STN-Blue / STN-Gray /FSTN-Gray

● +3.3V / +5.0V power supply

● Viewing Direction: 6H / 12H

● Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Module No.:	HSM19264A-1
Display Type:	192 x 64 Dots
Encapsulation:	COB
Outline Size:	130 x 65 x 12.8 mm
Viewing Area:	104 x 39 mm
Screen Color:	Yellow-Green/Blue/Gray
Backlight Color:	Yellow-Green/Green/White/Blue/Orange/Red
Backlight::	Side LED
Driver IC:	AIP31108
Connector:	Conductive Silicon Rubber
Pin Number:	20
Interface:	8-bit MPU interface
Driver Condition:	1/64 Duty,1/9 Bias
Viewing Direction:	6 O’Clock
Operating Voltage:	5V/3.3V
Operating Temperature:	-20～+70℃
Storage Temperature:	-30～+80℃

Interface Pin Description

No.	Symbol	Function
1	VSS	Ground (0V)
2	VDD	Supply Voltage for Logic (+5V )
3	VO	Contrast Adjustment
4	RS	Data/Instruction Select
5	R/W	Read/Write Select
6	E	Enable Signal
7–14	DB0—DB7	Data Bus
15	CS1	Chip Select U4，active “L”
16	RST	Reset signal , active “L”
17	CS2	Chip Select U3，active “L”
18	CS3	Chip Select U2，active “L”
19	VOUT	Output voltage for LCD driving
20	LED_A	LED Power Supply + (5V)

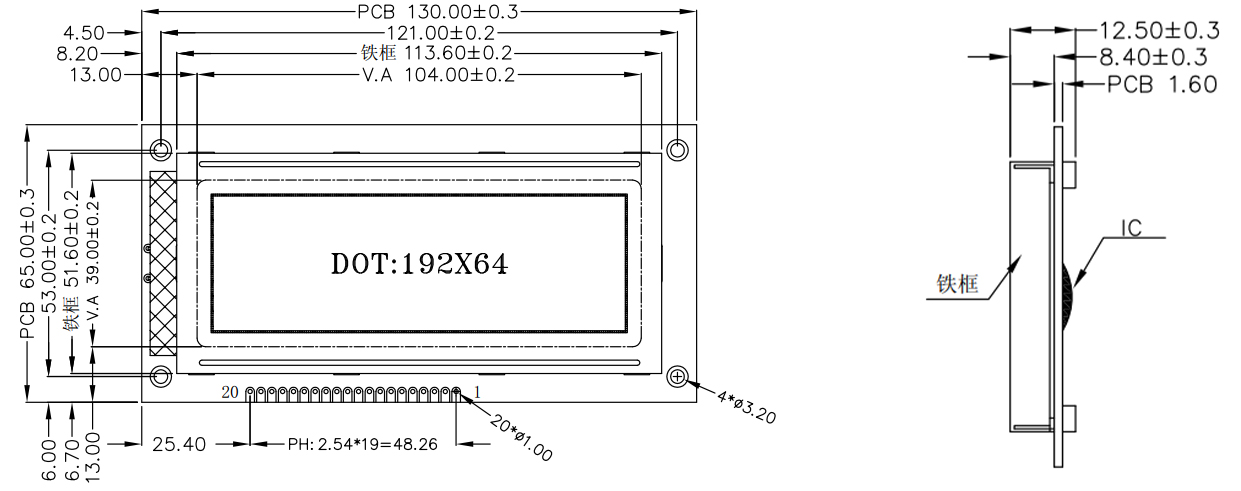

Mechanical Diagram

LCD Manufacturing Process

Product Range

1.COB LCD Module(character lcd module{8x1,8x2,16x1,16x2,16x4,20x2,20x4,40x2,40x4} and graphic lcd module{122x32,128x64,192x64,160x128,240x64,240x128,320x240})

2.COG LCD and COG LCD Module

3.TFT LCD Display: 0.96", 1.0", 1.3", 1.44" ,1.54", 1.8", 2.0", 2.2", 2.4", 2.8", 3.2", 3.5", 4.0", 4.3", 4.5", 5", etc

4. OLED Module: 0.42",0.49",0.66", 0.69", 0.87", 0.91", 0.96", 1.3", 1.54", etc

5. Custom segment LCD Display and segment LCD Module(TN/STN/FSTN/HTN/VA)

6. Backlight

ODM is accepted

Various LCD Display Mode Available

Various Backlight Color Available

Various Temperature Range Available

Main Application

Telecommunication Devices	Telephone, inter phone, watch, radio, etc.
Home Appliances	washing machine, refrigerator
Industrial Control	Numerically-controlled machine tool
Instrument and Apparatus	Tester, Medical instruments
Vehicle-mounted Digital	MP3, MP4 and vehicle-mounted air conditioner
Mining	Mine's lamp charger, gas tester
Marine	Salinity tester
