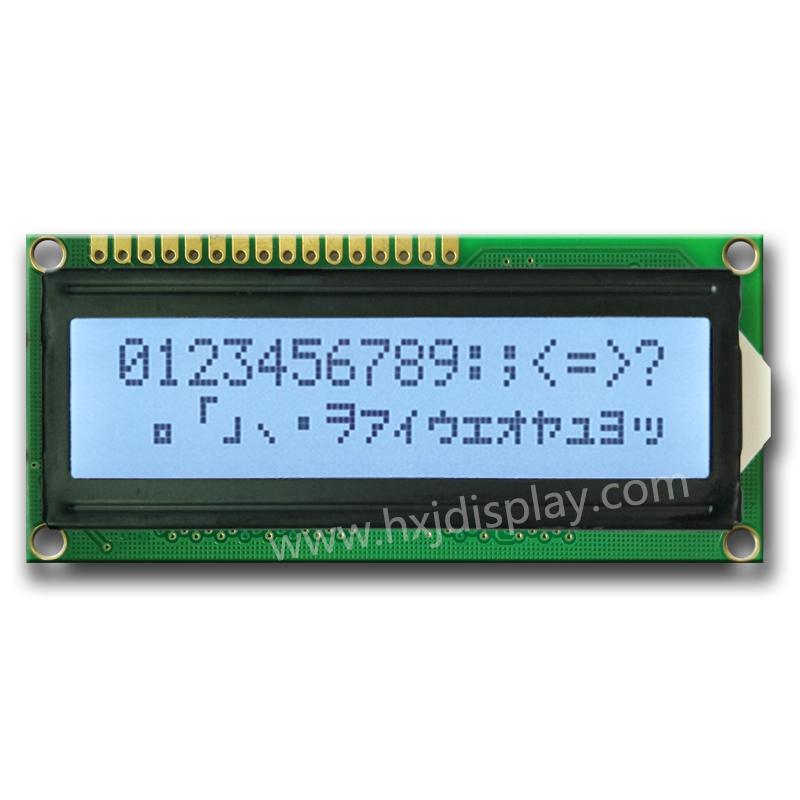

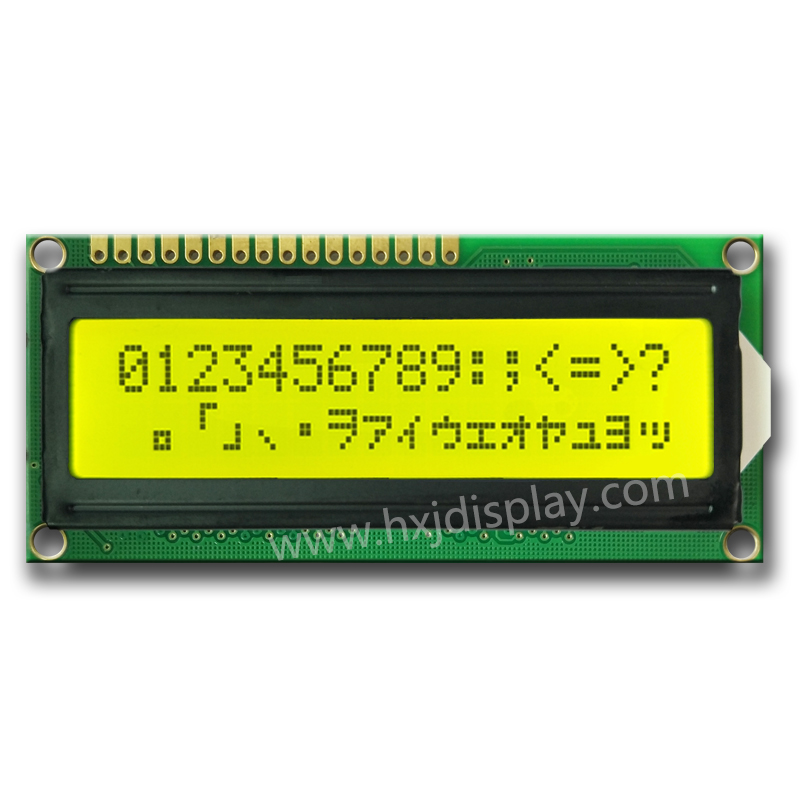

16×2 lcd module low power 1602

Character LCD 16×2 (5 x 8 dots)

● STN-YG / STN-Blue / STN-Gray /FSTN-Gray

● +3.3V / +5.0V power supply

● Viewing Direction: 6H / 12H

● Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB

● Fonts: English-Japanese / English-European / English-Cyrillic (Russian)

Product Description

Module No.:	HSM1602D
Display Type:	16 Characters x 2 Lines

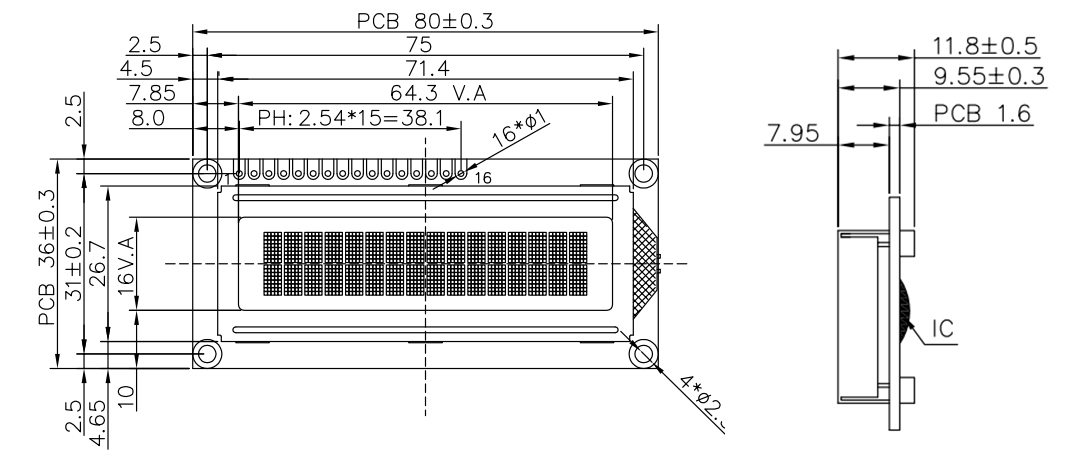

Outline Size:	80 x 36 x11.8 mm
Viewing Area:	64.3 x 16 mm
Encapsulation:	COB
Screen Color:	Yellow-Green/Blue/Gray
Backlight Color:	Yellow-Green/Green/White/Blue/Orange/Red
Backlight::	Side LED
Driver IC:	AIP31066
Connector:	Conductive Silicon Rubber
Pin Number:	16
Interface:	8-bit MPU interface
Driver Condition:	1/16 Duty,1/5 Bias
Viewing Direction:	6 O’Clock
Operating Voltage:	5V/3.3V
Operating Temperature:	-20～+70℃
Storage Temperature:	-30～+80℃

1.About the lead time:

Q: What is the lead time for sample?
A: 3-7 days.

Q: What is the lead time for production?
A: The lead time is 15-35 days since the sample is approved.

2.Q: What payment terms do you accept?

A: T/T or Paypal or Western Union.

For small amount,100% prepaid before arrange the production.

For big amount,30% deposit before we arrange the production and 70% balance before we send the goods by T/T.

3.Q: what primary product do you make?

A: Our main products are COB,COG,TFT,OLED,lcd glass and backlight.

2.Q: Do you accept OEM?

A: Yes,this is our regular cooperation and business.We accept producing products under clients' brands.

1.High quality. Perfect quality management system, stable quality of raw materials, product quality rate of 98% or more
2.On-time delivery. Ensure that orders are delivered on time and in quantity
3.Full supply chain resources. High demand of raw materials, quality assurance of brand suppliers, perfect management system, ensuring the demand of raw material supply;
4.Constantly optimized manufacturing cost. High degree of automation of production line, comprehensively improve per capita work efficiency, stable product quality, and significantly reduce enterprise production and manufacturing costs; to achieve win-win and value-added mutual enjoyment with customers and employees.
