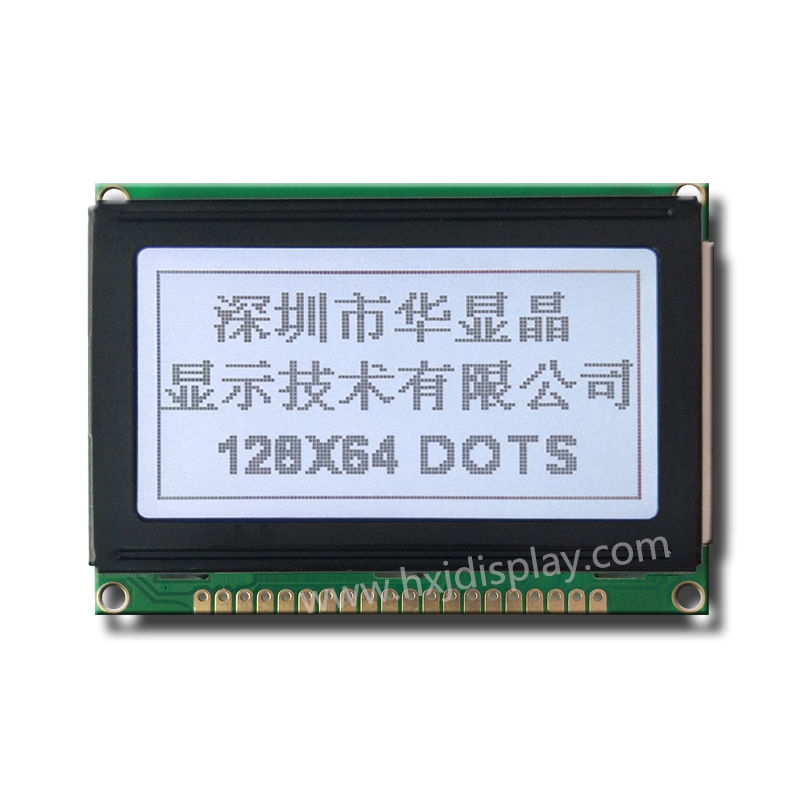

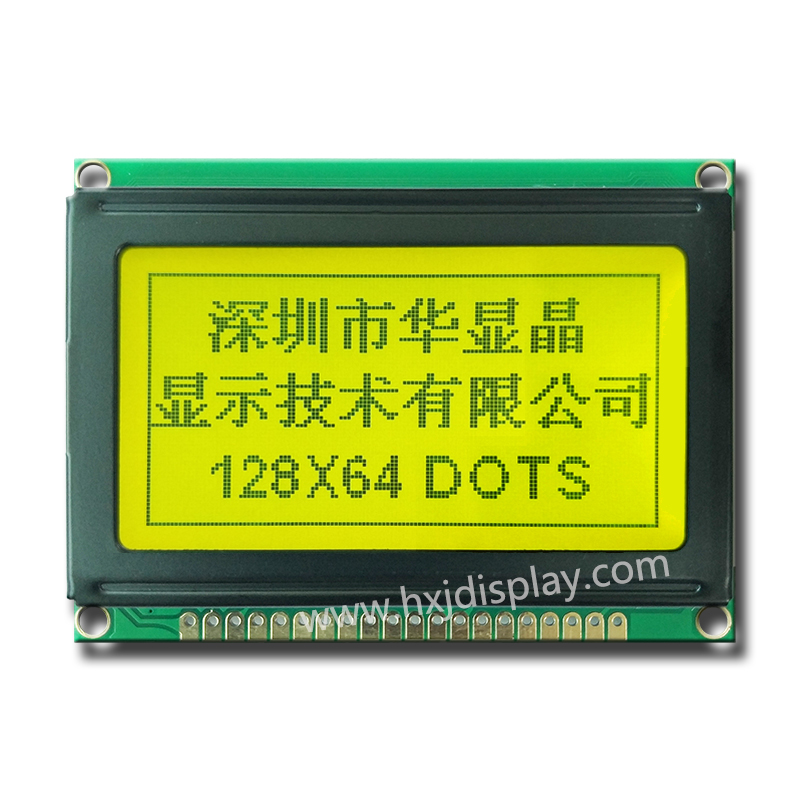

128×64 dot matrix COB LCD module

Graphic LCD 128 x 64 (dots)

● STN-YG / STN-Blue / STN-Gray /FSTN-Gray

● +3.3V / +5.0V power supply

● Viewing Direction: 6H / 12H

● Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB

Product Description

Module No.:	HSM12864A-18
Display Type:	128 x 64 Dots
Encapsulation:	COB

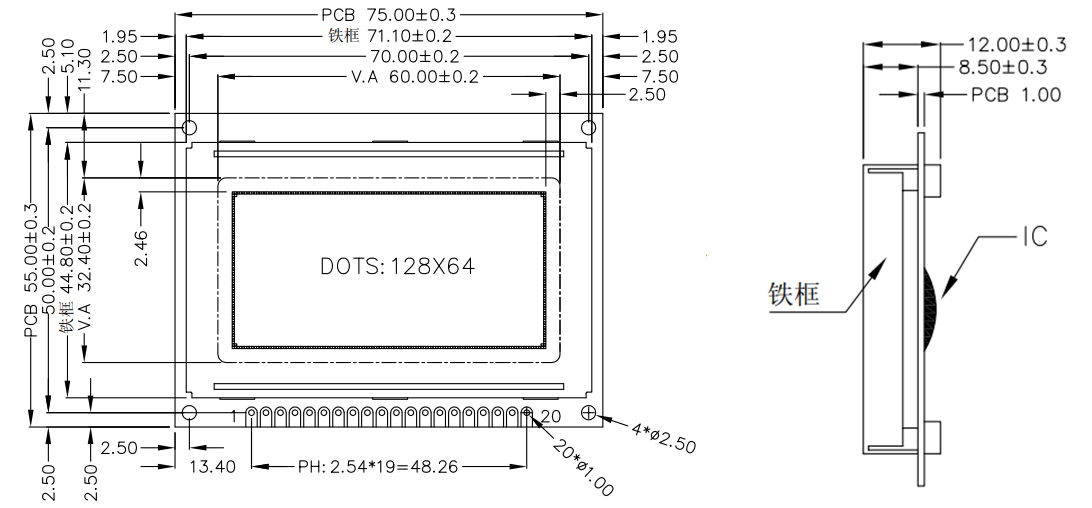

Outline Size:	75 x 55 x 12 mm
Viewing Area:	60 x 32.4 mm
Screen Color:	Yellow-Green/Blue/Gray
Backlight Color:	Yellow-Green/Green/White/Blue/Orange/Red
Backlight::	Side LED
Driver IC:	AIP31108
Connector:	Conductive Silicon Rubber
Pin Number:	20
Interface:	8-bit MPU interface
Driver Condition:	1/64 Duty,1/9 Bias
Viewing Direction:	6 O’Clock
Operating Voltage:	5V/3.3V
Operating Temperature:	-20～+70℃
Storage Temperature:	-30～+80℃

No.	Symbol	Function
1	VDD	Supply Voltage for Logic (+5V )
2	GND	Ground (0V)
3	VO	Contrast Adjustment
4–11	DB0—DB7	Data Bus
12	CSA	Chip Select active “L”
13	CSB	Chip Select active “L”
14	RST	Reset signal , active “L”
15	R/W	Read/Write Select
16	RS	Data/Instruction Select
17	E	Enable Signal
18	VOUT	Output voltage for LCD driving
19	LED_K	LED Power Supply - (0V)
20	LED_A	LED Power Supply +(5V)

Standard paper package:

Package Type: inner package is a standard foam boxes,outer package is corrugated carton.Or according to customer's requirement

Shipping:

(1)1-3 working days for samples.

(2)15-30 working days for large order.

(3)The goods will be shipped by DHL,FedEx,UPS,TNT(door to door service) or your appointed forwarder.
