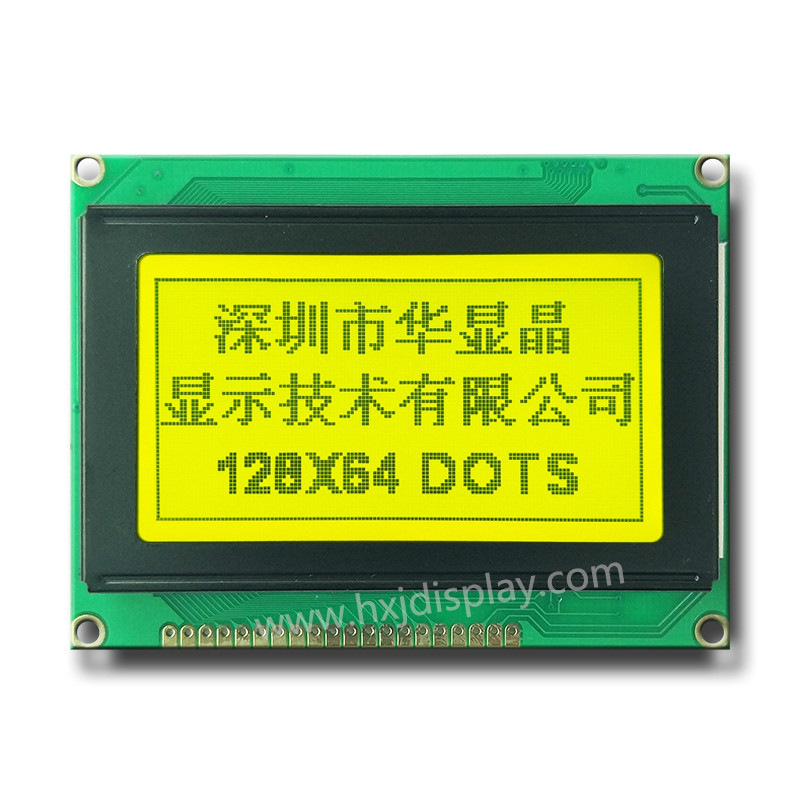

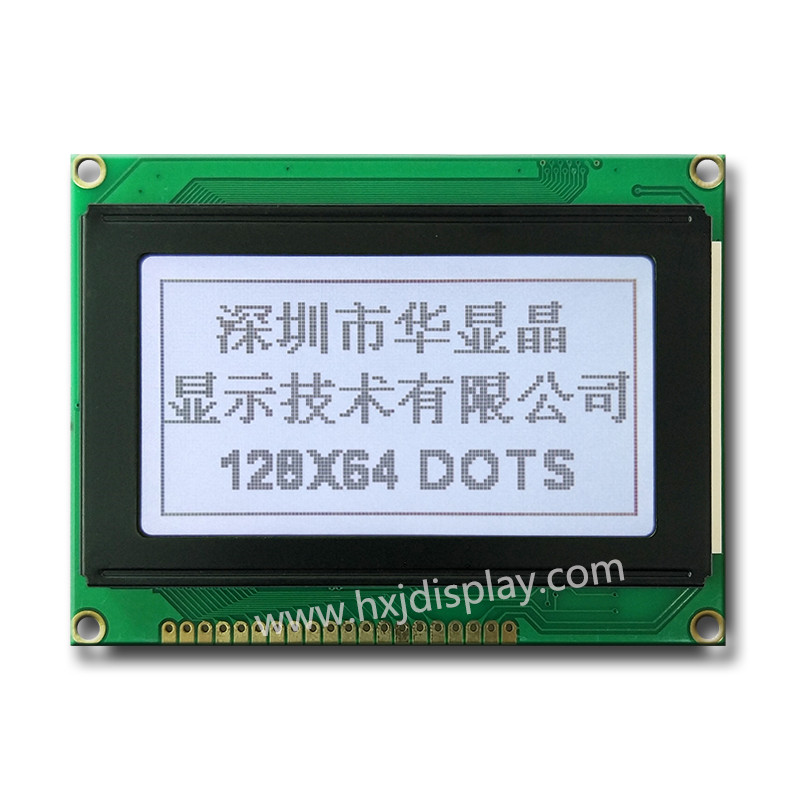

HSM12864J-1

128×64 blue lcd display module KS0108 compatible

Keyword

Graphic LCD 128 x 64 (dots)

● STN-YG / STN-Blue / STN-Gray /FSTN-Gray

● +3.3V / +5.0V power supply

● Viewing Direction: 6H / 12H

● Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Module No.:	HSM12864J-1
Display Type:	128 x 64 Dots
Encapsulation:	COB
Outline Size:	93 x 70 x 13.5 mm
Viewing Area:	70.7 x 38.8 mm
Screen Color:	Yellow-Green/Blue/Gray
Backlight Color:	Yellow-Green/Green/White/Blue/Orange/Red
Backlight:	Side LED
Driver IC:	AIP31108
Connector:	Conductive Silicon Rubber
Pin Number:	20
Interface:	8-bit MPU interface
Driver Condition:	1/64 Duty,1/9 Bias
Viewing Direction:	6 O’Clock
Operating Voltage:	5V/3.3V
Operating Temperature:	-20～+70℃
Storage Temperature:	-30～+80℃

Interface Pin Description

No.	Symbol	Function
1	GND	Ground (0V)
2	VDD	Supply Voltage for Logic (+5V )
3	VO	Contrast Adjustment
4	RS	Data/Instruction Select
5	R/W	Read/Write Select
6	E	Enable Signal
7–14	DB0—DB7	Data Bus
15	CS1	Chip Select active “H”
16	CS2	Chip Select active “H”
17	/REST	Reset signal , active “L”
18	VOUT	Output voltage for LCD driving
19	LED_A	LED Power Supply + (5V)
20	LED_K	LED Power Supply -(0V)

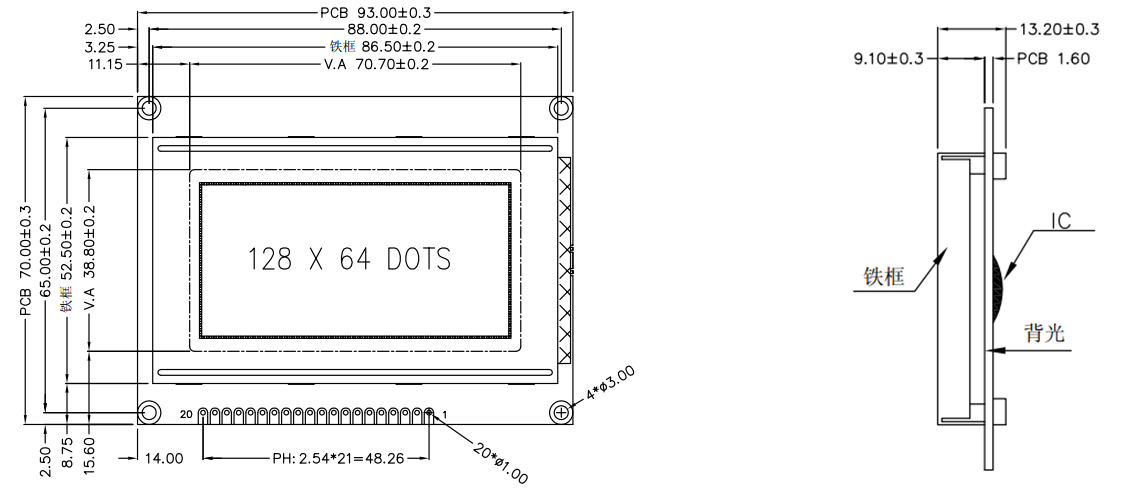

Mechanical Diagram

128x64 blue lcd display module KS0108 compatible-01 (4)
