• 128*64 OLED 0.96″ LCD Display White/Blue
<
>

HP12864-06

128*64 OLED 0.96″ LCD Display White/Blue

Keyword

Our Service

Product pre-after Service

* Inquiry and consulting support.

* One year warranty period.

* Sample testing support.

* Customized product.

* View our Factory.

Payment

* Support T/T.

* Support Paypal and Western Union.

CONTACTCONTACT NOW

Product Description

Module No.:

HP12864-06-KSWG30P096

Structure:

COG

Screen Size:

0.96 inch

Number of Dots:

128 x 64

Color:

Monochrome (White)

Module Size:

24.74 x 16.90 x 1.42 mm

Viewing Area:

22.74 x 11.86 mm

Active Area:

21.74 x 10.86 mm

Driver IC:

SSD1315Z

Interface:

I2C// 3/4-wire SPI

Connector:

FPC

Pin Number:

30

Operating Temperature:

-40~+70℃

Storage Temperature:

-40~+85℃

Interface Pin Description

PIN SYMBOL PIN SYMBOL PIN SYMBOL PIN SYMBOL
1 NC(GND) 9 VDD 17 NC 25 NC
2 C2P 10 BS0 18 D0 26 IREF
3 C2N 11 BS1 19 D1 27 VCOMH
4 C1P 12 NC 20 D2 28 VCC
5 C1N 13 CS# 21 NC 29 VLSS
6 VBAT 14 RES# 22 NC 30 NC(GND)
7 NC 15 D/C# 23 NC
8 VSS 16 NC 24 NC

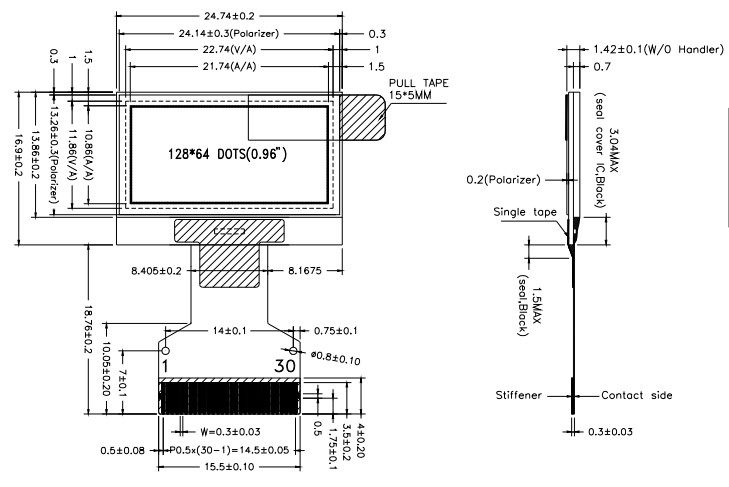

Mechanical Diagram

12864 OLED 0.96 LCD Display WhiteBlue-01 (2)

Product RoadMap

8x1 blue transmissive character lcd-03

Packaging

Size

basis on product size

Weight

standard

Packaging Details

The normal package is paper box(Size: L*W*H). the inner package,we will use foam and anti-static for wrap.
