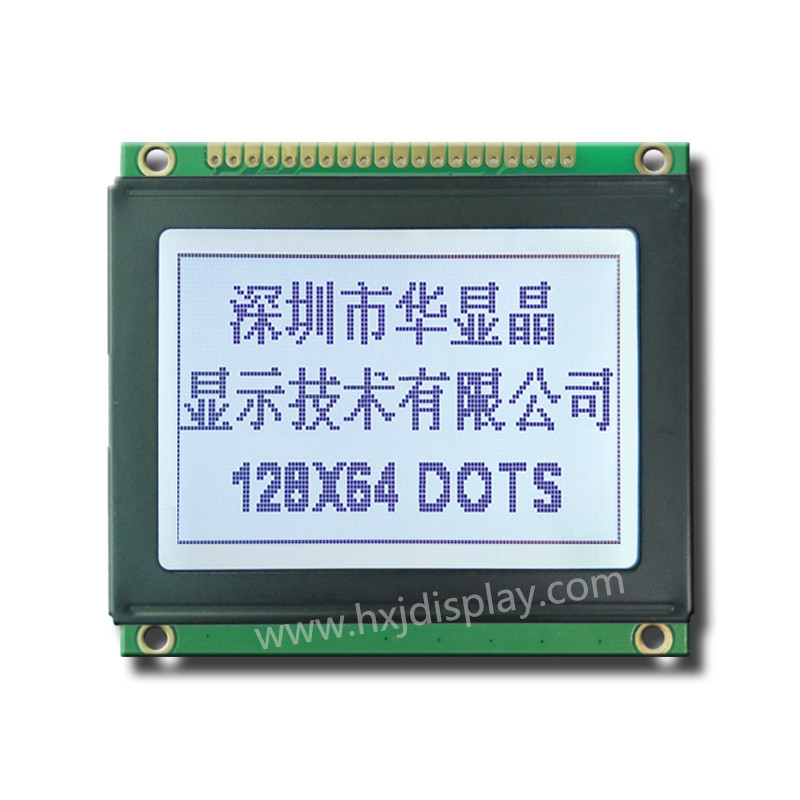

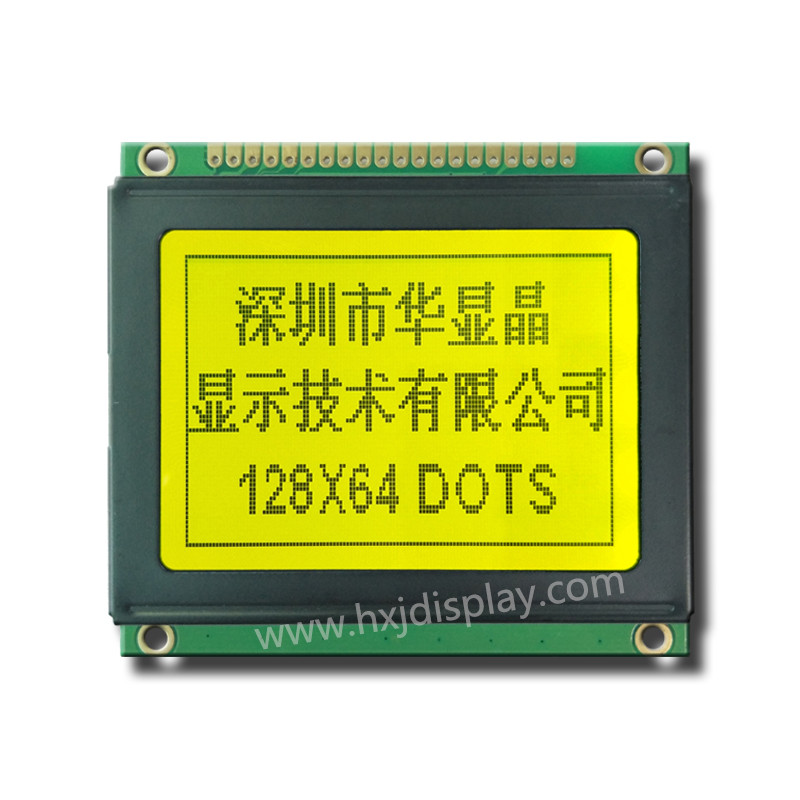

12864 blue transmissive lcd

Graphic LCD 128 x 64 (dots)

● STN-YG / STN-Blue / STN-Gray /FSTN-Gray

● +3.3V / +5.0V power supply

● Viewing Direction: 6H / 12H

● Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB

Product Description

Module No.:	HSM12864S
Display Type:	128 x 64 Dots
Encapsulation:	COB

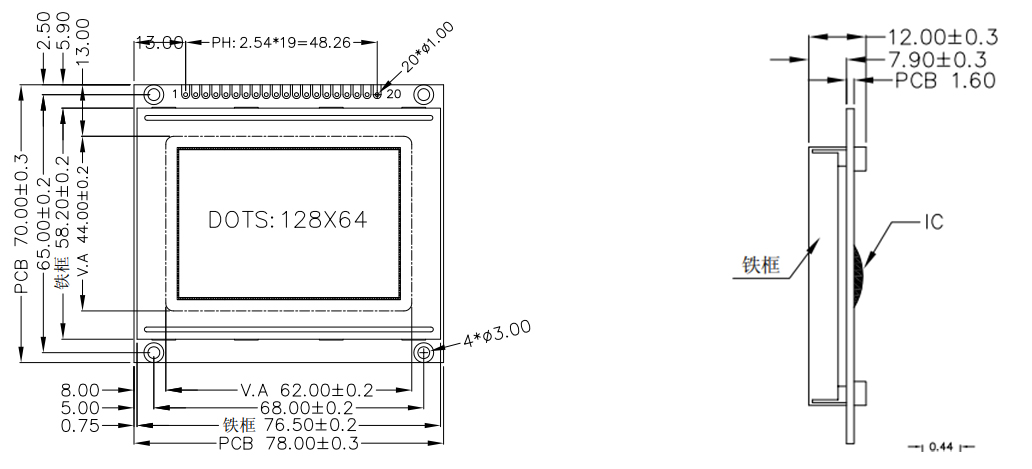

Outline Size:	78 x 70 x 12.3 mm
Viewing Area:	62 x 44 mm
Screen Color:	Yellow-Green/Blue/Gray
Backlight Color:	Yellow-Green/Green/White/Blue/Orange/Red
Backlight::	Side LED
Driver IC:	ST7920
Connector:	Conductive Silicon Rubber
Pin Number:	20
Interface:	8 BIT or Serial bus MPU interface
Driver Condition:	1/32 Duty,1/5 Bias
Viewing Direction:	6 O’Clock
Operating Voltage:	5V/3.3V
Operating Temperature:	-20～+70℃
Storage Temperature:	-30～+80℃

Pin No.	Symbol	Function
1	VSS	Ground (0V)
2	VDD	Power supply input for driver IC (+5V)
3	VO	LCD driver supply voltages
4	RS(CS)	Register select input pin Serial mode: - RS = “H”: D0 to D7 are display data CS=1 :chip enable - RS = “L”: D0 to D7 are control data CS=0 :chip enable
5	RW(SID)	Read write control 0:write 1:read (serial data input)
6	E(SCLK)	Enable trigger (serial clock)
7-10	DB0~DB3	Lower nibble data bus for 8 bit interface
11-14	DB4~DB7	Higher nibble data bus for 8 bit interface and data bus for 4 bit interface
15	PSB	Interface selection:0:serial mode 1:8/4-bits parallel bus mode
16	NC	No used
17	RST	Reset signal
18	VEE	No used
19	LED+	BACKLIGHT+ （5V）
20	LED-	BACKLIGHT- （0V）
