TFT018F058

1.77 inch 128X160 QQVGA TFT LCD GC9106 20 pin MCU8BIT

Keyword

Essential details

● Supplier Type: original manufacturer

● Place of Origin: Guangdong, China

● Brand Name: HXJ

● Size: 1.77 inch / 1.8 inch TFT

● lcd Type: TN TFT Transmissive

● Resolution: 128xRGBX160

● Viewing Angle: TN 6 O’clock

● Outline Dimension: 34.7(H)x46.7(V)x2.25(D)

● Active Area: 28.03×35.04

● Driver IC: GC9106

● Pin number: 20

● Interface: MCU 8 BIT

● Touch panel: Support Customization

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Equipped with the GC9106 driver IC and a 20-pin MCU 8-bit interface, this TFT LCD display ensures smooth and seamless communication.Additionally, the TFT018F058 supports touch panel customization, allowing you to add interactive functionality to your projects.As an original manufacturer from Guangdong, China, HXJ delivers a reliable and high-quality product. Upgrade your projects with the TFT018F058 and enjoy crisp visuals and seamless performance.

Product Name	TFT018F058
Display Mode	1.77 inch TN TFT, 262K color transmissive, normally white
Driver IC	GC9106
Viewing Direction	6 o’clock
Luminance	300 cd/m2 typ.
Operating Temperature:	-20°- +70°
Storage Temperature:	-30°- +80°
Outline dimension(mm)	34.7(H)x46.7(V)x2.25(D)
AA area(mm)	28.03×35.04
Interface Type	20 PIN FPC, MCU Interface

Experience high-quality visuals with the TFT018F058, a 1.77 inch TFT LCD display from HXJ. This display is perfect for projects that require a compact yet vibrant screen.With a resolution of 128×160, you can expect sharp and detailed imagery, bringing your content to life. The TN TFT Transmissive LCD technology ensures excellent color reproduction and clarity.

Featuring a wide viewing angle of TN 6 O’clock, you can comfortably view the display from various perspectives without compromising on image quality.The TFT018F058 has an outline dimension of 34.7mm (H) x 46.7mm (V) x 2.25mm (D), making it compact and easy to integrate into your designs. The active area of 28.03mm x 35.04mm provides ample space to showcase your content.

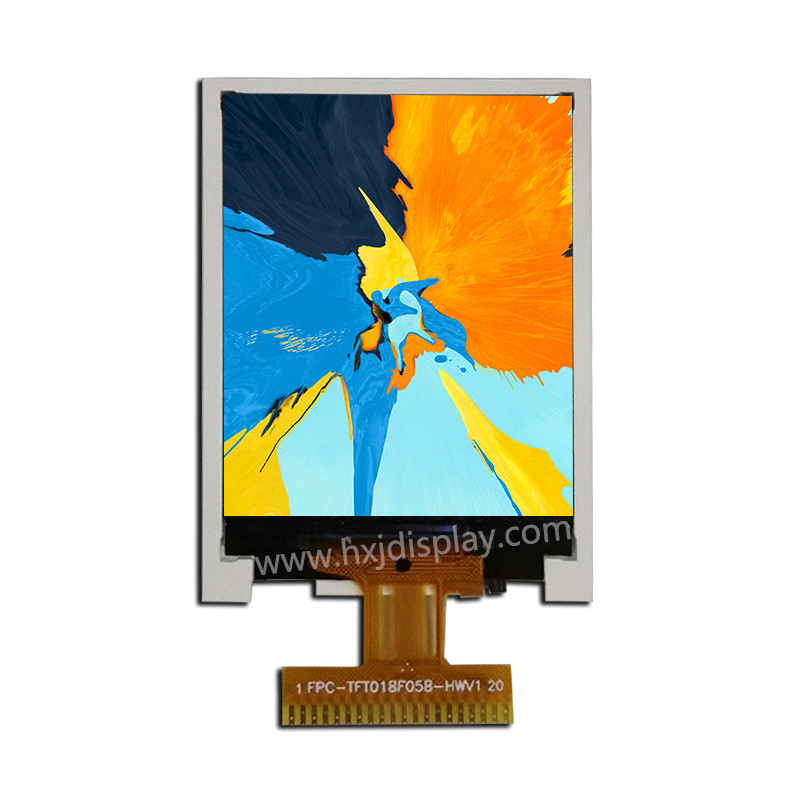

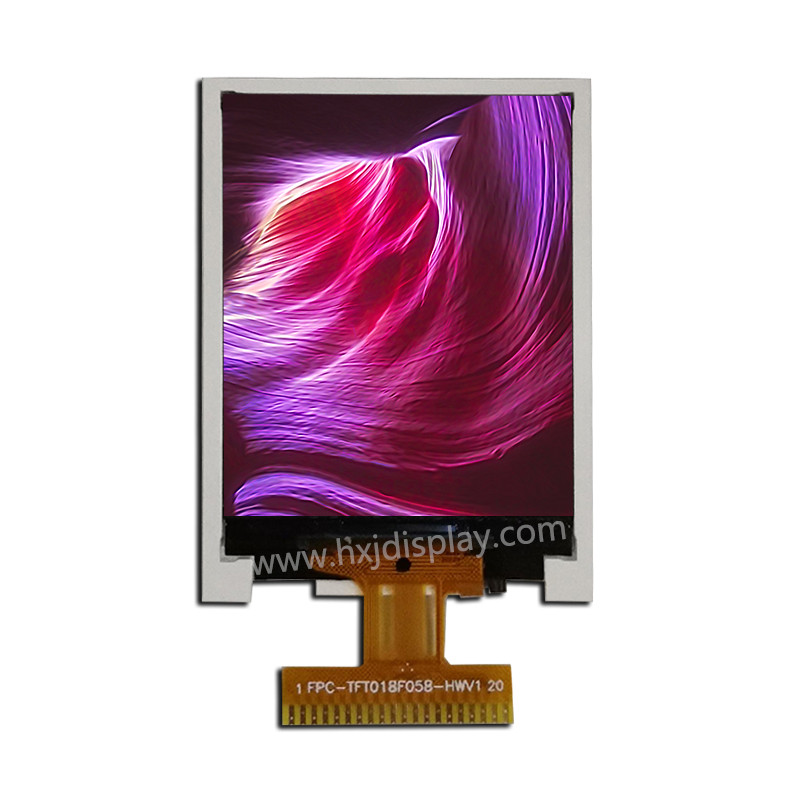

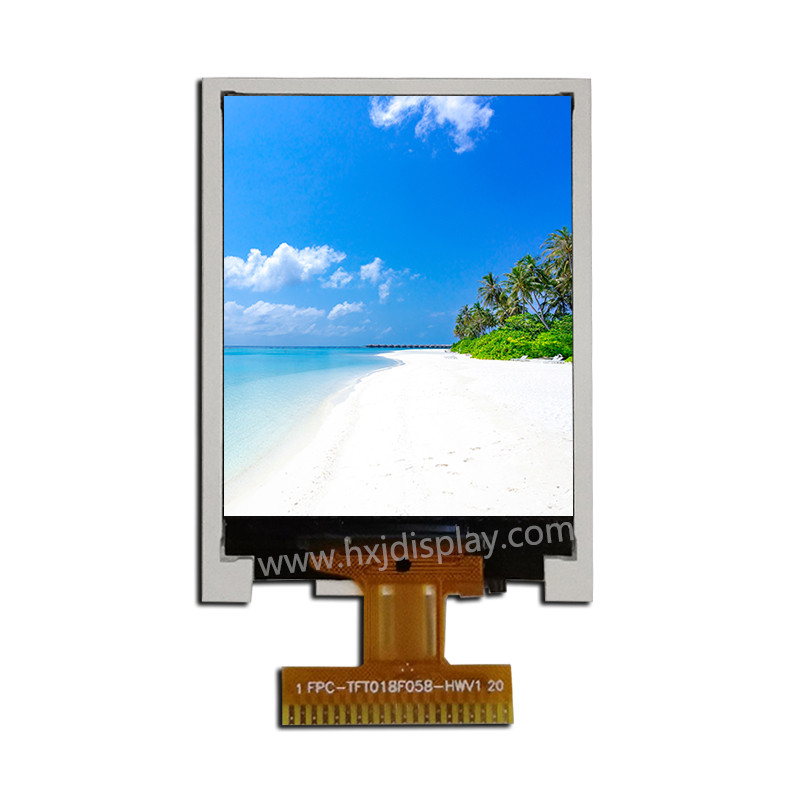

QQVGA: High quality and colorful image.

Marks: This picture is provided from a customer.

20 PIN FPC MCU Interface, plug-in connetion type, pin number and the length of the FPC can be customized.

Rubber integration frame to protect the screen from damage.

Backside with 3m tape.

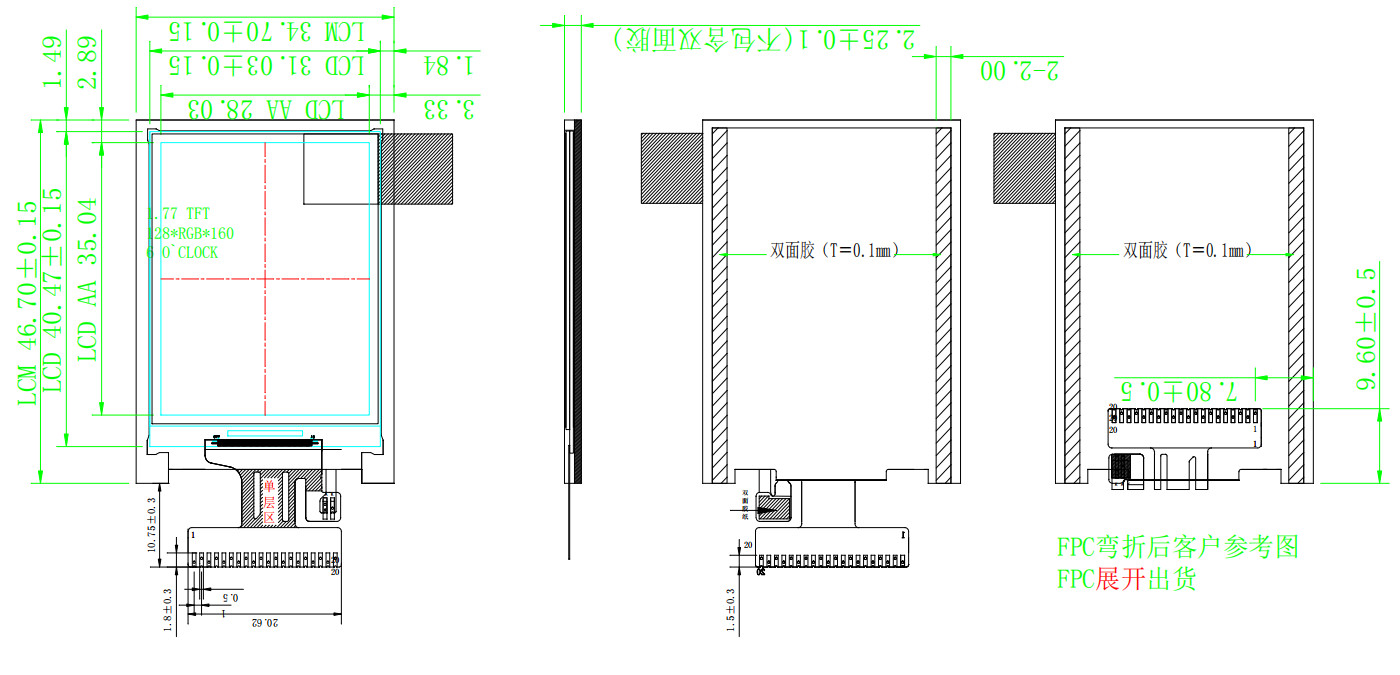

Mechanical Diagram

1.77 inch 128X160 QQVGA TFT LCD GC9106 20 pin MCU8BIT-01 (5)

Kindly contact us to get the datasheet
