TFT018F025

1.77 inch 128X160 QQVGA TFT LCD 24PIN MCU Interface

Keyword

Essential details

● Supplier Type: original manufacturer

● Place of Origin: Guangdong, China

● Brand Name: HXJ

● Size: 1.77 inch / 1.8 inch TFT

● lcd Type: TN TFT Transmissive

● Resolution: 128×160

● Viewing Angle: TN 12 O’clock

● Outline Dimension: 34.7(H)x46.7(V)x2.25(D)

● Active Area: 28.03×35.04

● Driver IC: ST7735

● Pin number: 24

● Interface: MCU

● Touch panel: Support Customization

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Product Name	TFT018F025
Display Mode	1.77 inch TN TFT, 262K color transmissive, normally white
Driver IC	ST7735P3
Viewing Direction	12 o’clock
Luminance	350 cd/m2 typ.
Operating Temperature:	-20°- +70°
Storage Temperature:	-30°- +80°
Outline dimension(mm)	34.7(H)x46.7(V)x2.25(D)
AA area(mm)	28.03×35.04
Interface Type	24 PIN FPC, MCU Interface

The TFT018F025 is a high-quality display screen that measures 1.77 inches and features TN technology.

Its resolution of 128×160 pixels means that it can present visuals in detailed and sharp imagery, making it ideal for a range of applications including gaming, media displays and other forms of graphical interfaces.

This screen also comes with QQVGA technology, improving the sharpness and clarity of the images displayed on it.

The ST7735 IC used in this TFT display enables it to produce bright and vivid colors, making it perfect for displays that require rich, saturated color ranges.

The viewing direction of 12 o’clock ensures clearer, easier to read displays by minimizing any distortions from off-angle viewings.

This TFT display is a superior choice for a range of applications that require high-resolution visuals and clear graphics. It is an ideal choice for products such as smartwatches, portable media players, handheld gaming devices and other small-screen electronic gadgets.

Whether you need a small display for gaming, interface or other graphical purposes, this screen is sure to provide you with excellent visual quality, clarity and comfort. Additionally, its compact size makes it ideal for use in space-constrained products and devices.

QQVGA: High quality and colorful image.

Marks: This picture is provided from a customer.

24 PIN FPC MCU Interface, plug-in connetion type, pin number and the length of the FPC can be customized.

Rubber integration frame to protect the screen from damage.

Backside with 3m tape.

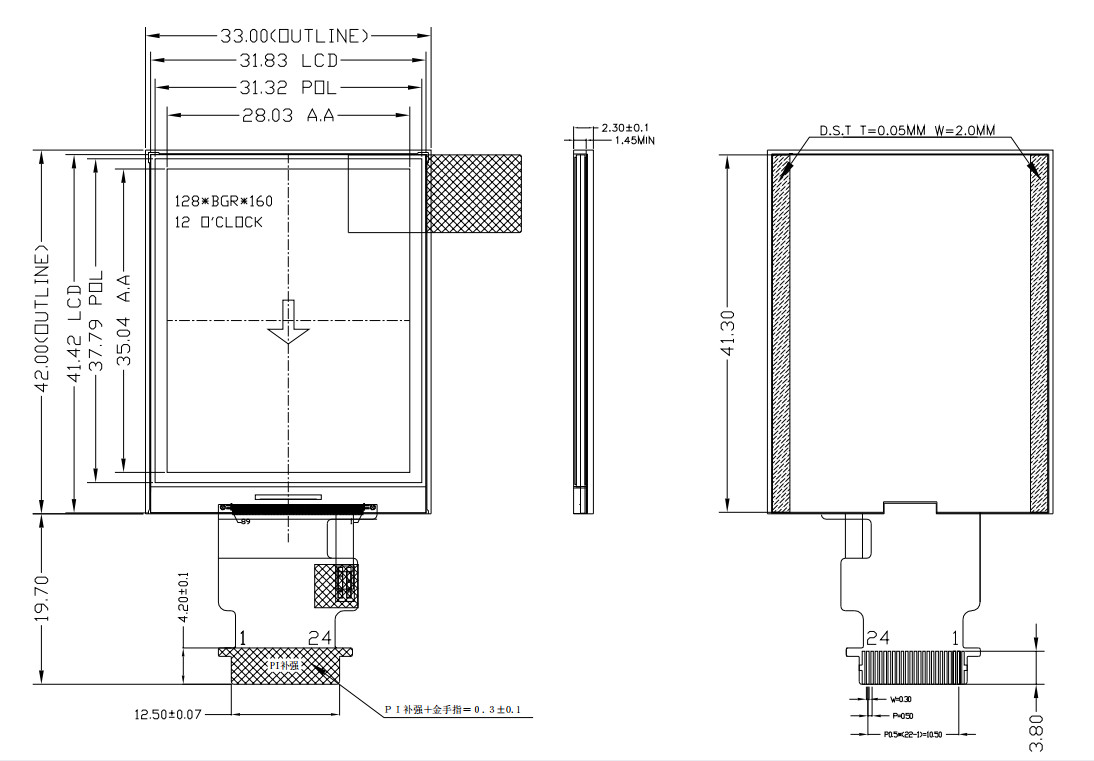

Mechanical Diagram

1.77 inch 128X160 QQVGA TFT LCD 24PIN MCU Interface-01 (2)

Kindly contact us to get the datasheet
