HP12864-12

1.54 inch 128×64 oled display panel 24 pin

Keyword

Product Description
Mechanical Diagram
Production Advantages

Product Description

Module No.:	HP12864-12-KPWG24P154
Structure:	COG
Screen Size:	1.54 inch
Number of Dots:	128 x 64
Color:	Monochrome (White)
Module Size:	42.04 x 27.22 x 1.41 mm
Viewing Area:	37.052 x 19.516 mm
Active Area:	35.052 x 17.516 mm
Driver IC:	SPD0301ZD
Interface:
Connector:	FPC
Pin Number:	24
Operating Temperature:	-40～+70℃
Storage Temperature:	-40～+85℃

Interface Pin Description

PIN	SYMBOL	PIN	SYMBOL	PIN	SYMBOL	PIN	SYMBOL
1	NC(GND)	8	BS2	15	D2	22	VCOMH
2	VLSS	9	CS#	16	D3	23	VCC
3	VSS	10	RES#	17	D4	24	NC(GND)
4	NC	11	D/C#	18	D5
5	VDD	12	R/W#	19	D6
6	VBAT	13	E/RD#	20	D7
7	BS1	14	D0	21	IREF

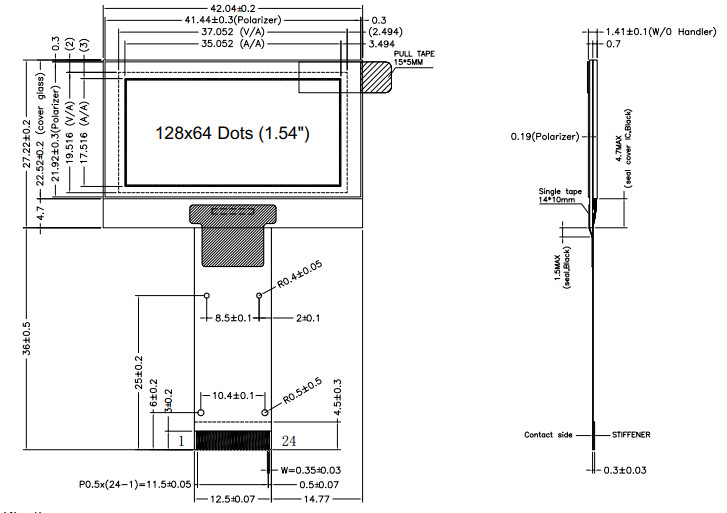

Mechanical Diagram

1.54 inch 128x64 oled display panel 24 pin (2)

Product Show-LCD Panel

1.54 inch 128x64 oled display panel 24 pin (3)
