HP12864-09

0.96 OLED small OLED Display

Keyword

Product Description
Mechanical Diagram
Production Advantages

Product Description

Module No.:	HP12864-09-KSBG30P096
Structure:	COG
Screen Size:	0.96 inch
Number of Dots:	128 x 64
Color:	Monochrome (Blue)
Module Size:	24.74 x 16.90 x 1.42 mm
Viewing Area:	22.74 x 11.86 mm
Active Area:	21.74 x 10.86 mm
Driver IC:	SSD1315Z
Interface:	I2C// 3/4-wire SPI
Connector:	FPC
Pin Number:	30
Operating Temperature:	-40～+70℃
Storage Temperature:	-40～+85℃

Interface Pin Description

PIN	SYMBOL	PIN	SYMBOL	PIN	SYMBOL	PIN	SYMBOL
1	NC(GND)	9	VDD	17	NC	25	NC
2	C2P	10	BS0	18	D0	26	IREF
3	C2N	11	BS1	19	D1	27	VCOMH
4	C1P	12	NC	20	D2	28	VCC
5	C1N	13	CS#	21	NC	29	VLSS
6	VBAT	14	RES#	22	NC	30	NC(GND)
7	NC	15	D/C#	23	NC
8	VSS	16	NC	24	NC

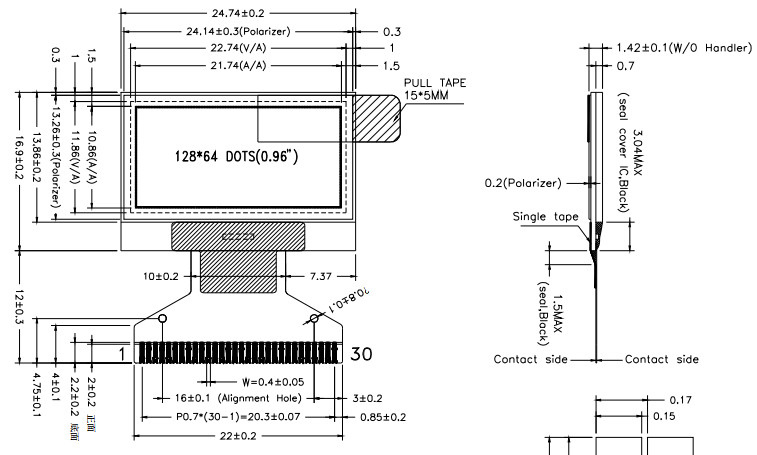

Mechanical Diagram

Application

FAQ

Q1: How long for the delivery time ?

A: 1-3 days for samples;
7-15 days for mass production;
30 days for various modules mass production.

Q2: What’s your factory’s production capacity ?

A: COB Module---100K per month;

TFT---300K per month;

OLED---500K per month.

Q3: Do you offer custom solution?

A: In addition to modifying displays,we offer custom LCD/FPC/PCB/TP,

LED backlight and complete assembly productions.

And we provide technical support on software and hardware.

Q4: What is your after-sale service?

A: Yes,we offer 12 months warranty for our products.
Damage due to misuse,ill treatment and unauthorized modifications and repairs are not covered by our warranty.
But we can provide repair service after your payment.
