• 0.96″ OLED 128×64 oled display
<
>

HP12864-08

0.96″ OLED 128×64 oled display

Keyword

Our Services

1.We are professional LCD module manufacturer in China with precise and advanced equipment.

2.High quality Control with ISO,ROHS and CE and so on.

3.More than 10 years of industry experience and involved main markets all over the world.

4.Dedicated and professional sales team will offer you 24 hours online and immediate service.

5.OEM and ODM support,12 months warranty for all of our products.

6.Our mission is to help our customers achieve success,then fulfill our both dreams.

CONTACTCONTACT NOW

Product Description

Module No.:

HP12864-08-KSWG14P096

Structure:

COG

Screen Size:

0.96 inch

Number of Dots:

128 x 64

Color:

Monochrome (White)

Module Size:

24.74 x 16.90 x 1.42 mm

Viewing Area:

22.74 x 11.86 mm

Active Area:

21.74 x 10.86 mm

Driver IC:

SSD1315Z

Interface:

4-wire SPI

Connector:

FPC

Pin Number:

14

Operating Temperature:

-40~+70℃

Storage Temperature:

-40~+85℃

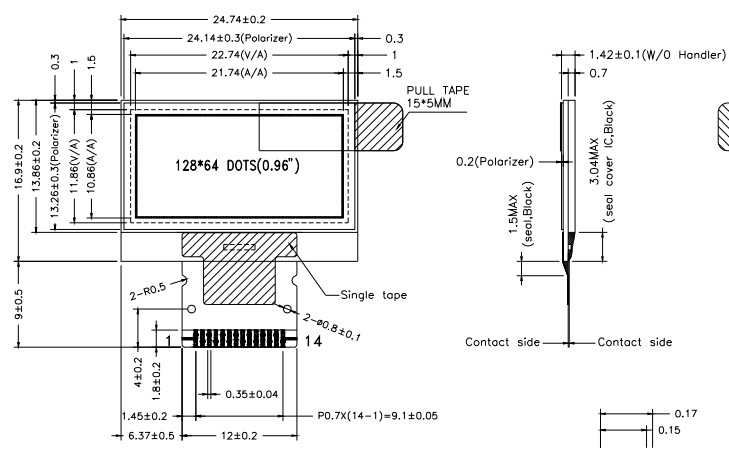

Mechanical Diagram

0.96 OLED 128x64 oled display-01 (1)

Interface Pin Description

0.96 OLED 128x64 oled display-01 (2)

More Other Product

0.96 OLED 128x64 oled display-01 (3)
