HP64128-01

0.96 inch OLED Display 128×64 OLED

Keyword

Our Services

1.We are professional LCD module manufacturer in China with precise and advanced equipment.

2.High quality Control with ISO,ROHS and CE and so on.

3.More than 10 years of industry experience and involved main markets all over the world.

4.Dedicated and professional sales team will offer you 24 hours online and immediate service.

5.OEM and ODM support,12 months warranty for all of our products.

6.Our mission is to help our customers achieve success,then fulfill our both dreams.

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Module No.:	HP64128-01-THWG13P096
Structure:	COG
Screen Size:	0.96 inch
Number of Dots:	64 x 128
Color:	Monochrome (White)
Module Size:	14 x 28 x 1.227 mm
Viewing Area:	11.86 x 22.74 mm
Active Area:	10.86 x 21.74 mm
Driver IC:	SH1107
Interface:	I2C/ 4-wire SPI
Connector:	FPC
Pin Number:	13
Operating Temperature:	-40～+70℃
Storage Temperature:	-40～+85℃

Interface Pin Description

PIN	SYMBOL	PIN	SYMBOL	PIN	SYMBOL	PIN	SYMBOL
1	NC	5	IM1	9	A0	13	NC
2	VPP	6	IREF	10	D0
3	VCOMH	7	CS	10	D1
4	VDD	8	RES	12	VSS

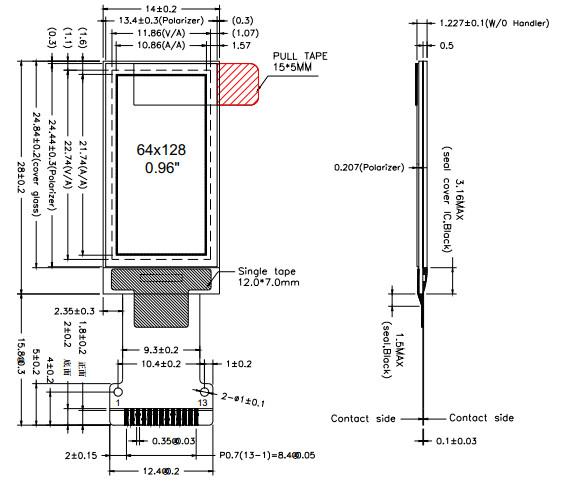

Mechanical Diagram

Production Process

Our Services

Pre-sales service:

1.Our team design and make solutions based on different requirements from different customers.

2.We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.

After-sales services:

1. We provide customer service through Skype, phone or email,supply you video or drawing to solve problems.

2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.

3. We have professional engineer to keep fast reply.

FAQ

Q1: How does your factory do regarding quality control?

A1: Quality is the priority. We always attach great importance to quality controlling from
the start to end.Our factory has gained ISO9001,RoHS,CE certification.

Q2: Can I get customized product?

A2: For sure that OEM service is available.

Q3: Where is your factory located? How can I visit there?

A3: We have two factories, one is in Shenzhen,the other in Jiangxi Province.Welcome to visit our factory.We could pick you up in Shenzhen Bao'an Airport,or Shenzhen North Railway Station.

Q4: Can I get some samples to test? Or how to customize my own specifications?

A4: For standard items, Free Sample is available.

As for customized items, just contact us for details!

Production Advantages

1.High quality. Perfect quality management system, stable quality of raw materials, product quality rate of 98% or more
2.On-time delivery. Ensure that orders are delivered on time and in quantity
3.Full supply chain resources. High demand of raw materials, quality assurance of brand suppliers, perfect management system, ensuring the demand of raw material supply;
4.Constantly optimized manufacturing cost. High degree of automation of production line, comprehensively improve per capita work efficiency, stable product quality, and significantly reduce enterprise production and manufacturing costs; to achieve win-win and value-added mutual enjoyment with customers and employees.
