HP12832-02

0.91 OLED SSD1306

Keyword

Our Services

Make your purchasing job easier

OEM service quicker Sales and Operation staff have enough experience to follow up order request,shipment,finance and service Good supply chain to support on-time production and delivery

Customer follows up and cares

Sales team of 8 members,with two sales managers,6 members for operation support to order details confirm,shipment,and customer care follow up.

After-sales service support

All products supply warranty to all the products of mass-shipment dated from the invoice date.Customer just needs to send good back to us in China and we will repair or replace a new one and deliver to customer’s office at our cost.

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Module No.:	HP12832-02-TSWG12P091
Structure:	COG
Screen Size:	0.91 inch
Number of Dots:	128 x 32
Color:	Monochrome (Blue)
Module Size:	30.0 x 11.50 x 1.227 mm
Viewing Area:	24.384 x 7.584 mm
Active Area:	22.384 x 5.584 mm
Driver IC:	SSD1306BZ
Interface:	4 wire serial SPI
Connector:	FPC
Pin Number:	12
Operating Temperature:	-40～+70℃
Storage Temperature:	-40～+85℃

Interface Pin Description

PIN	SYMBOL	PIN	SYMBOL	PIN	SYMBOL	PIN	SYMBOL
1	VBAT	4	VDD	7	D/C#	10	IREF
2	VSS	5	C/S#	8	SCLK	11	VCOMH
3	VSS	6	RES#	9	SDIN	12	VCC

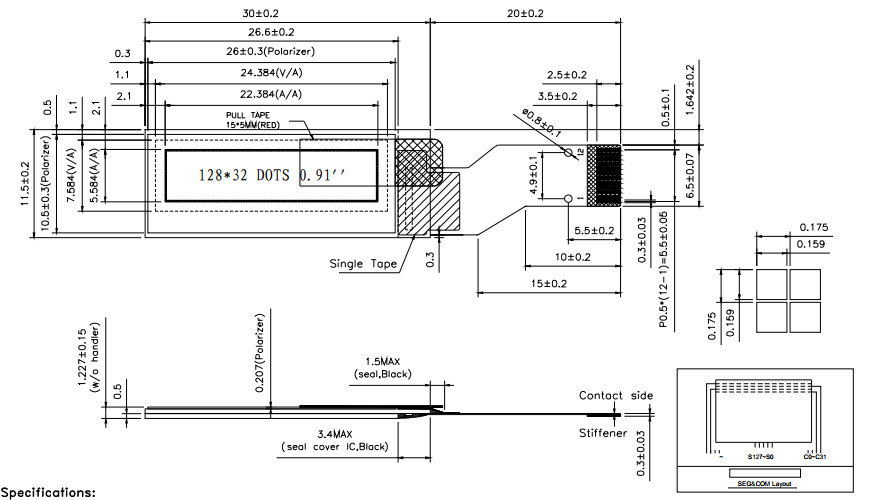

Mechanical Diagram

Order Processing

Why Choose Us

We established in 2008,have 11 Years of Production Experience,we can design,develop and produce customized LCD,LCM and B/L.Our current product range is mono LCD(such as TN, HTN, STN, FSTN,VA) and mono LCD Module,TFT,OLED.
Our main product is small and medium-sized LCD display and its extension related products. We develop rapidly,now we have two LCD factory in China.

* Own LCD glass production line

* 5 COB module production line

* 7 COG automatic lines and one semi-automatic line

* TN,HTN,STN,FSTN,DFSTN,VA LCD and TFT LCD,OLED types available

* Technical support and fast delivery time

1.All products are for real description,when you buy our lcd,we will provide detailed instructions and examples of procedures.If you need us to provide technical support in the process of development,you can contact us at any time.

2.Before shipment,we will do the aging test and 100% visual and electronic logging,you can buy trustingly.

3.We guarantee that our all products supply for a long time,if the product upgrades,we will notify users in advance,and upgrade the product can compatible with the old product.

4.The warranty period of the LCD is 12 months.

Production Advantages

1.High quality. Perfect quality management system, stable quality of raw materials, product quality rate of 98% or more
2.On-time delivery. Ensure that orders are delivered on time and in quantity
3.Full supply chain resources. High demand of raw materials, quality assurance of brand suppliers, perfect management system, ensuring the demand of raw material supply;
4.Constantly optimized manufacturing cost. High degree of automation of production line, comprehensively improve per capita work efficiency, stable product quality, and significantly reduce enterprise production and manufacturing costs; to achieve win-win and value-added mutual enjoyment with customers and employees.
