HP12832-03

0.91 inch OLED Display White/Blue color 128×32

Keyword

Our Services

1. And if it is necessary for you to have technical support in the process of development, we can provide it for you at any time.

2. Good quality and credit is the soul of our company. Before shipment, we will guarantee that the products will be done the aging test and

100% of the visual and electric logging.

3. When the product upgrades, we will notify the related clients in advance, and the upgrading product can be perfectly compatible with the old ones.

4. The warranty period of the product is 12 months.

We have focused on micro LCD TFT LCM panel for 14 years.
What can we offer?
a)Small orders will be acceptable.
b)High quality, durable-competitive pricing.
c)Mass production leadtime would be guaranteed.
d)Free technical services will be provided.
e)Each order will have enough spares.

Pls feel free to contact,my friend!

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Module No.:	HP12832-03-TSWG15P091
Structure:	COG
Screen Size:	0.91 inch
Number of Dots:	128 x 32
Color:	Monochrome (White)
Module Size:	30.0 x 11.50 x 1.227 mm
Viewing Area:	24.384 x 7.584 mm
Active Area:	22.384 x 5.584 mm
Driver IC:	SSD1306BZ
Interface:	4-wire SPI
Connector:	FPC
Pin Number:	15
Operating Temperature:	-40～+70℃
Storage Temperature:	-40～+85℃

Interface Pin Description

PIN	SYMBOL	PIN	SYMBOL	PIN	SYMBOL	PIN	SYMBOL
1	C2P	5	VBAT	9	RES#	13	IREF
2	C2N	6	VSS	10	D/C#	14	VCOMH
3	C1P	7	VDD	11	SCLK	15	VCC
4	C1N	8	CS#	12	SDIN

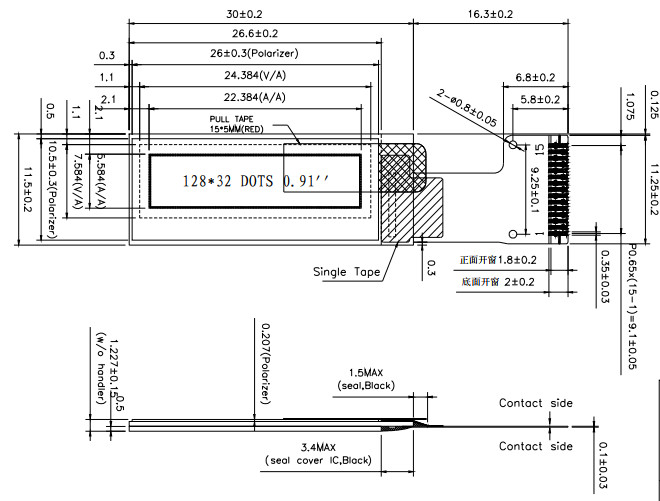

Mechanical Diagram

0.91 inch OLED Display WhiteBlue color 128x32-01 (2)

Applications

0.91 inch OLED Display WhiteBlue color 128x32-01 (3)
