HP12832-06

0.91 inch 128×64 Small OLED Display with RoHS Certificate

Keyword

About Us

Locate in Shenzhen China.

11 years electronics sale experience.

Accept small MOQ order,devote to small business all over the world.

Help you start and expand your business.

CONTACT NOW

Product Description

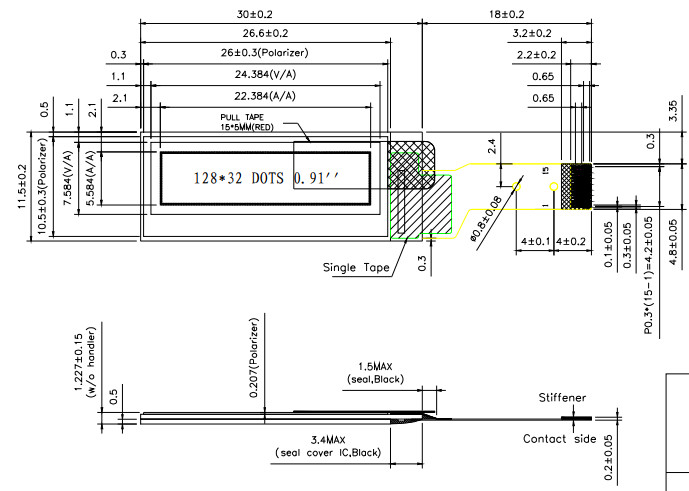

Mechanical Diagram
Production Advantages

Product Description

Module No.:	HP12832-06-TSBG15P091
Structure:	COG
Screen Size:	0.91 inch
Number of Dots:	128 x 32
Color:	Monochrome (Blue)
Module Size:	30.0 x 11.50 x 1.227 mm
Viewing Area:	24.384 x 7.584 mm
Active Area:	22.384 x 5.584 mm
Driver IC:	SSD1306BZ
Interface:	4-wire SPI
Connector:	FPC
Pin Number:	15
Operating Temperature:	-40～+70℃
Storage Temperature:	-40～+85℃

Interface Pin Description

PIN	SYMBOL	PIN	SYMBOL	PIN	SYMBOL	PIN	SYMBOL
1	C2P	5	VBAT	9	RES#	13	IREF
2	C2N	6	VSS	10	D/C#	14	VCOMH
3	C1P	7	VDD	11	SCLK	15	VCC
4	C1N	8	CS#	12	SDIN

Mechanical Diagram
