HP9616-01

0.69 inch Monochrome lcd OLED 96*16 OLED display

Keyword

Our Services

>Ensure the products meet the quality standards

>Reply you within 24 hours

>Provide warm and friendly service and after-sale service

>Highly recommend professional installation

>Suggest and help customer to choose the best projector

>Fast and safety shipment

>Stock for sale

>Long-time supply

>No MOQ and In full range

CONTACT NOW

Product Description
Mechanical Diagram
Production Advantages

Product Description

Module No.:	HP9616-01-TSWG14P069
Structure:	COG
Screen Size:	0.69 inch
Number of Dots:	96 x 16
Color:	Monochrome (White)
Module Size:	26.3 x 8 x 1.227 mm
Viewing Area:	18.86 x 4.78mm
Active Area:	17.26 x 3.18 mm
Driver IC:	SSD1306BZ
Interface:	I2C
Connector:	FPC
Pin Number:	14
Operating Temperature:	-40～+70℃
Storage Temperature:	-40～+85℃

Interface Pin Description

PIN	SYMBOL	PIN	SYMBOL	PIN	SYMBOL	PIN	SYMBOL
1	C2P	5	VDDB	9	RES#	13	VCOMH
2	C2N	6	NS	10	SCL	14	VCC
3	C1P	7	VSS	11	SDA
4	C1N	8	VDD	12	IREF

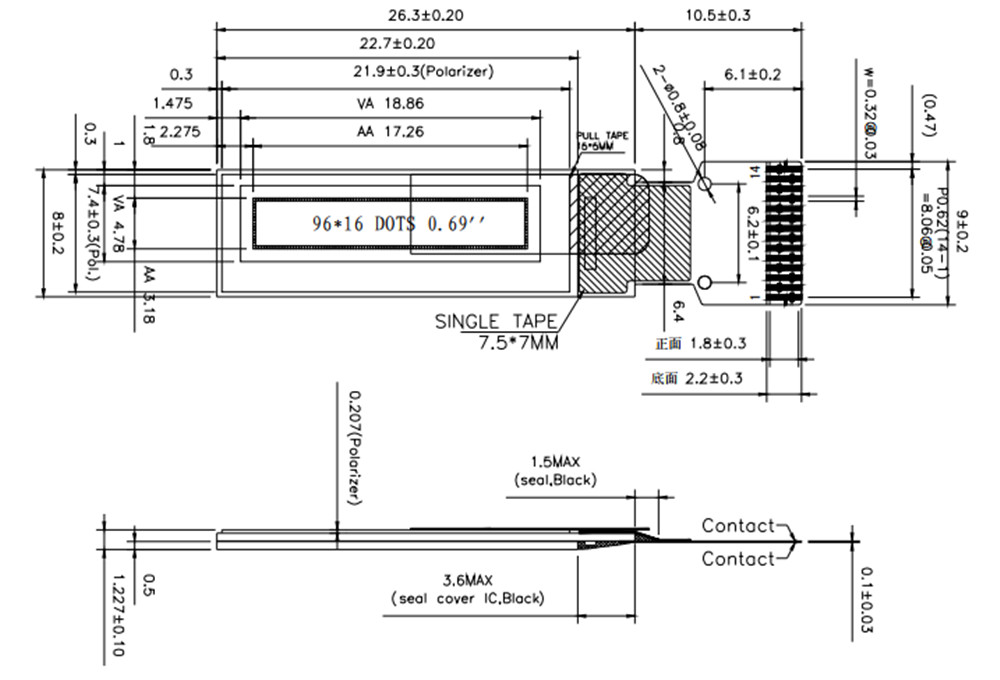

Mechanical Diagram
